bar13 MAPI results

Back to index

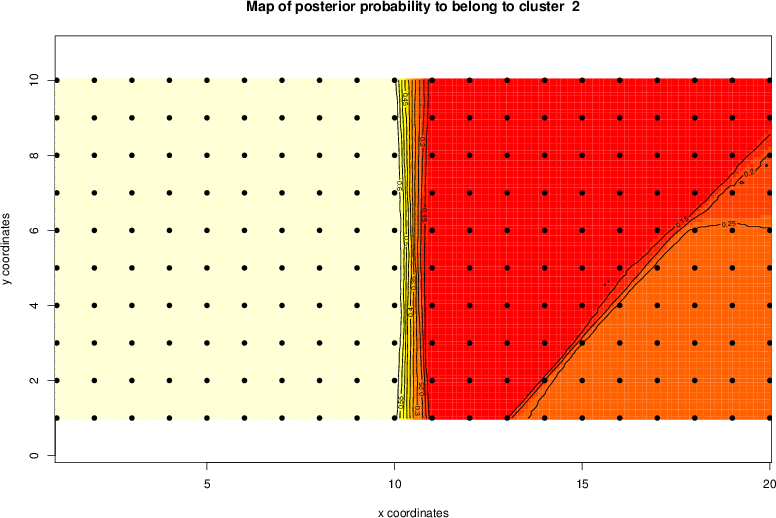

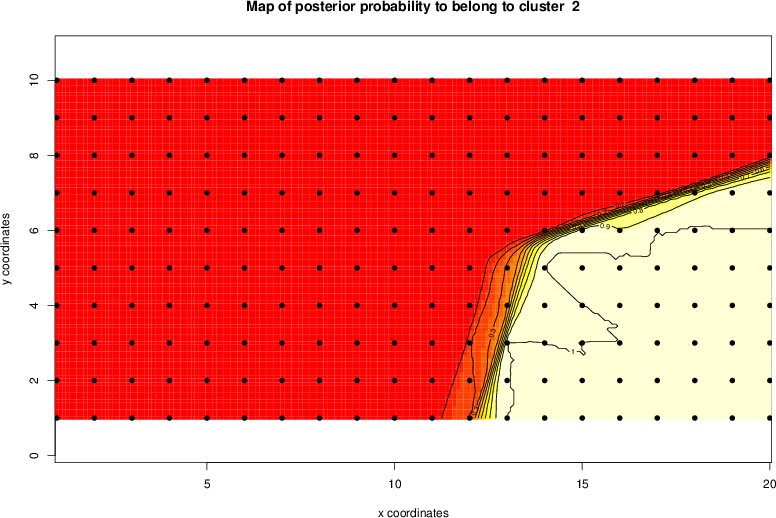

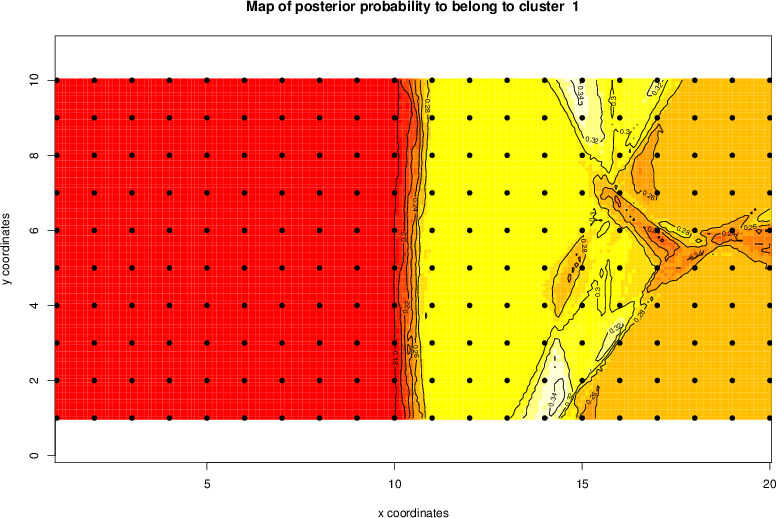

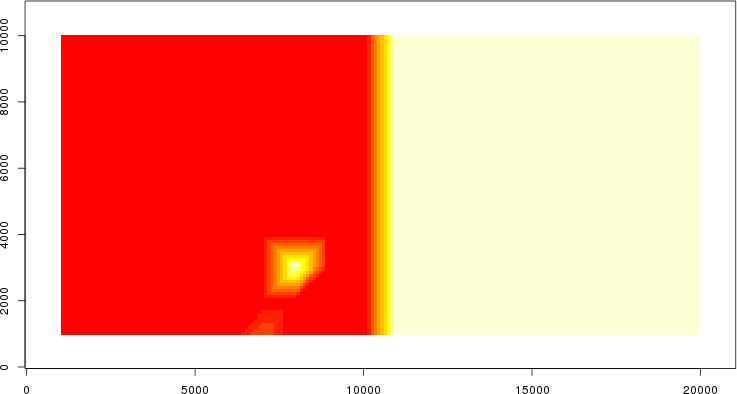

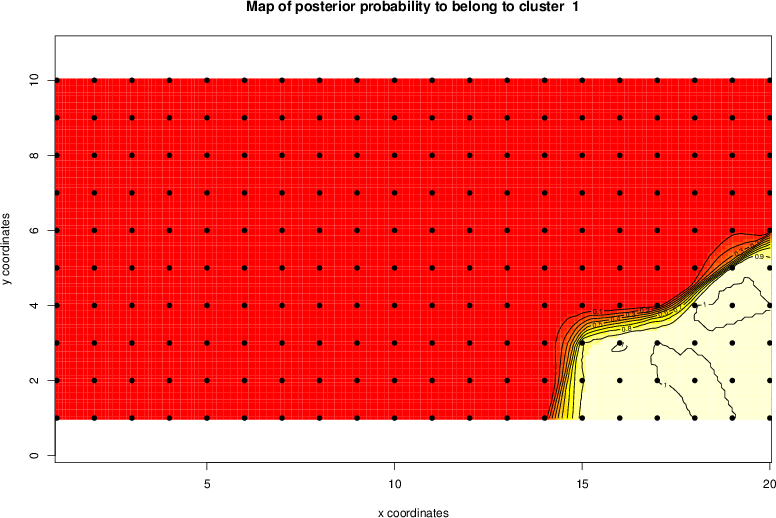

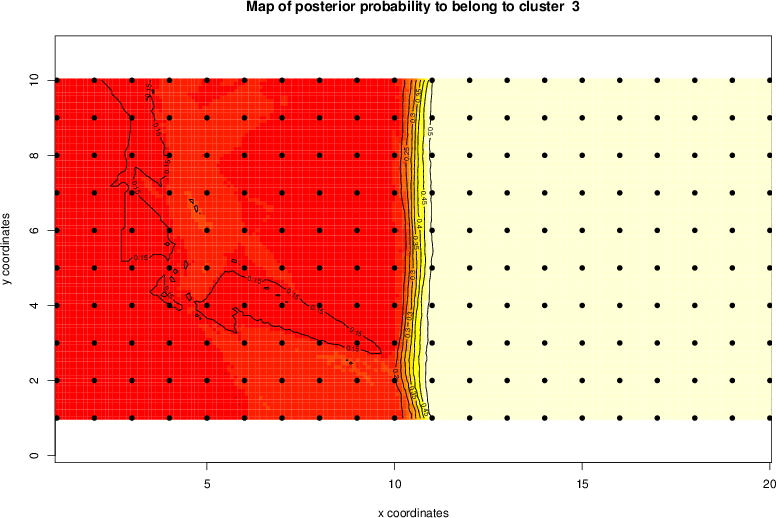

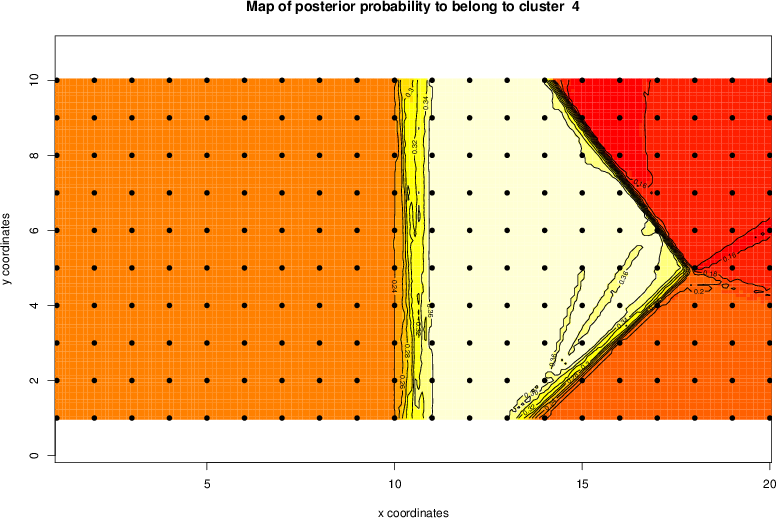

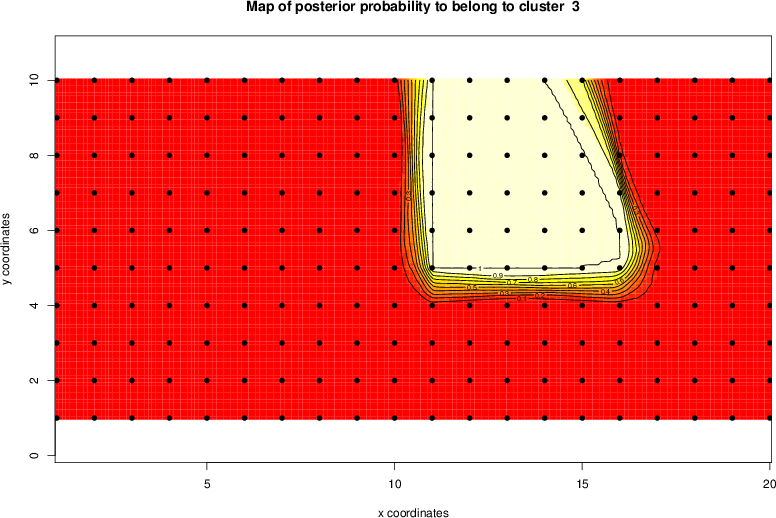

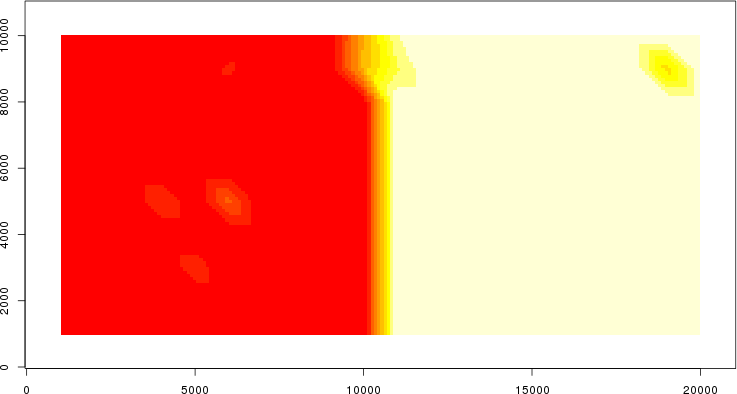

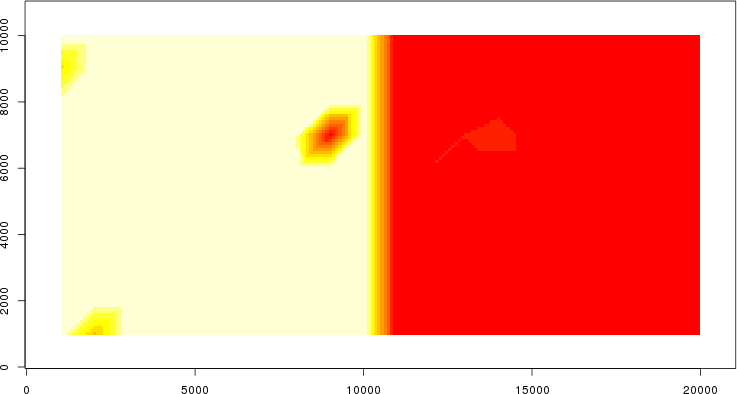

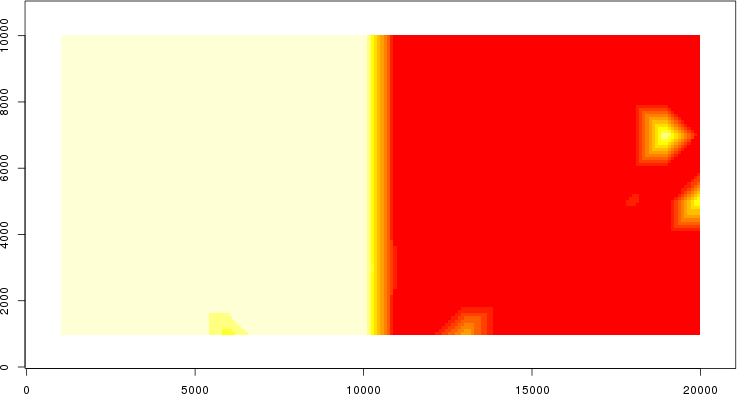

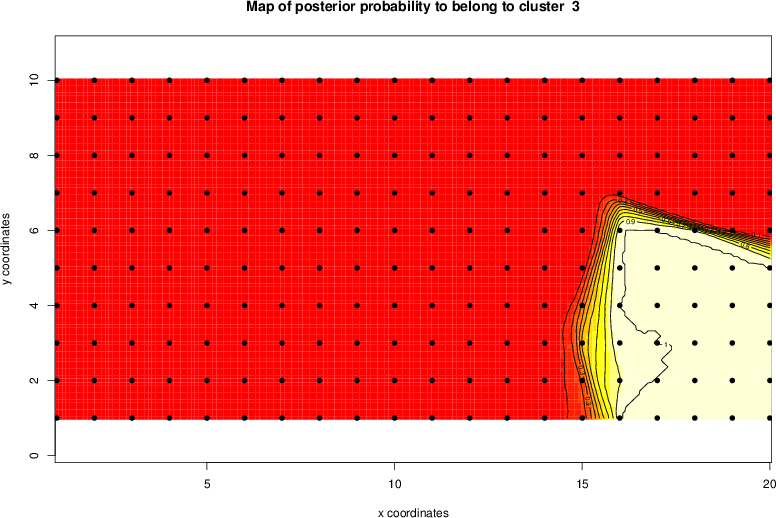

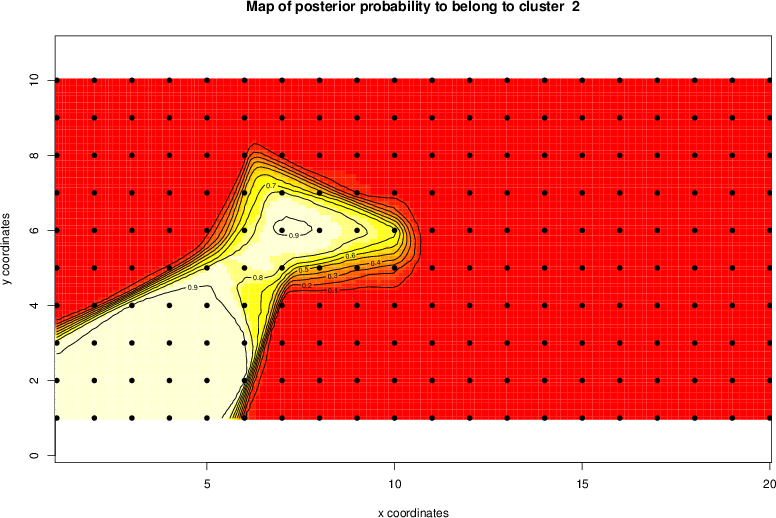

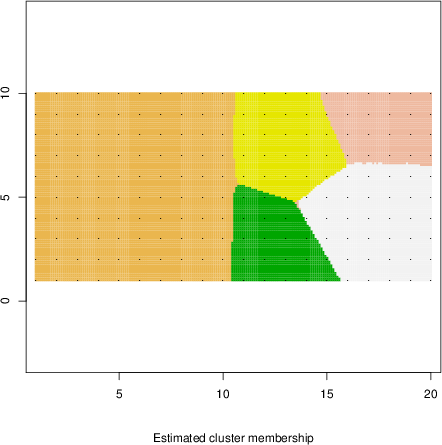

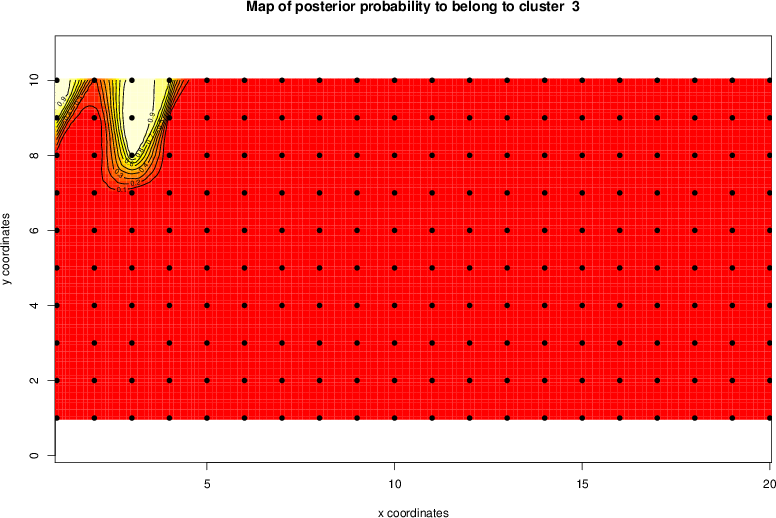

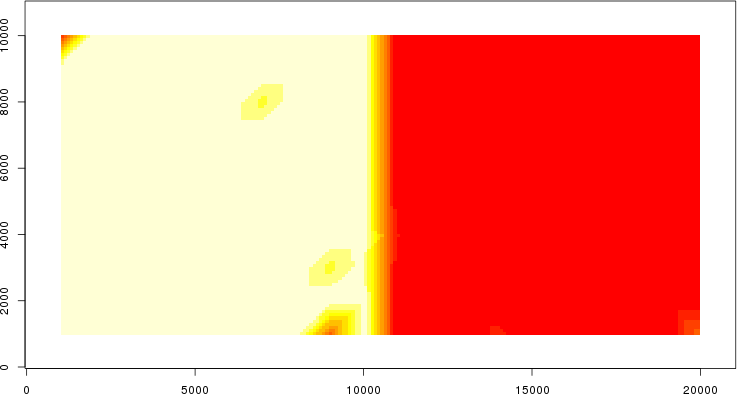

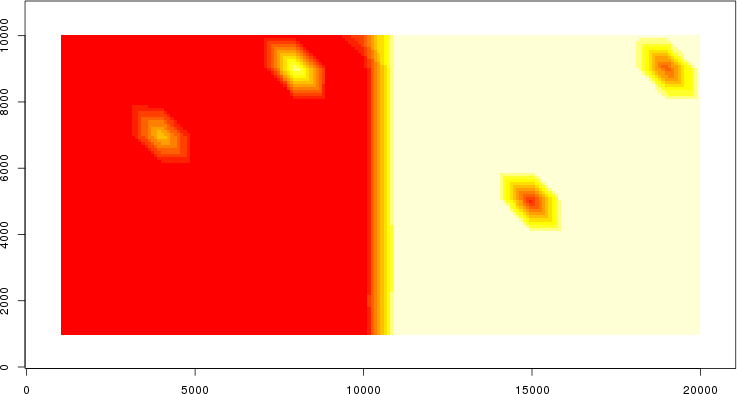

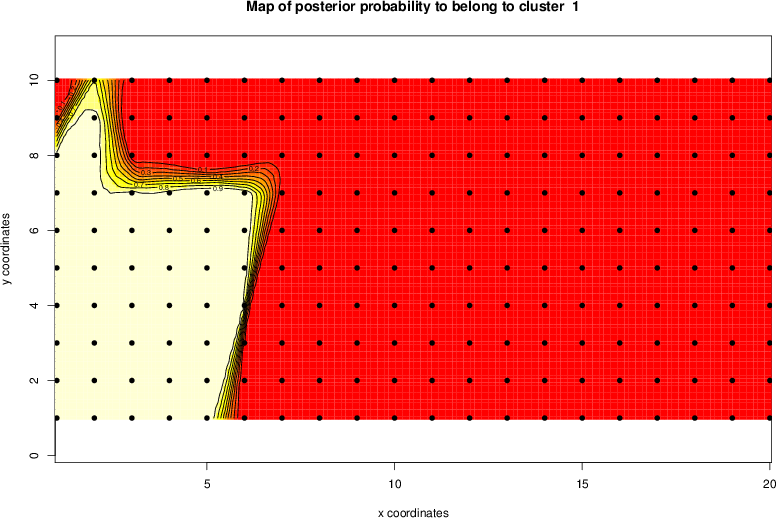

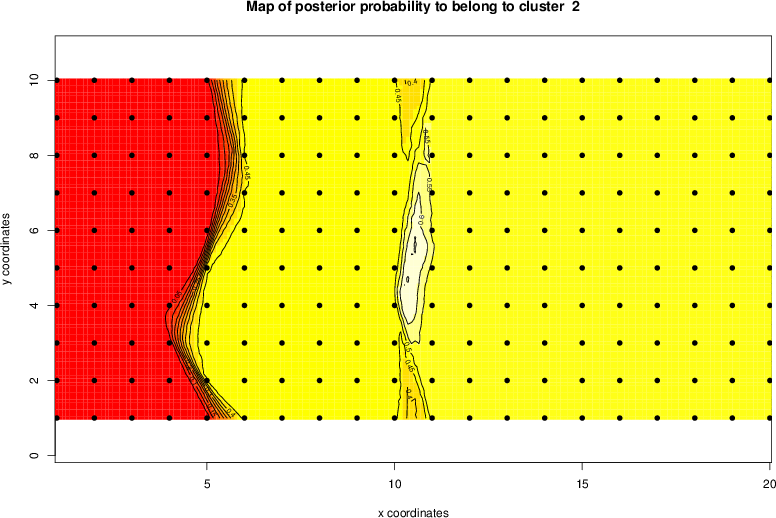

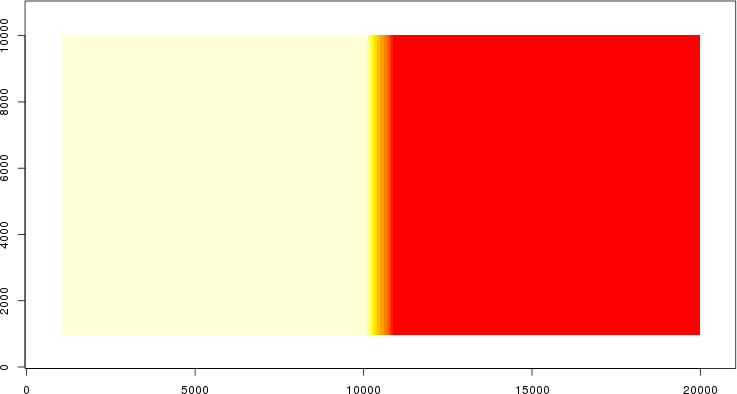

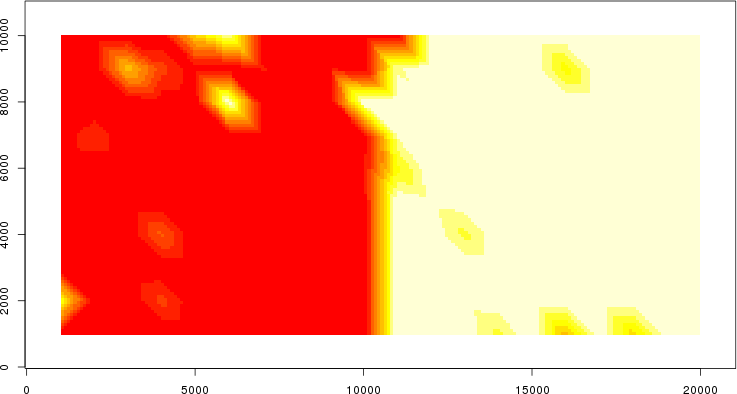

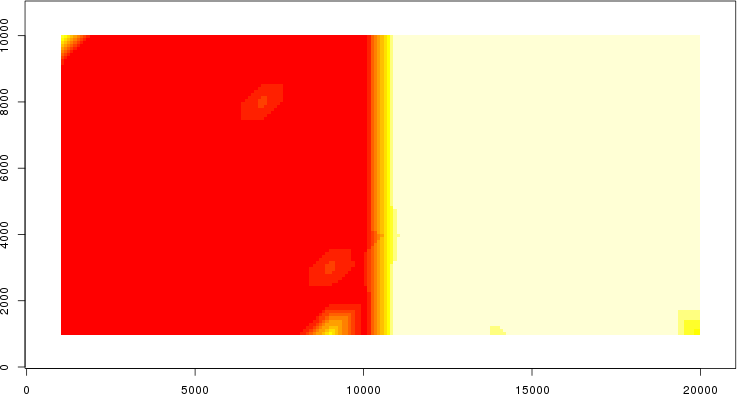

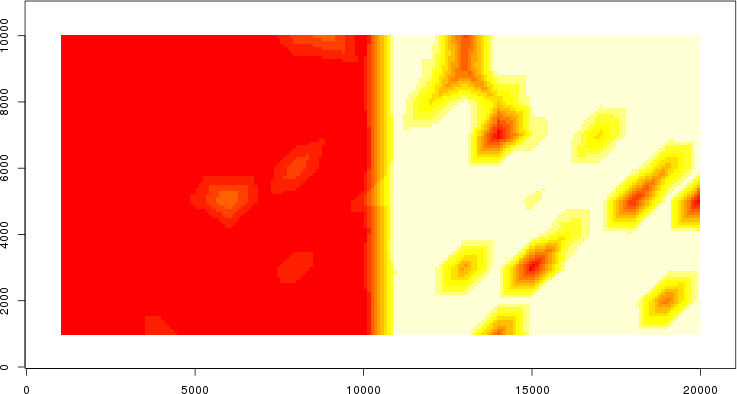

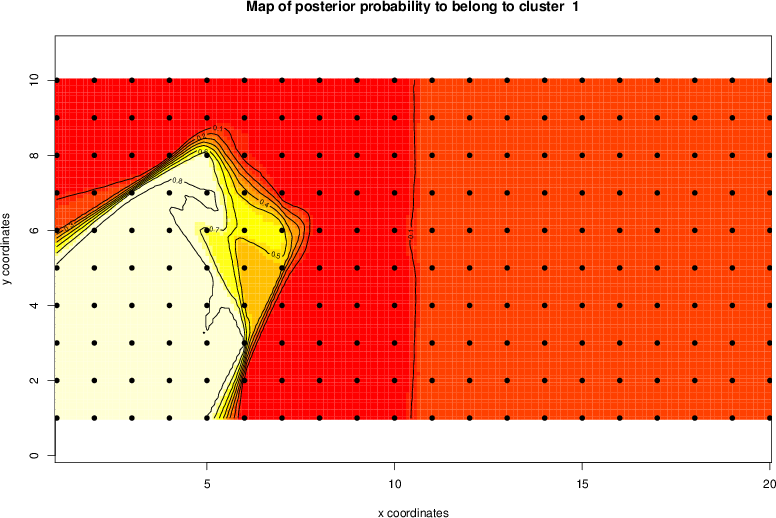

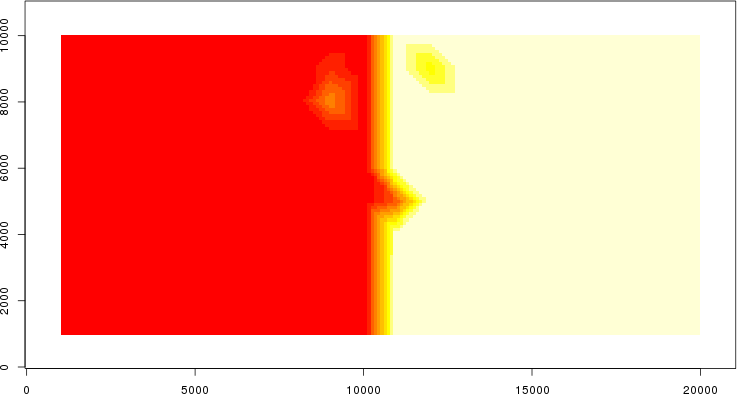

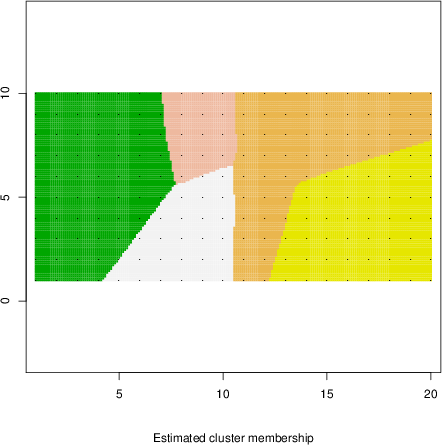

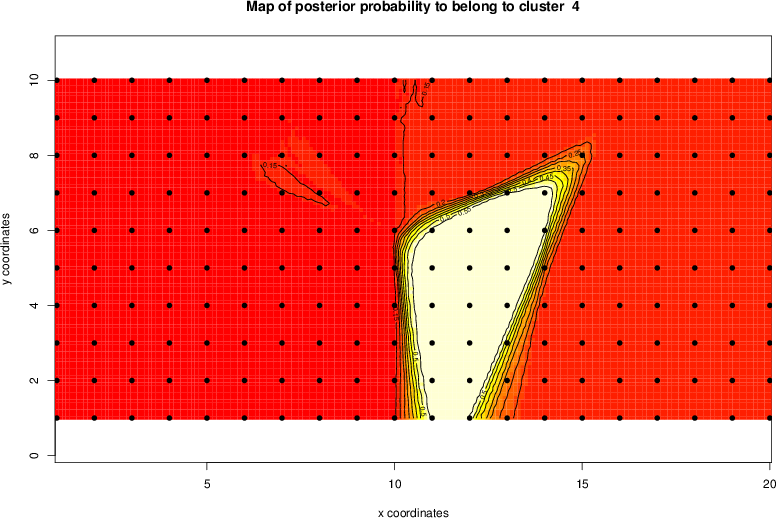

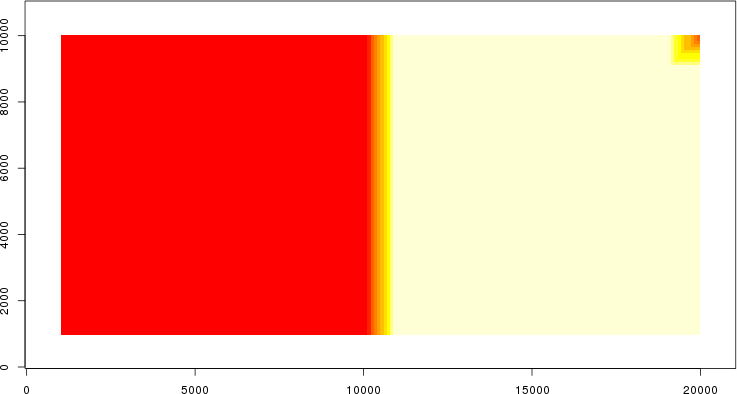

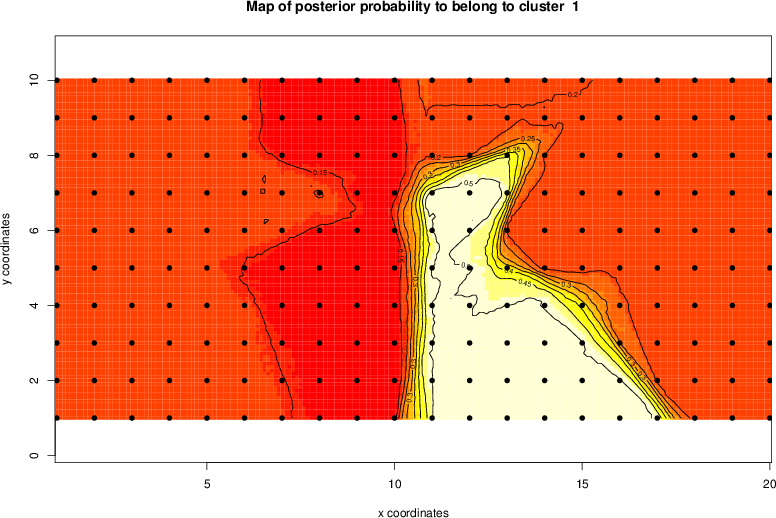

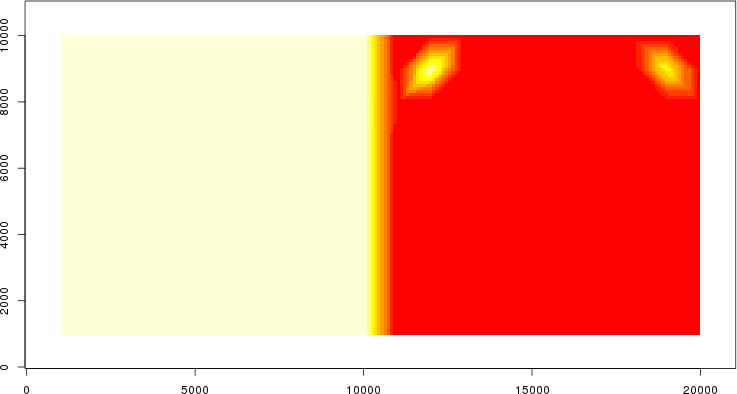

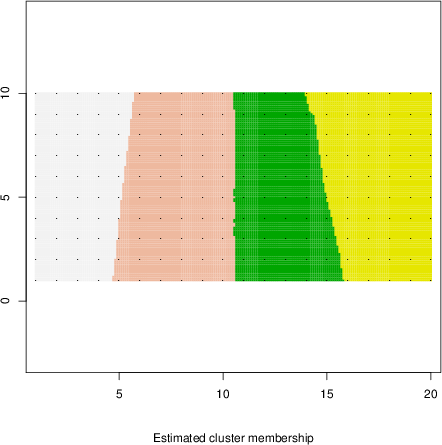

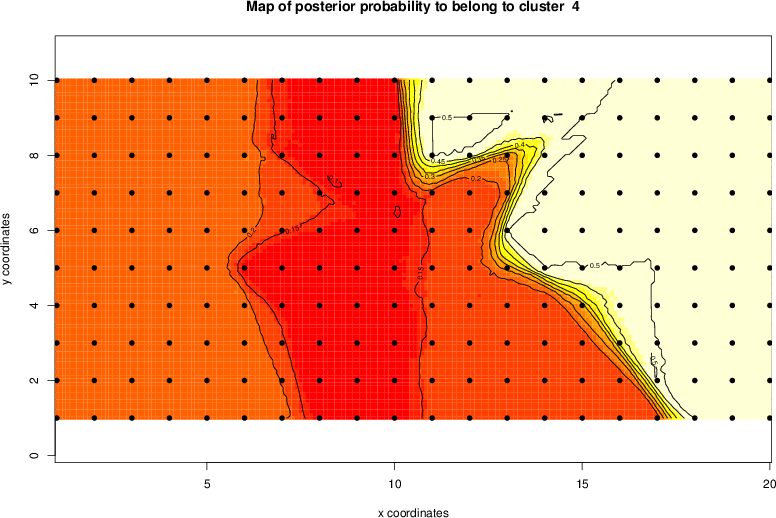

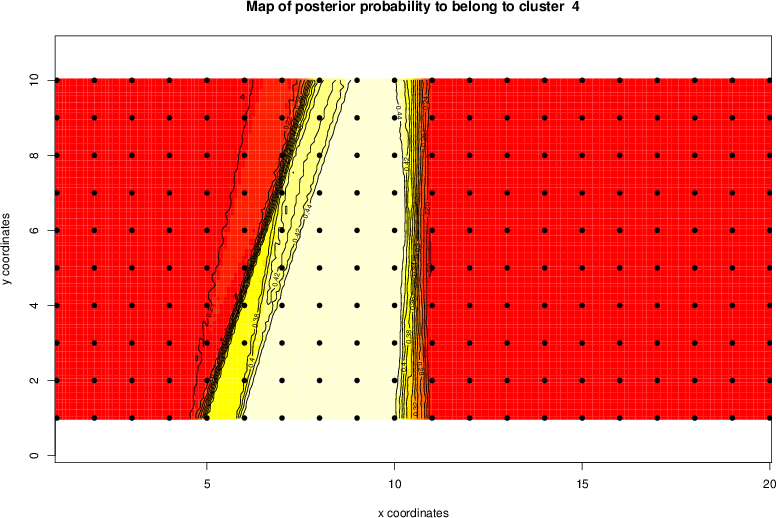

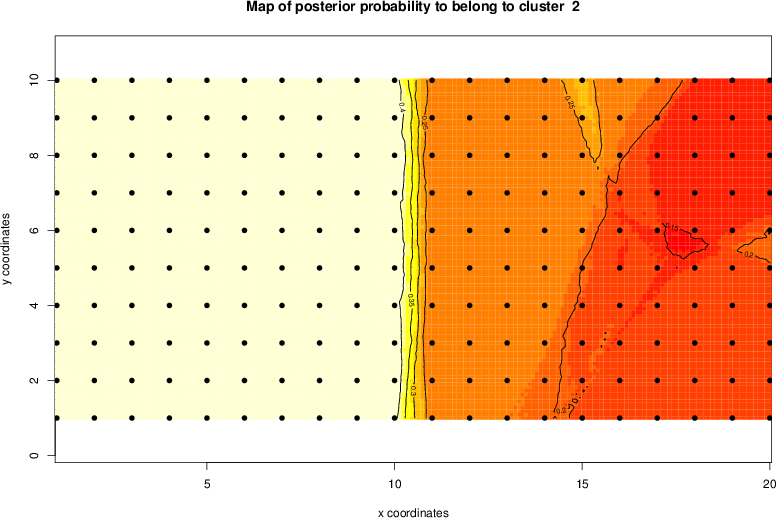

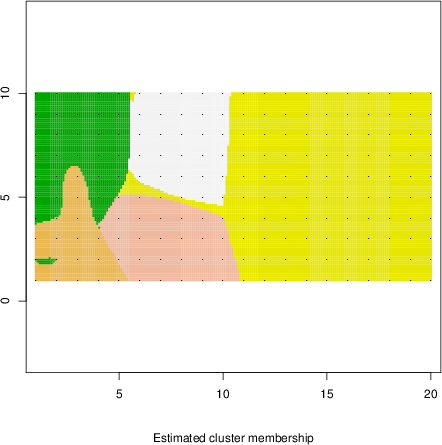

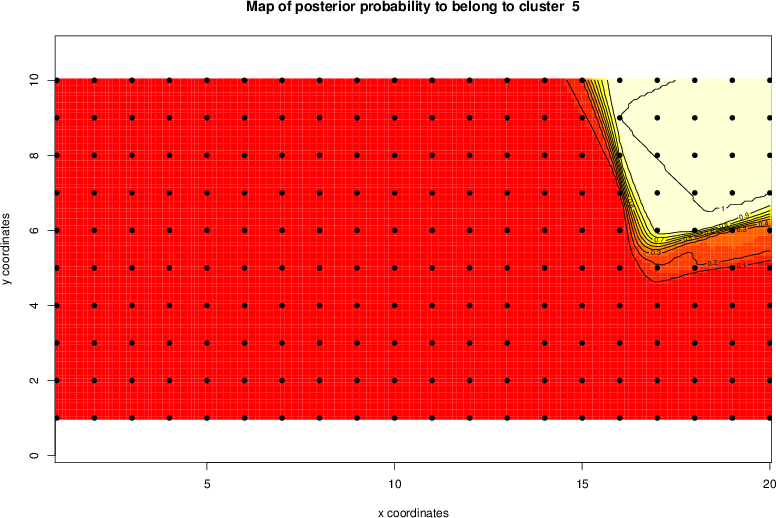

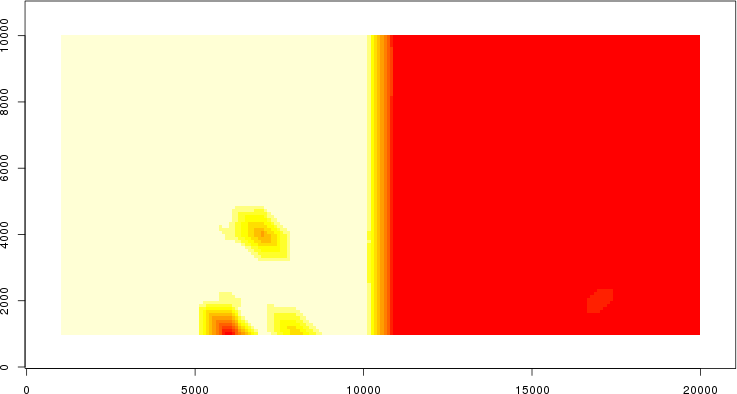

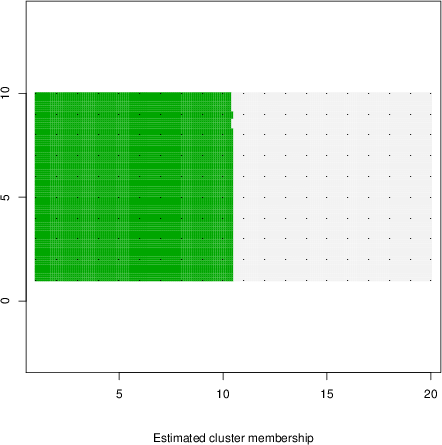

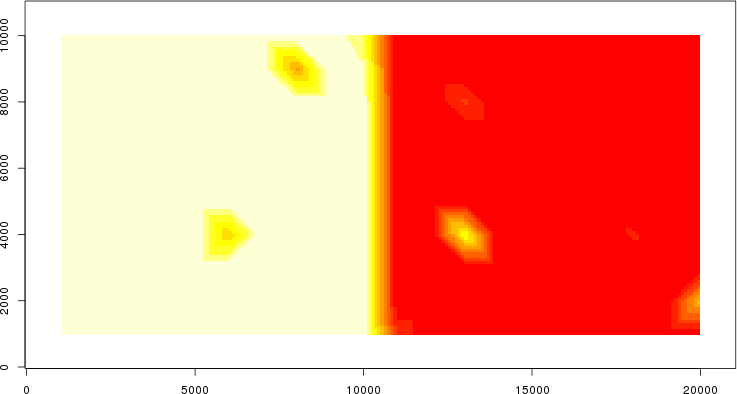

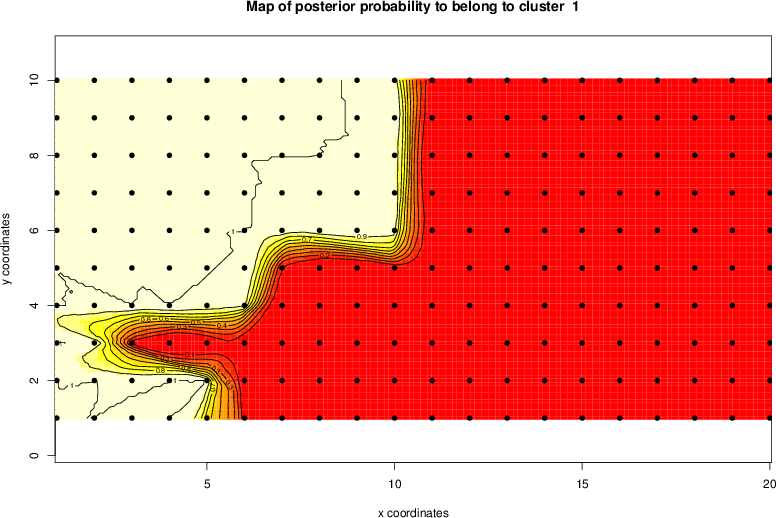

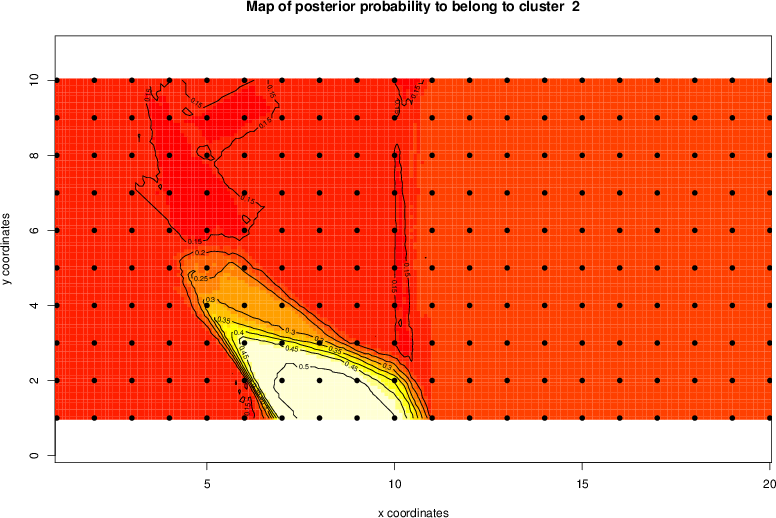

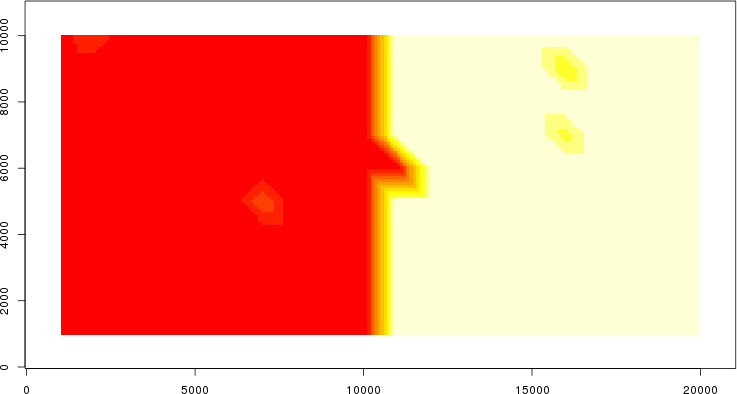

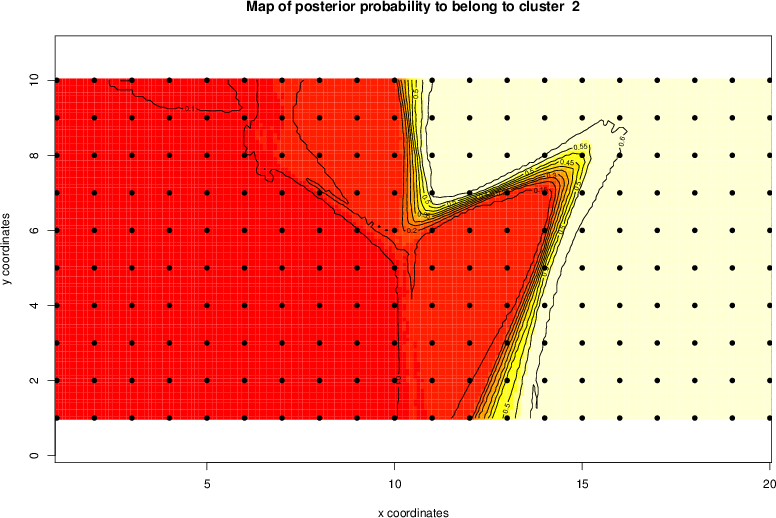

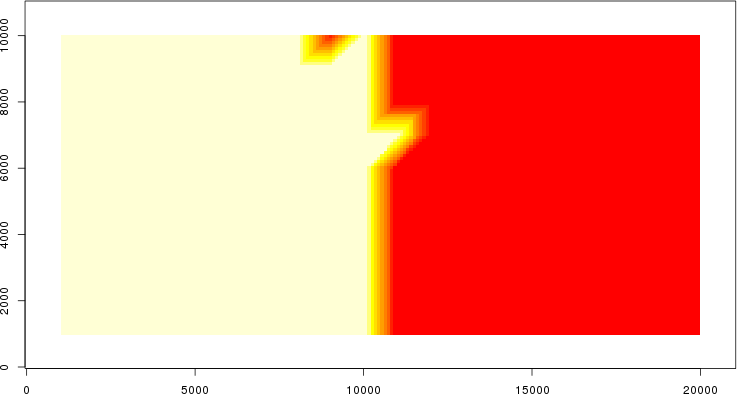

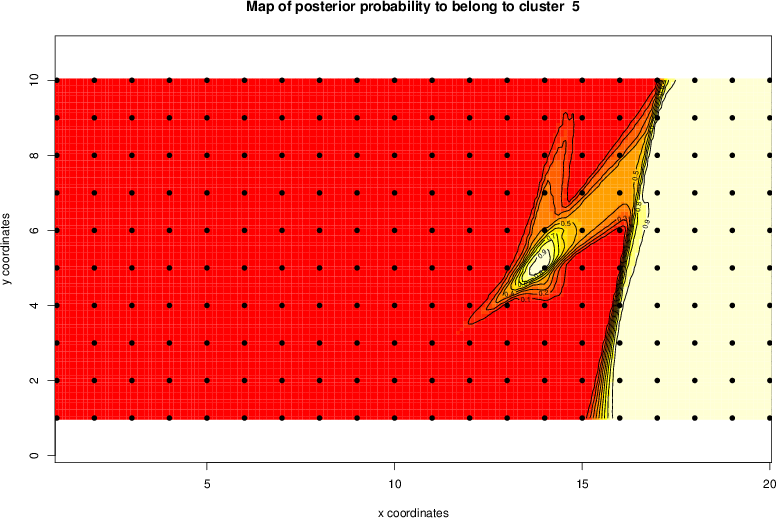

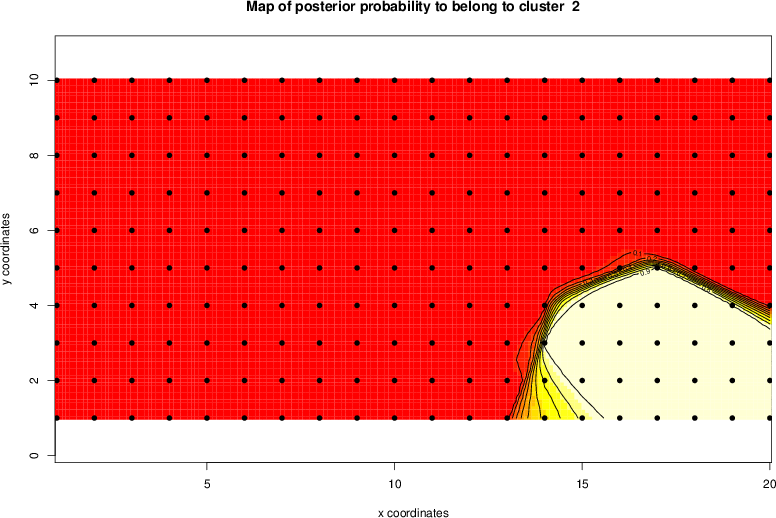

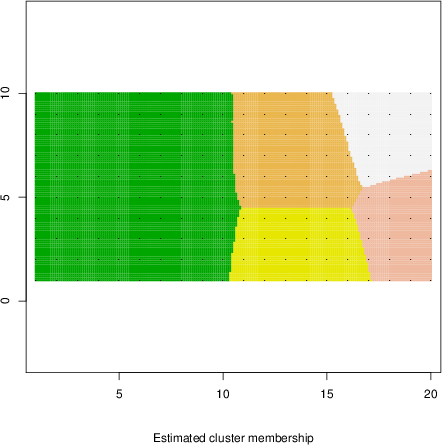

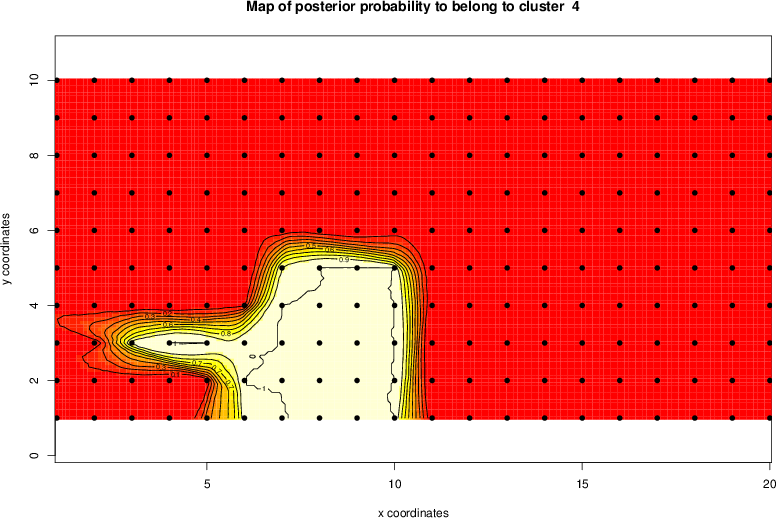

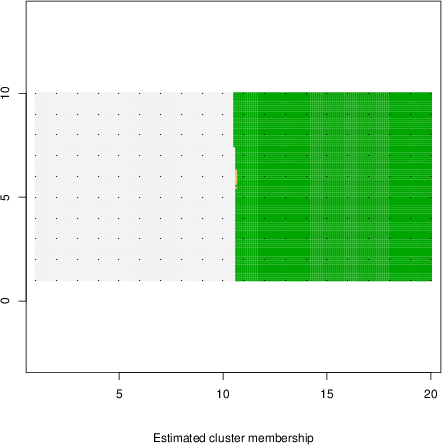

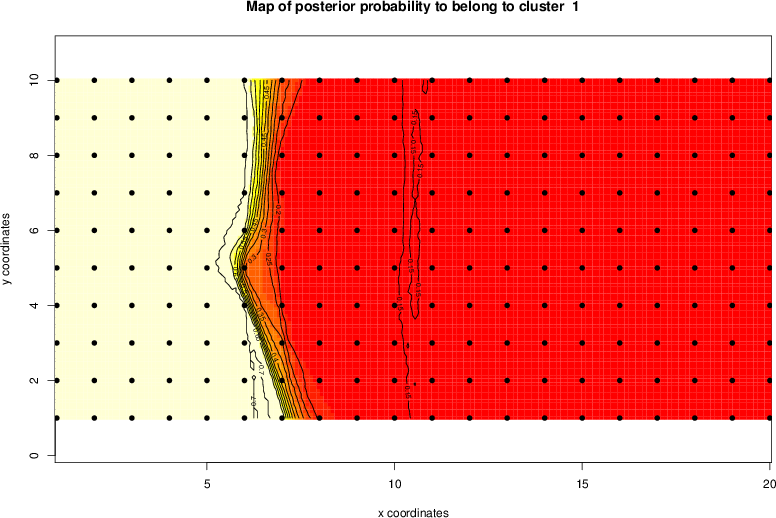

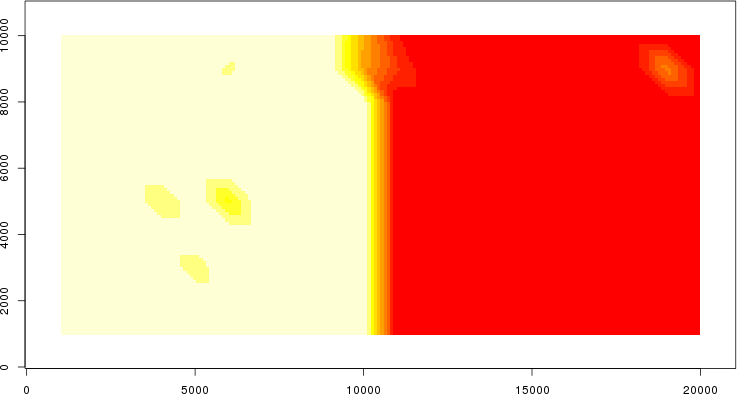

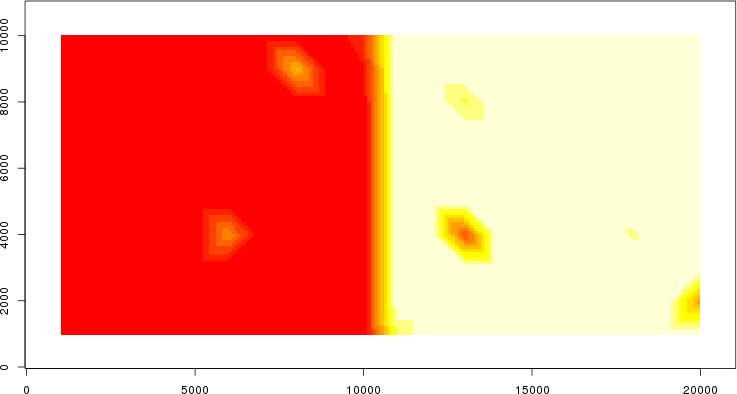

	MAPI		MAPI subsampled		Geneland geographical plots from uncorrelated frequency model.						Geneland geographical plots from correlated frequency model.						DAPC plots when K* is determined based on Ward's minimum variance method						DAPC plots when K* is determined based on a ΔBIC ≥ 6 as an evidence against the model with the higher BIC value
bar13

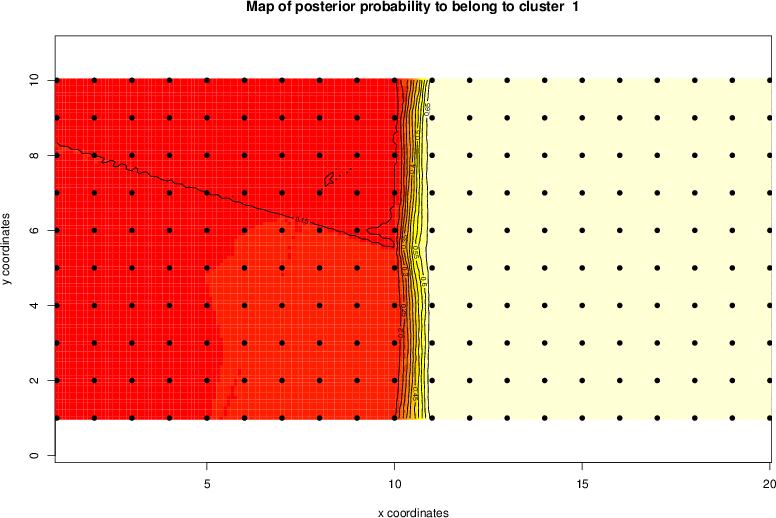

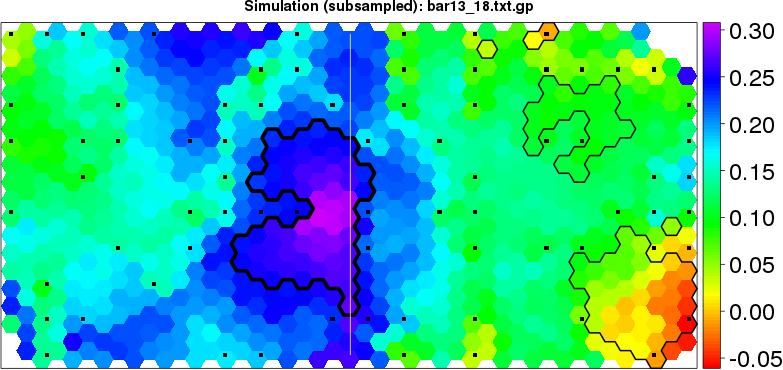

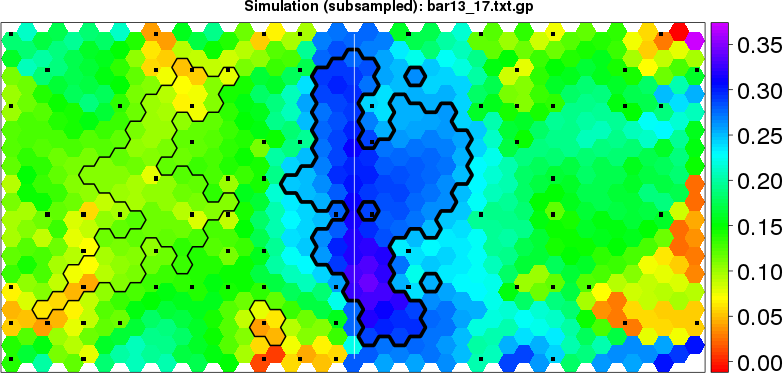

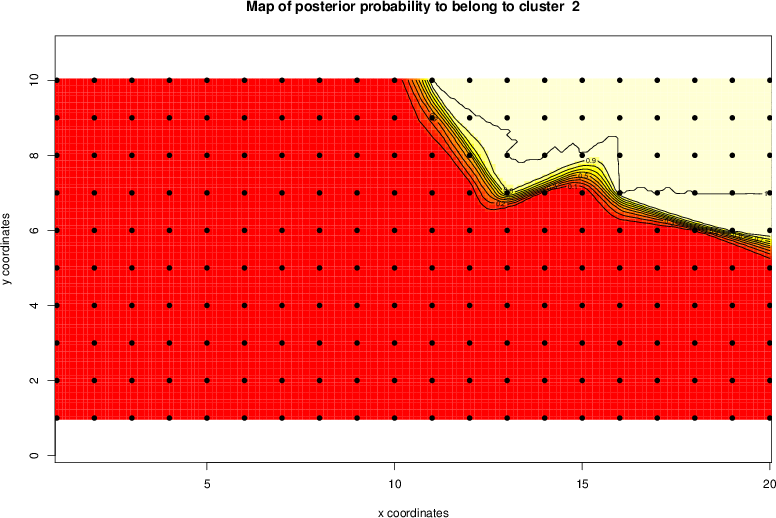

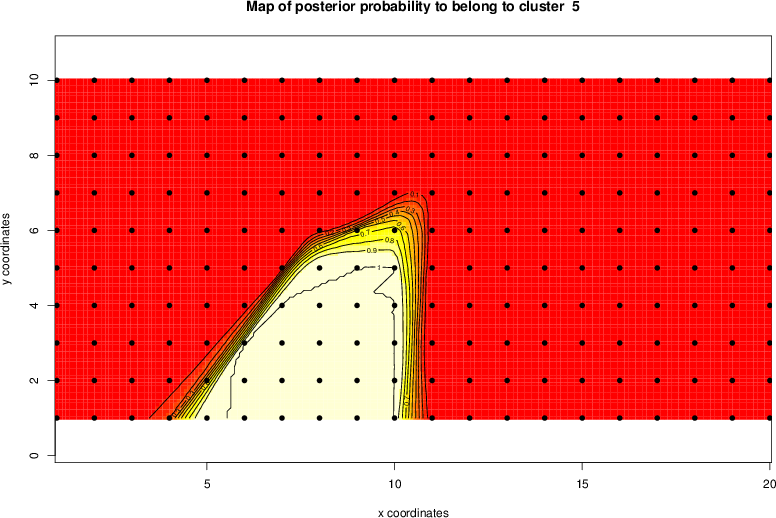

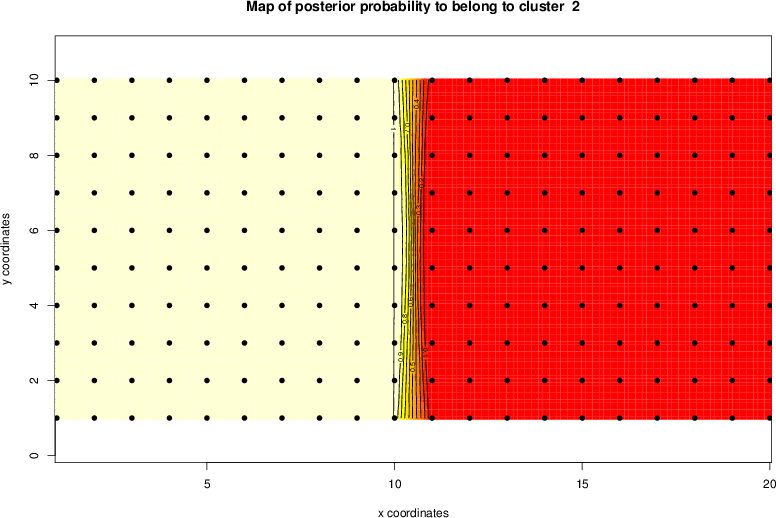

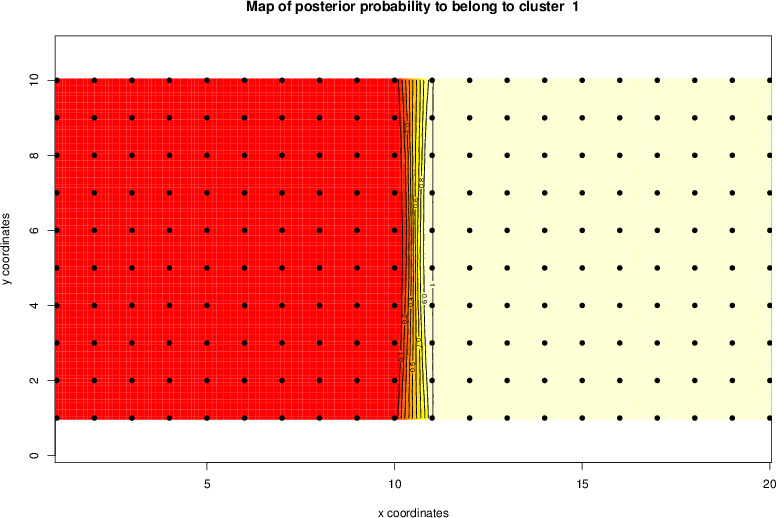

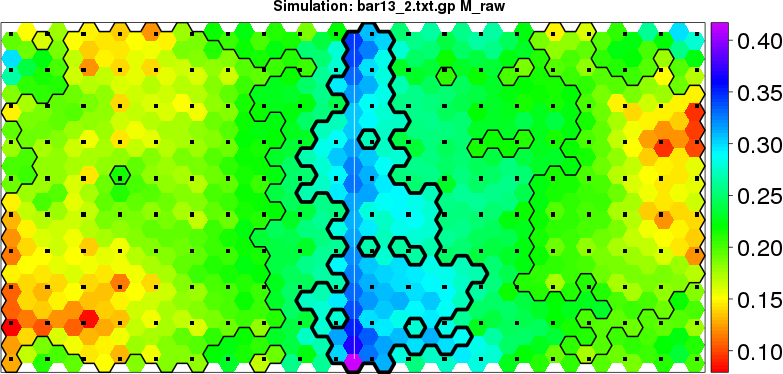

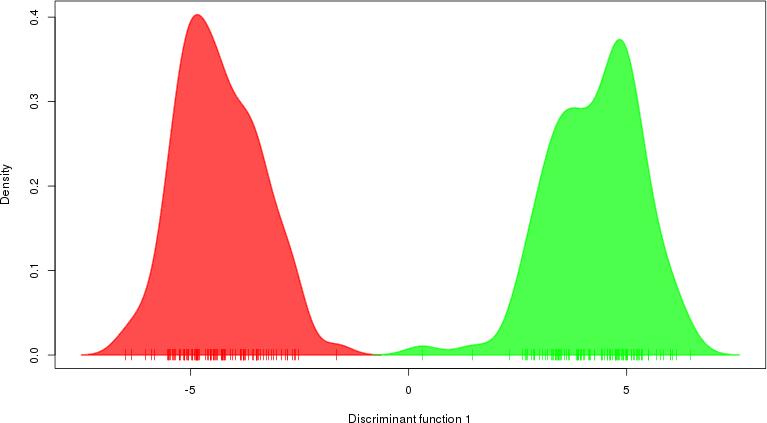

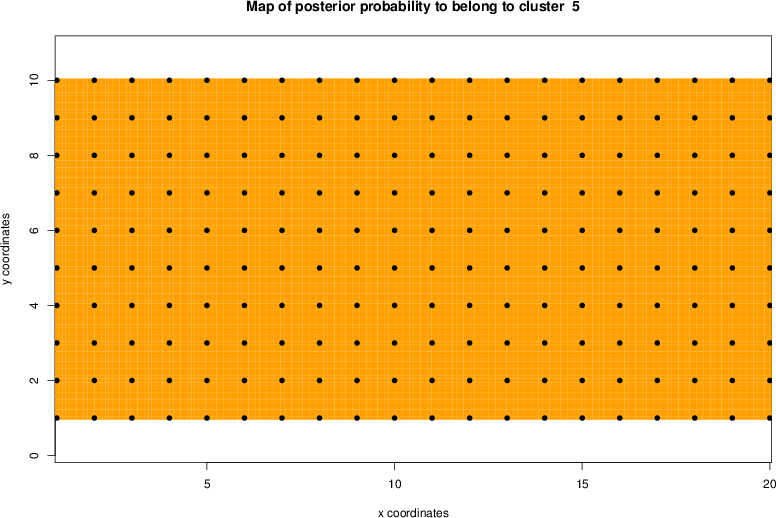

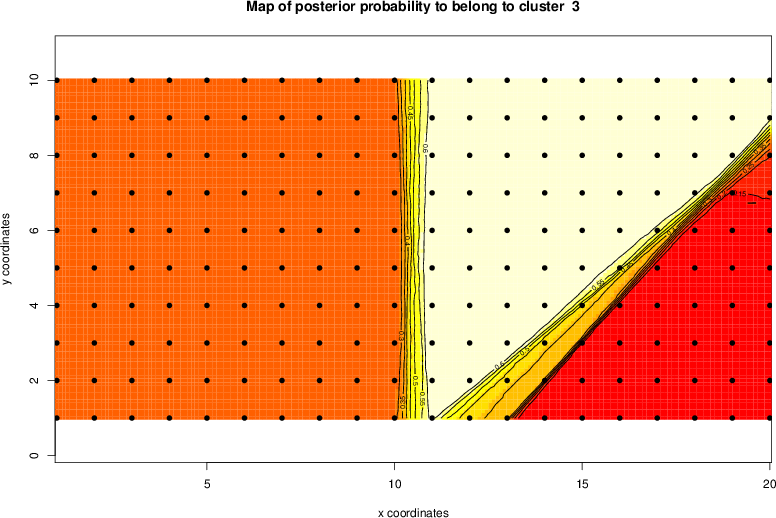

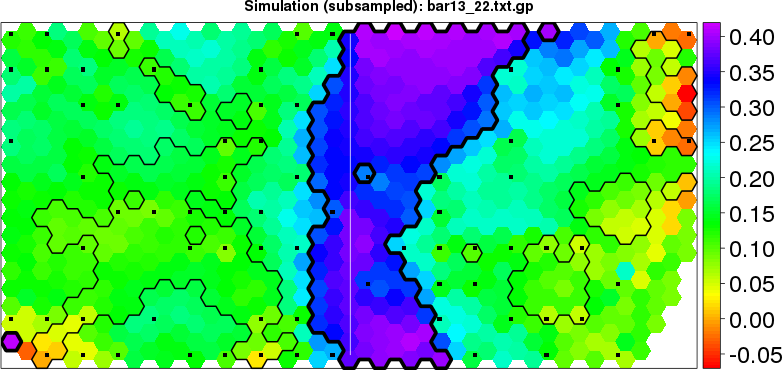

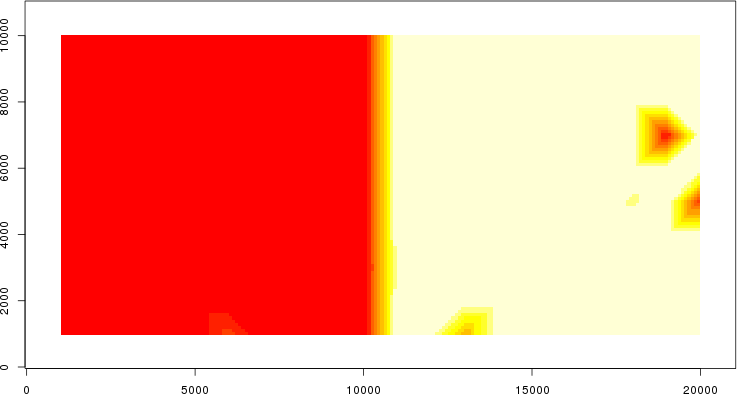

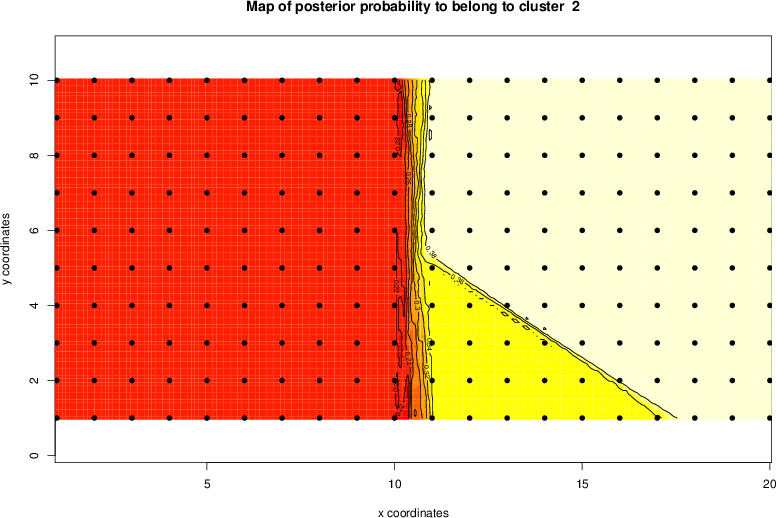

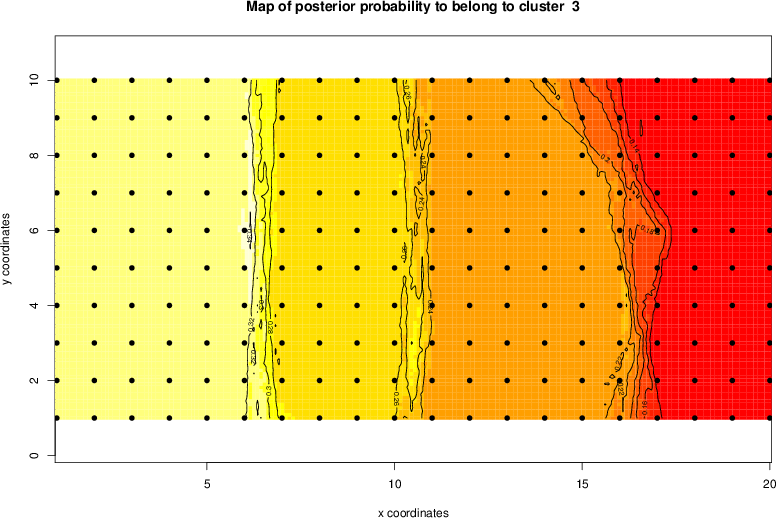

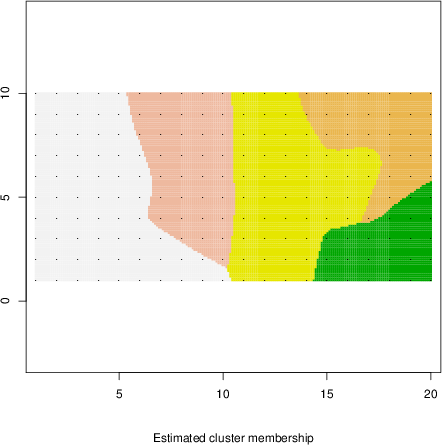

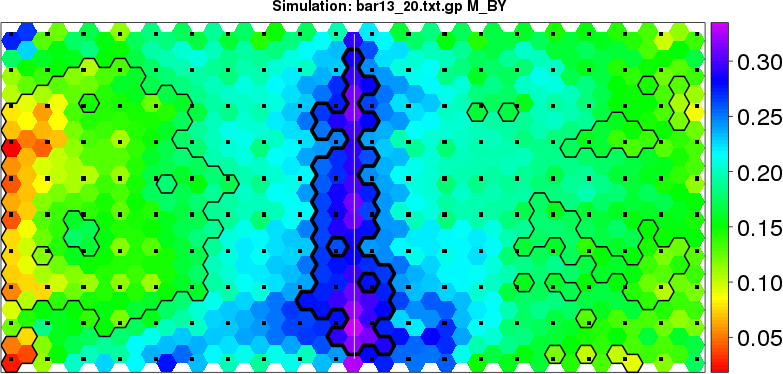

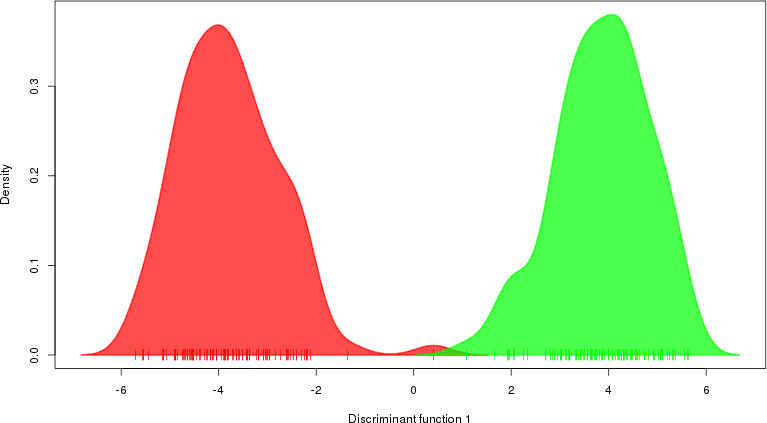

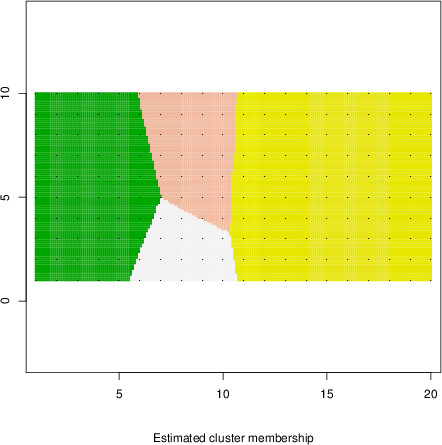

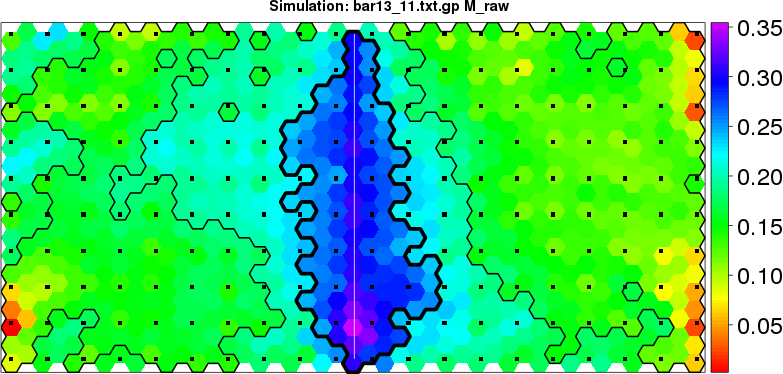

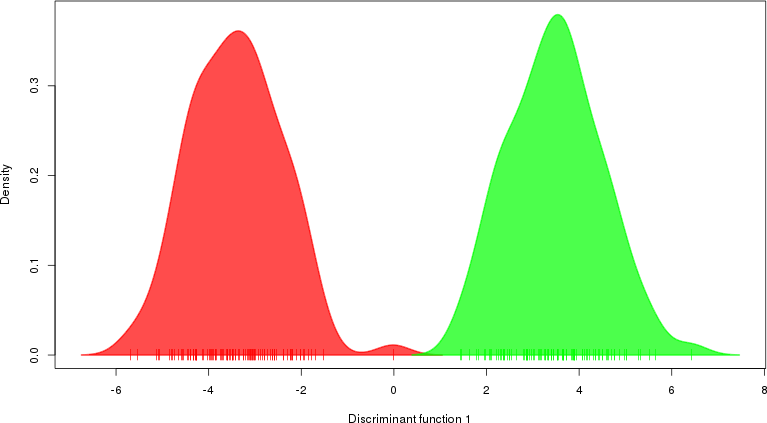

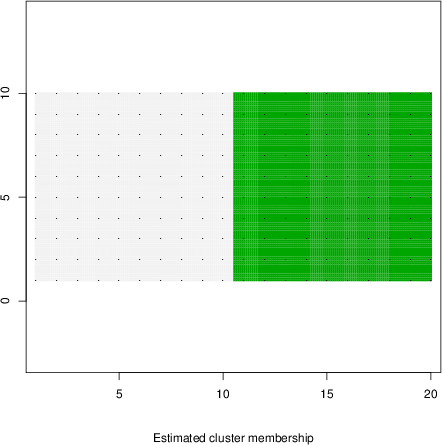

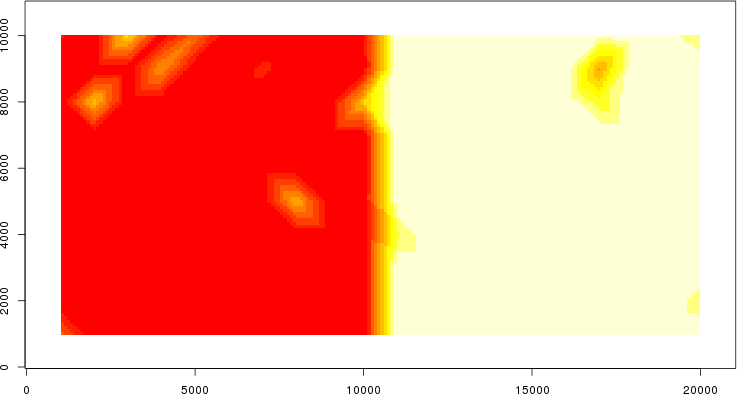

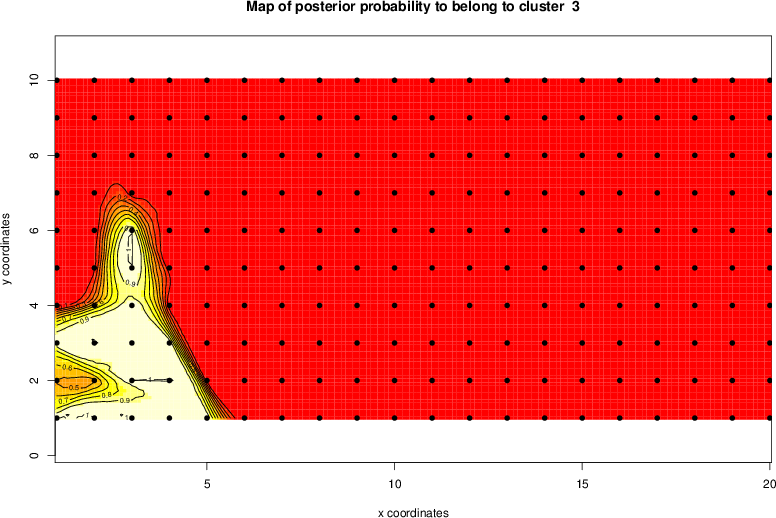

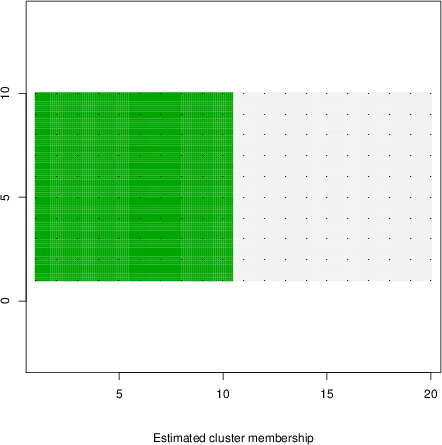

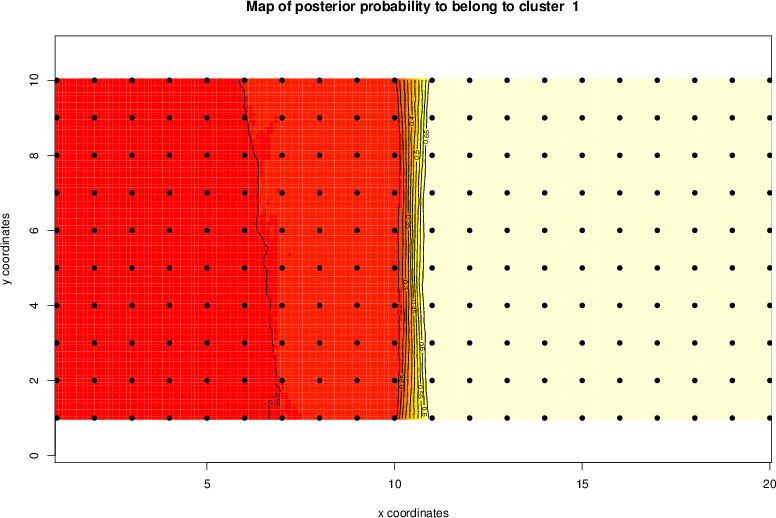

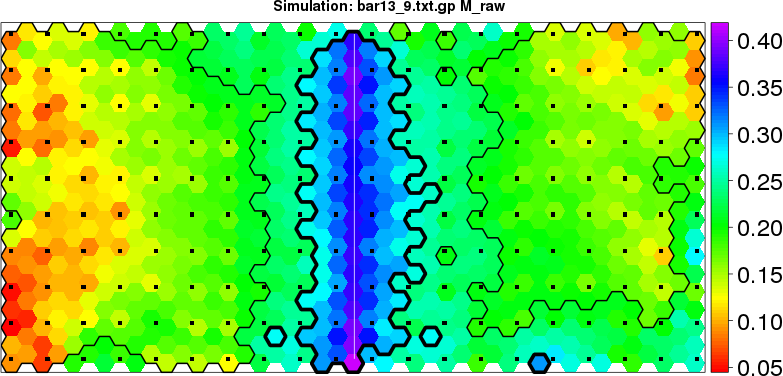

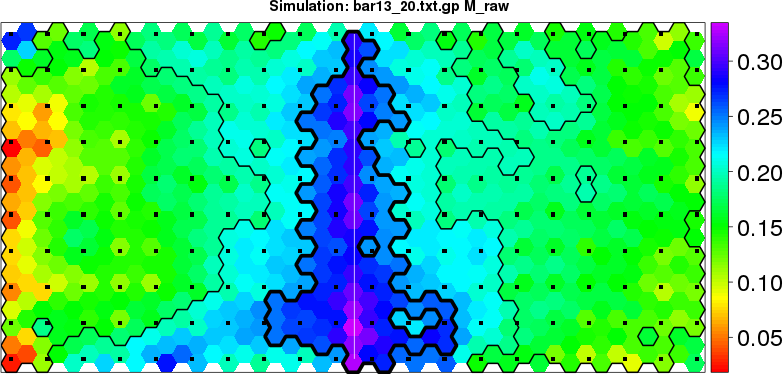

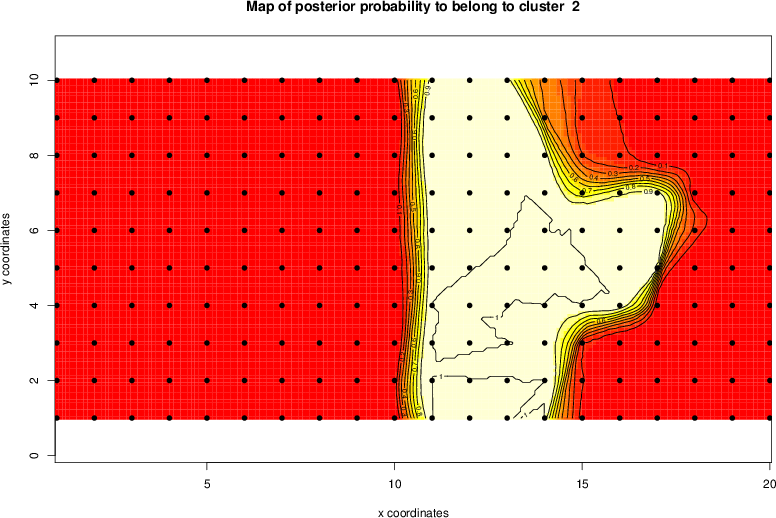

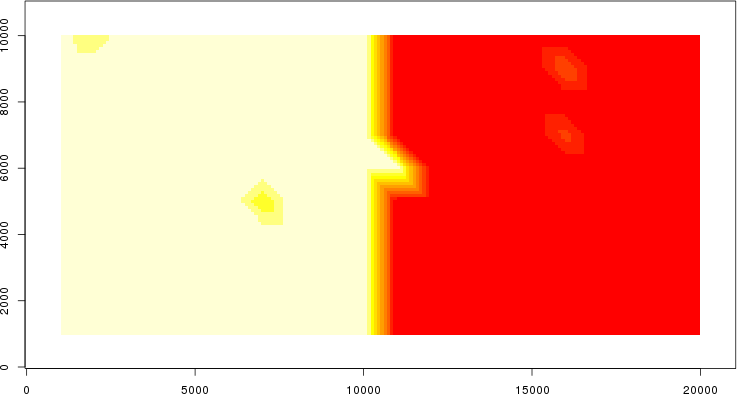

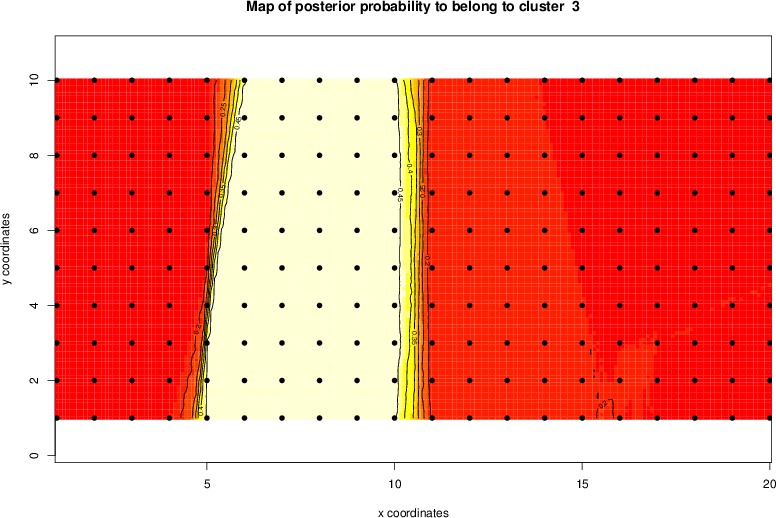

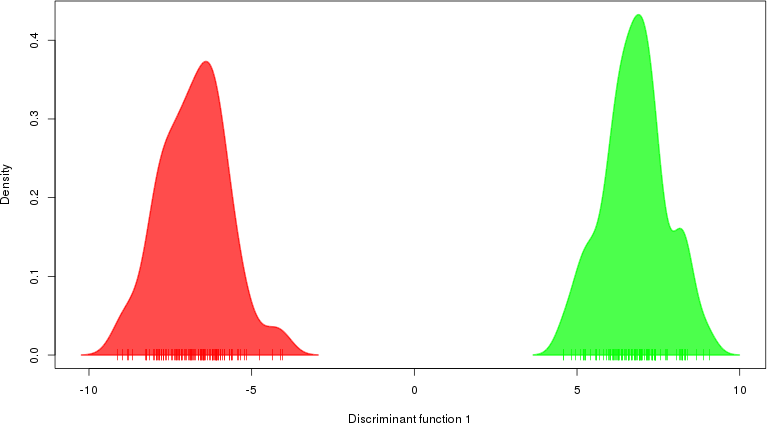

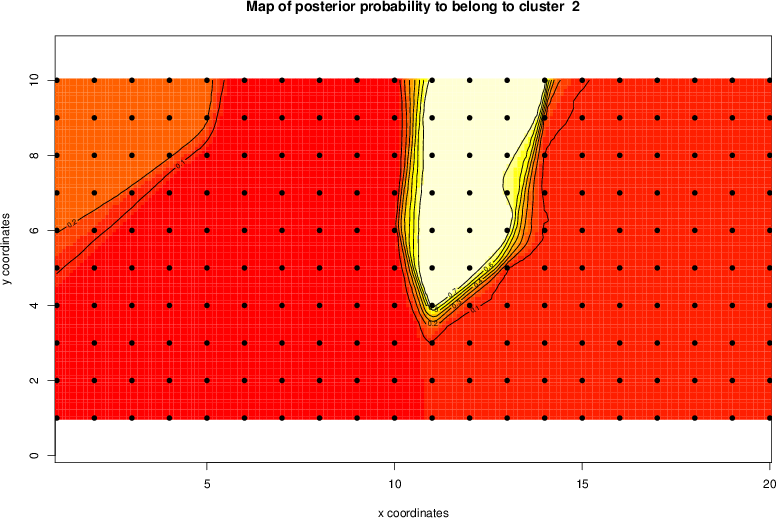

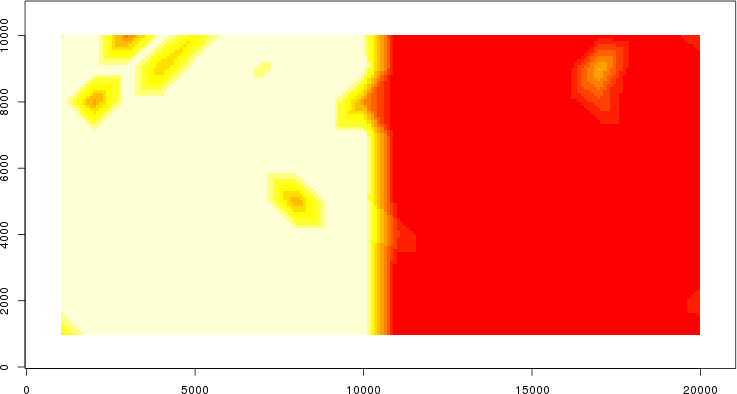

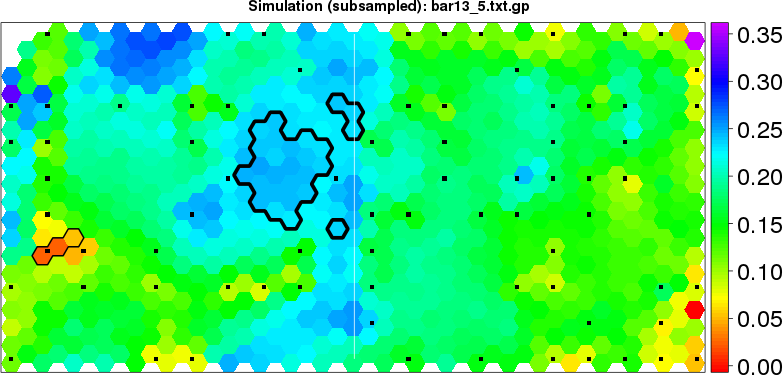

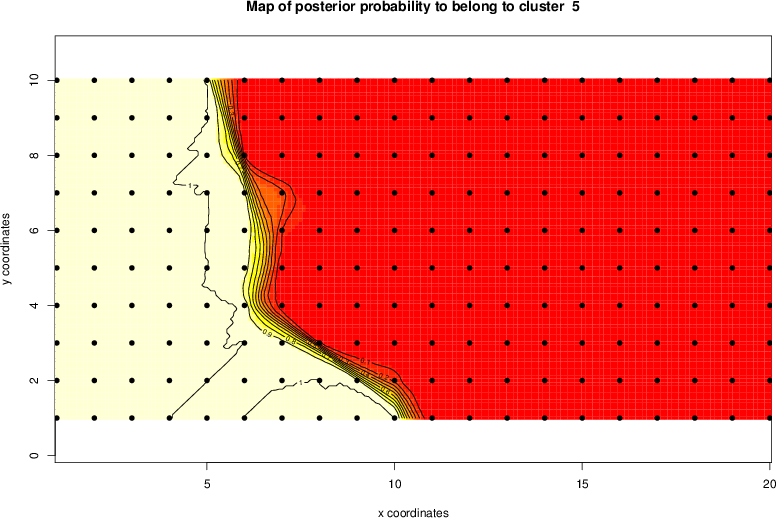

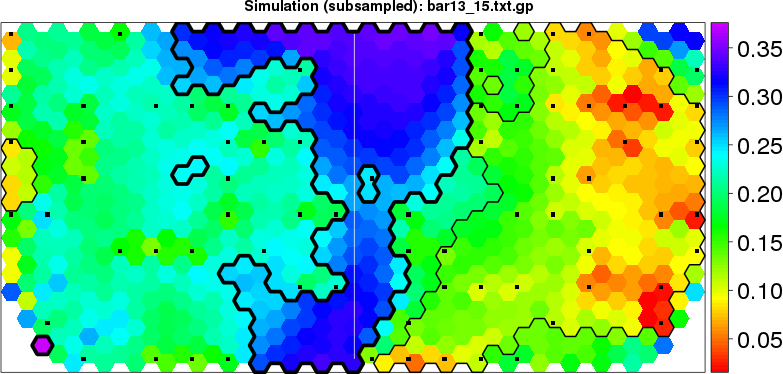

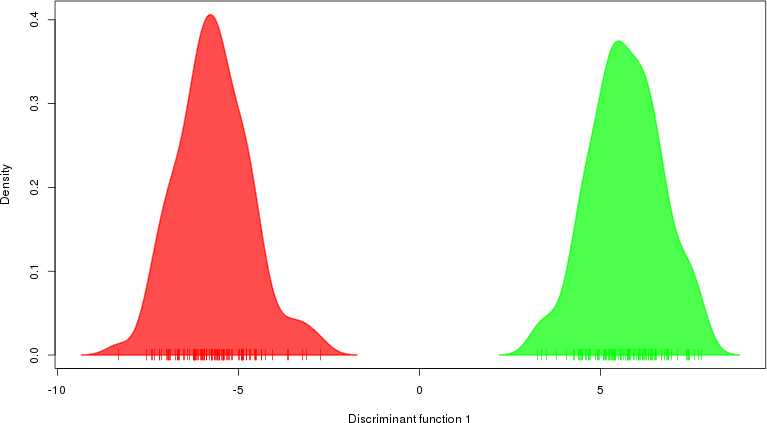

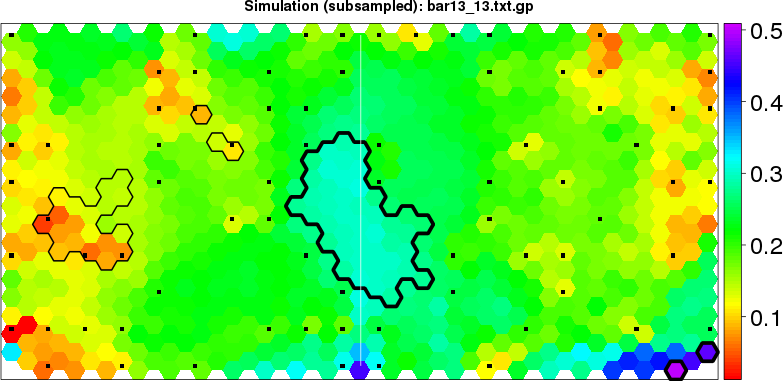

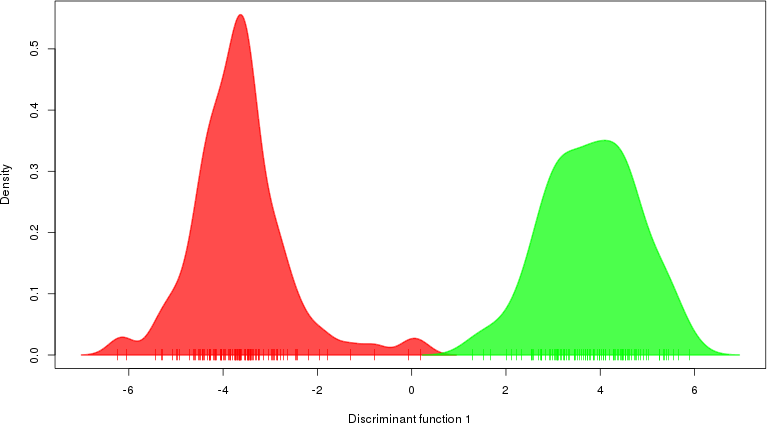

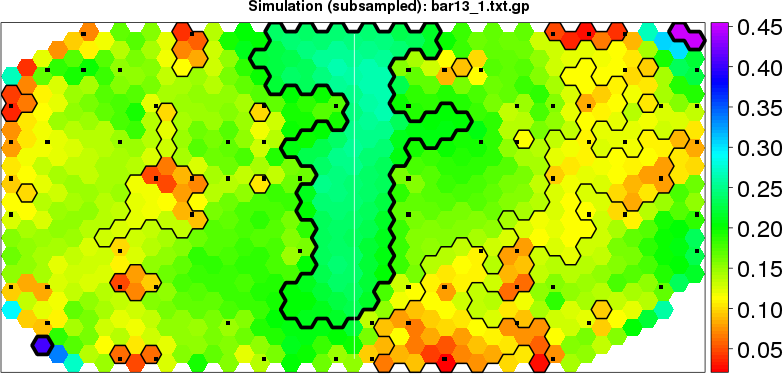

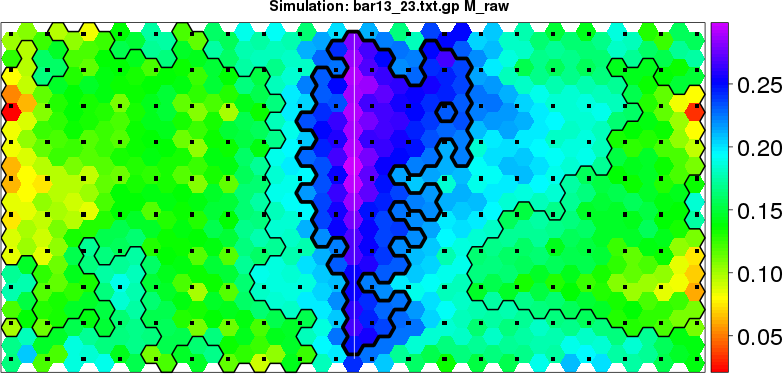

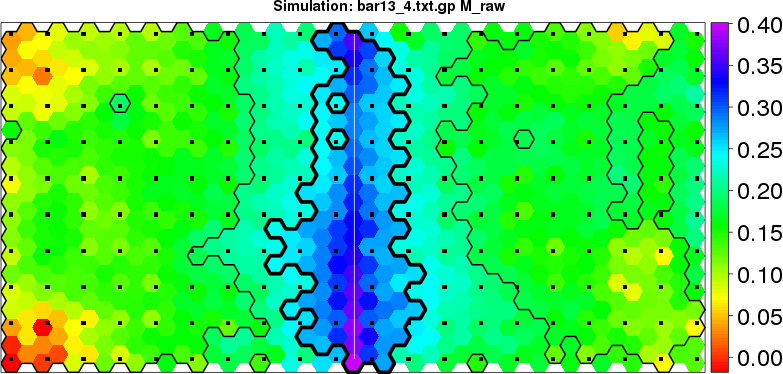

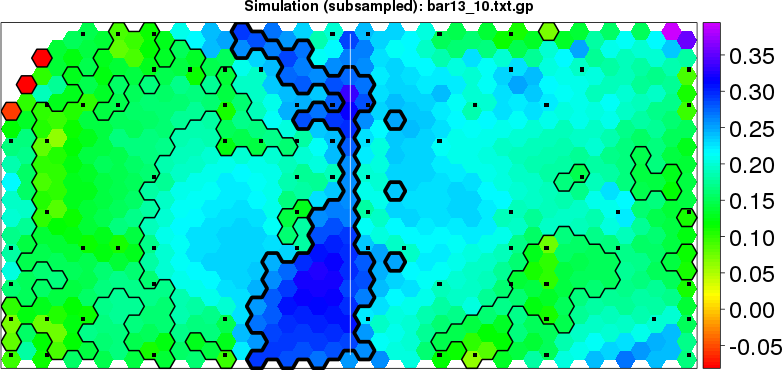

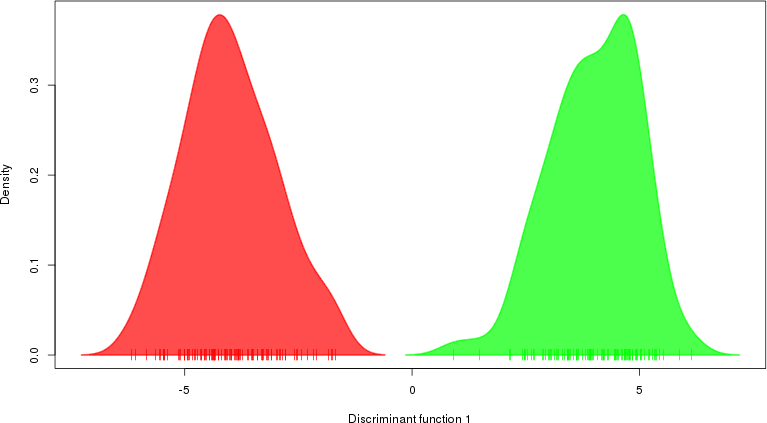

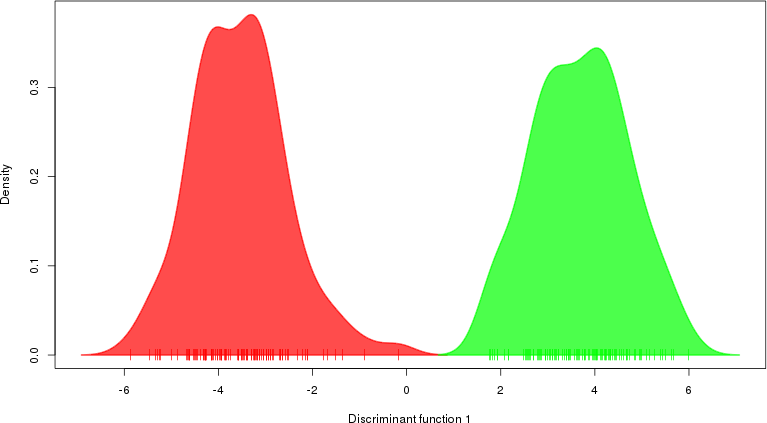

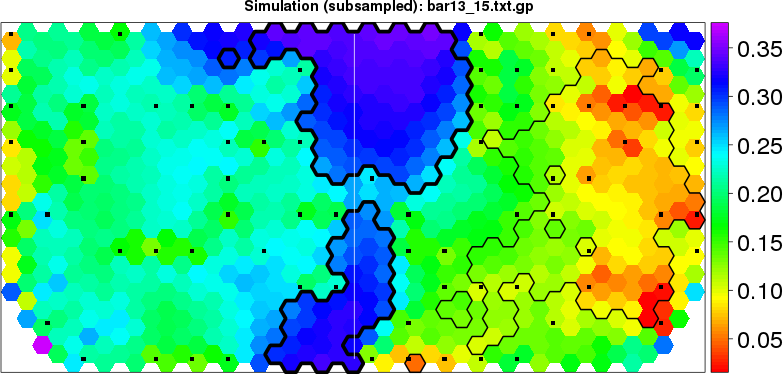

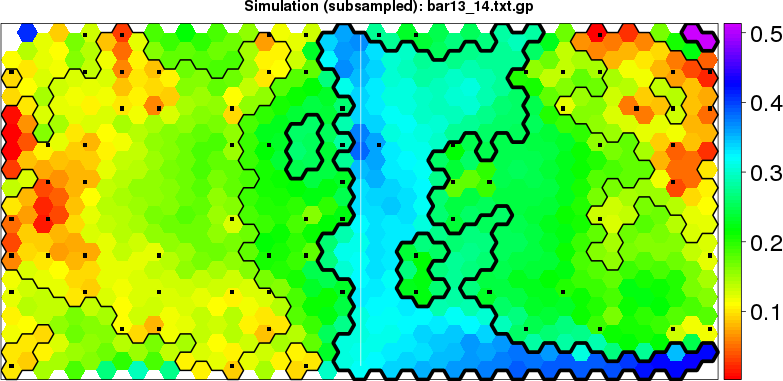

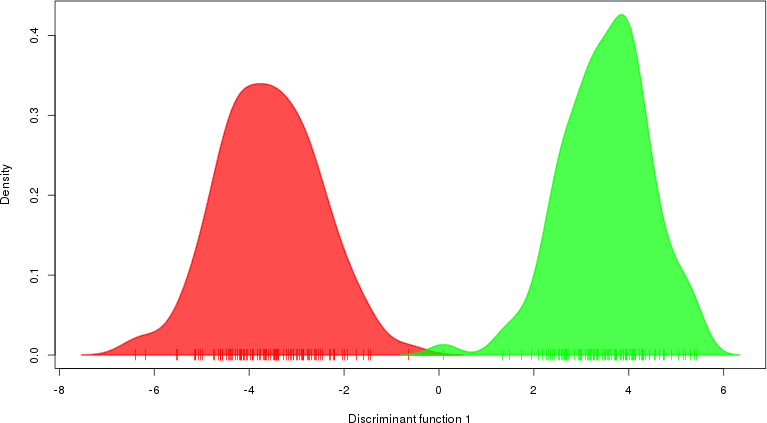

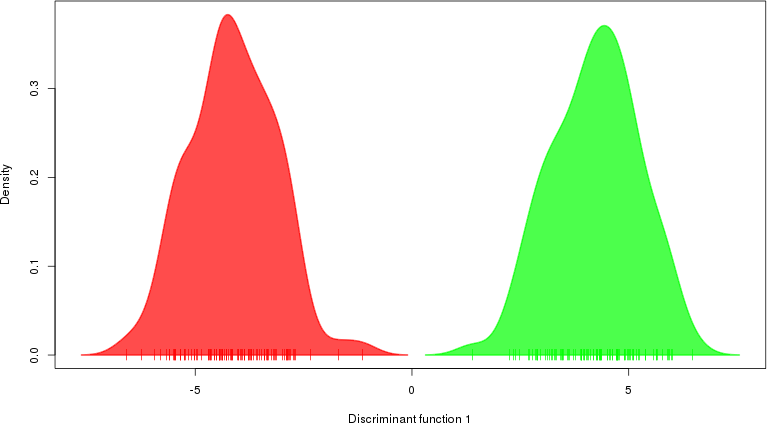

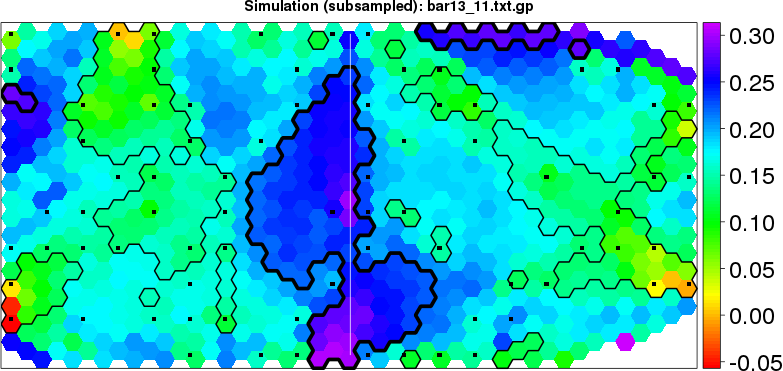

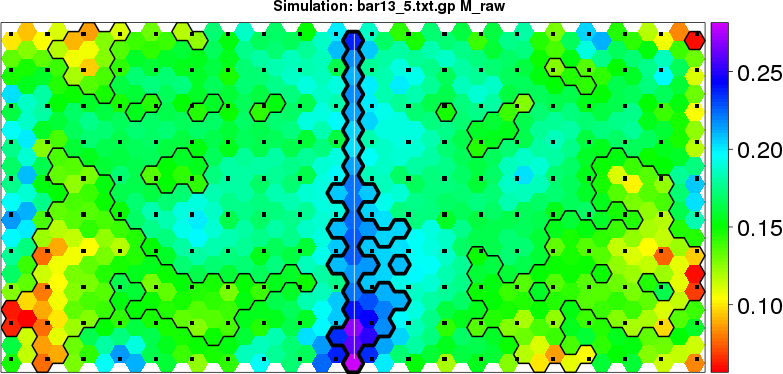

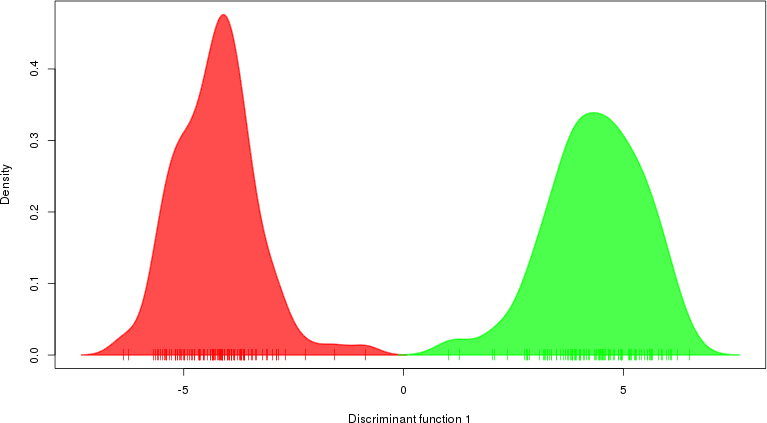

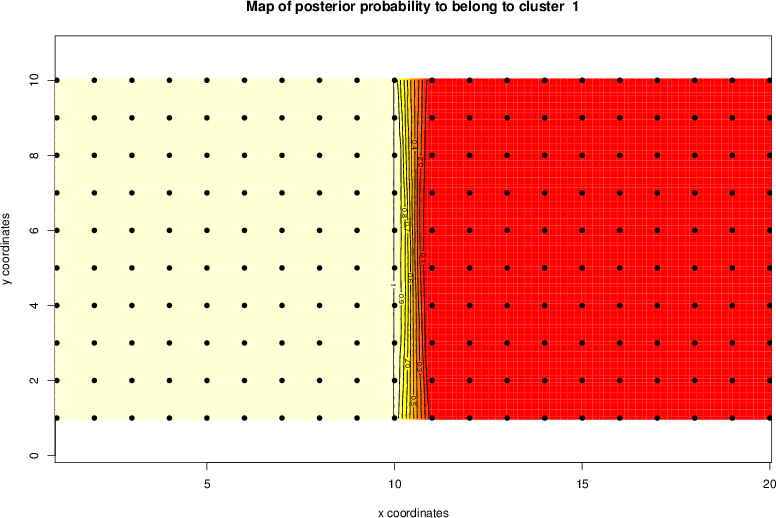

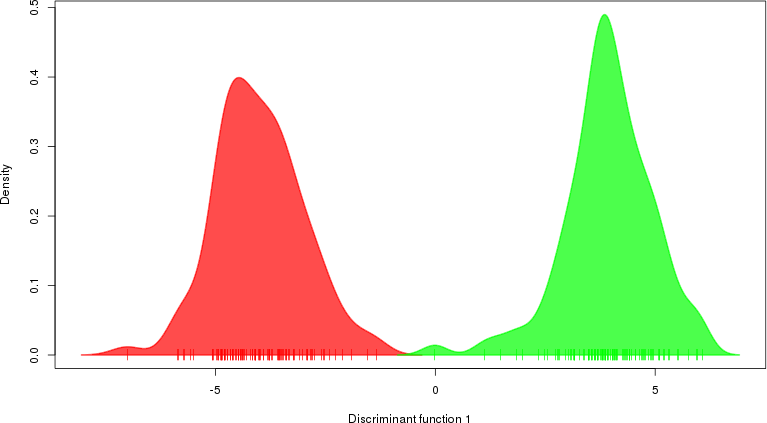

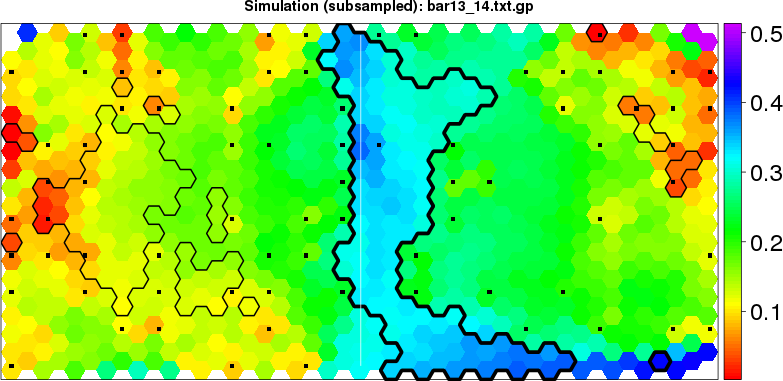

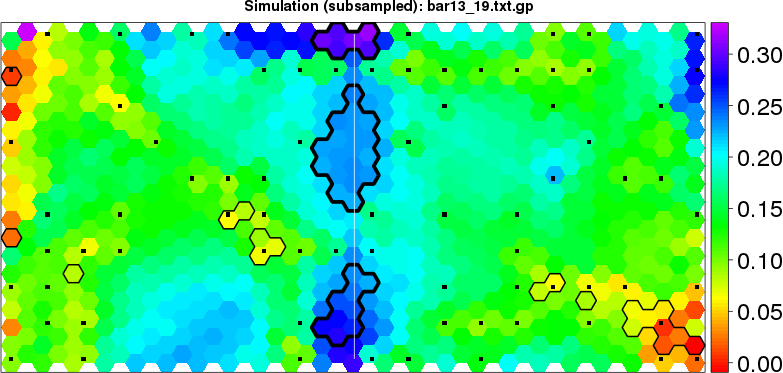

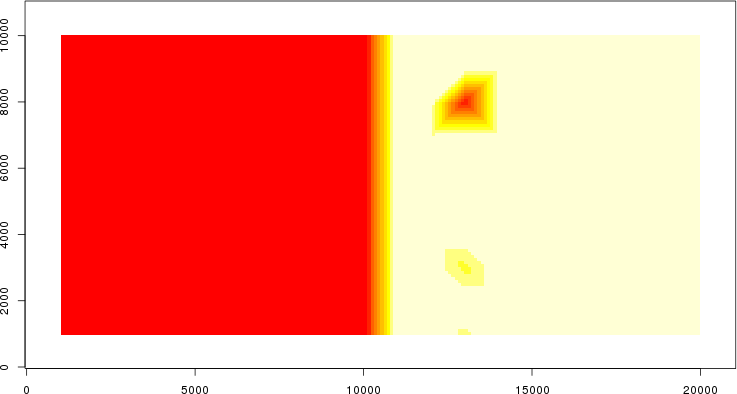

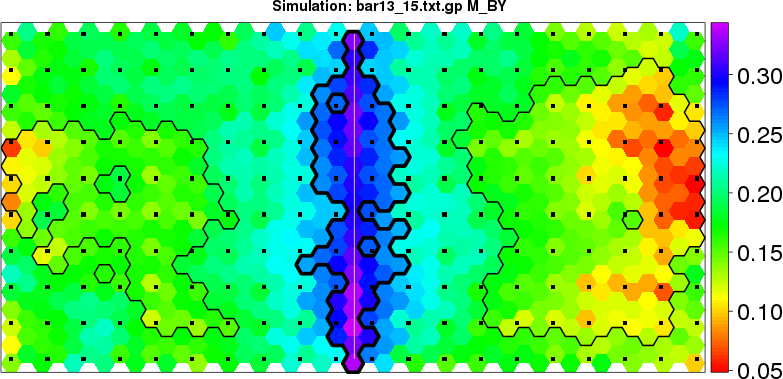

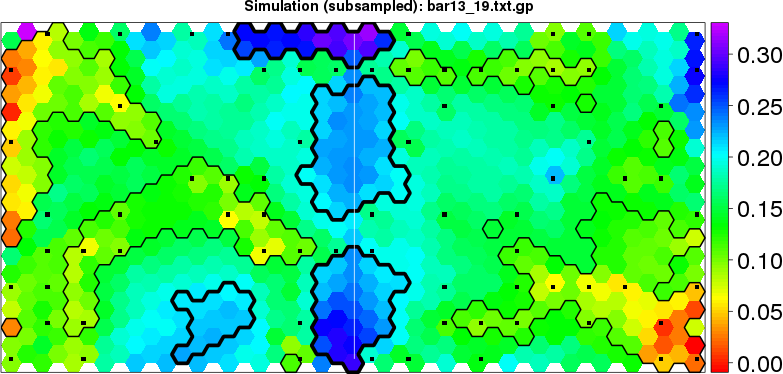

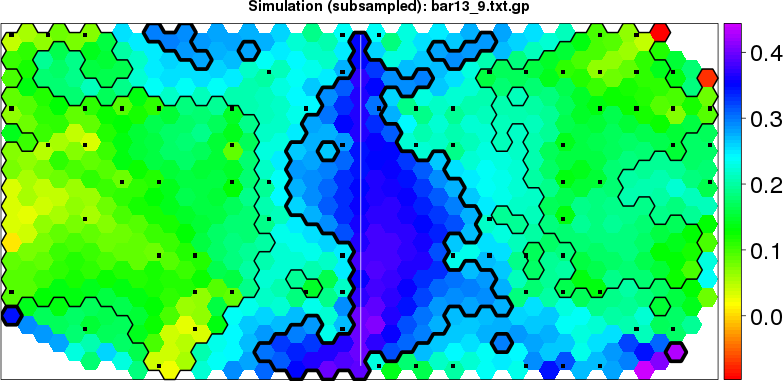

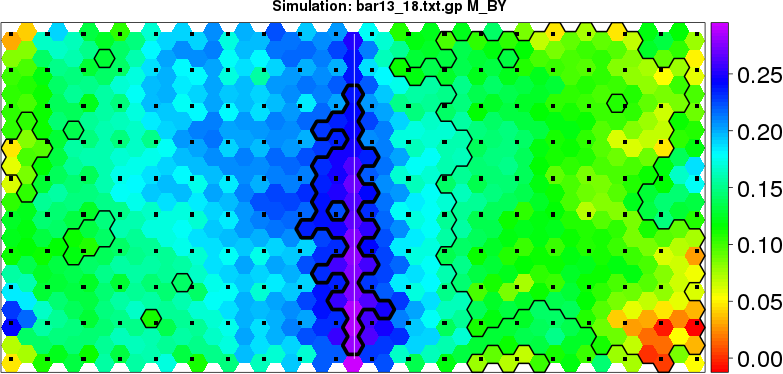

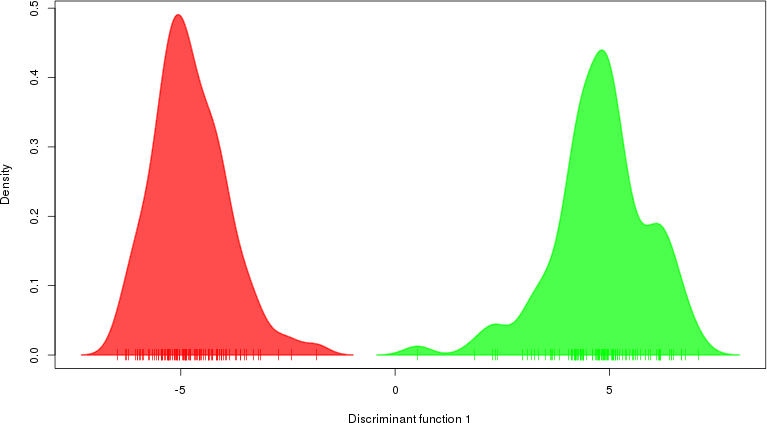

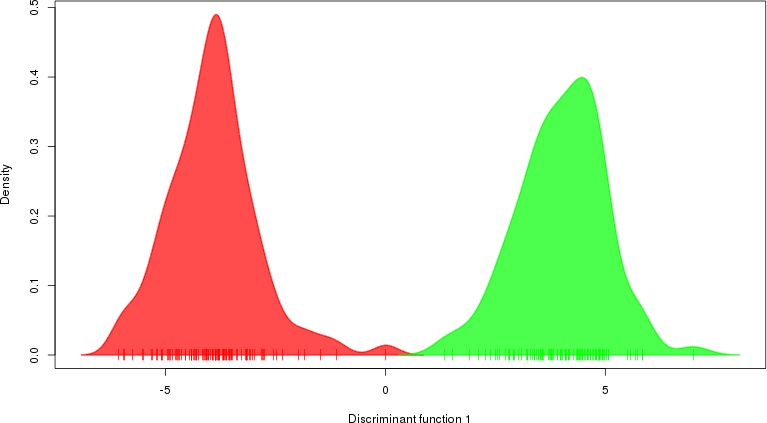

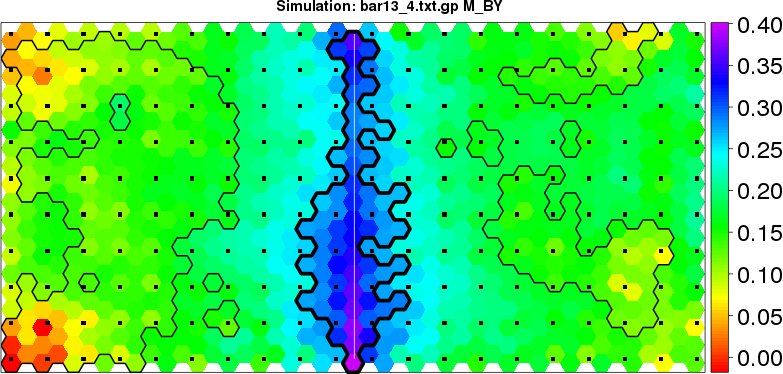

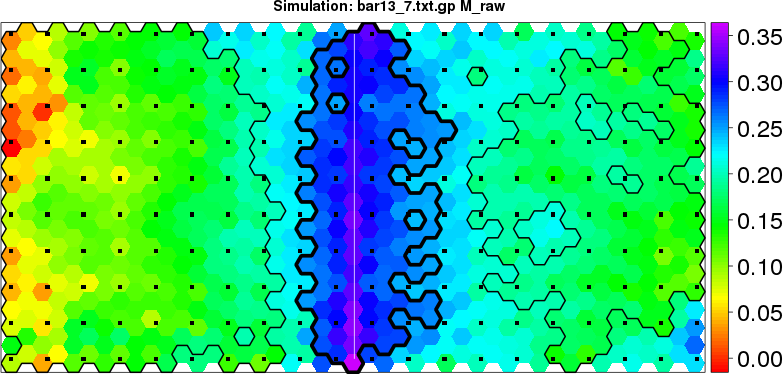

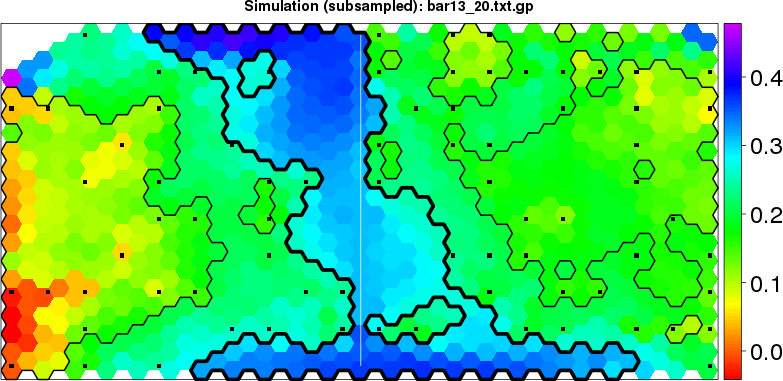

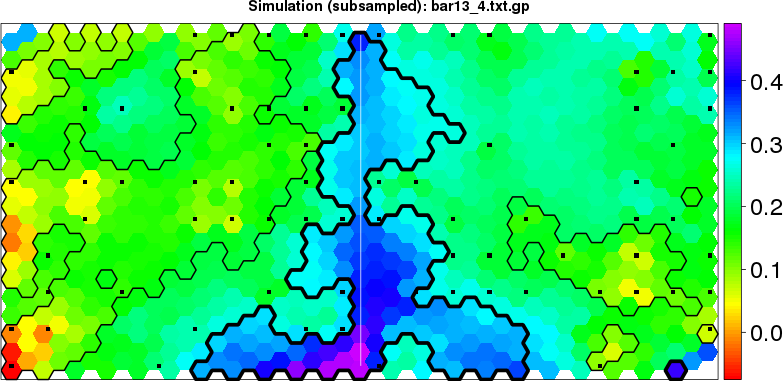

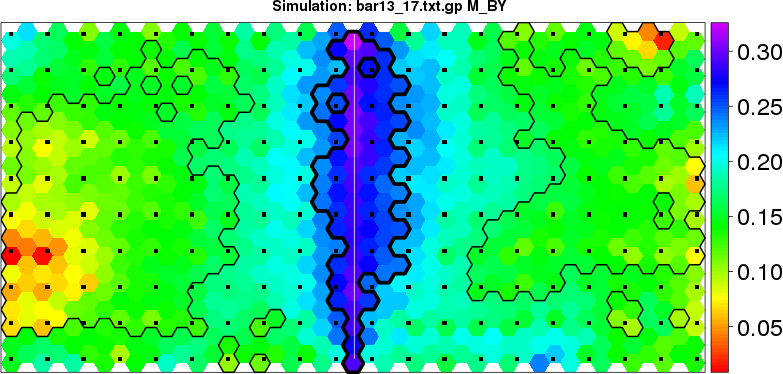

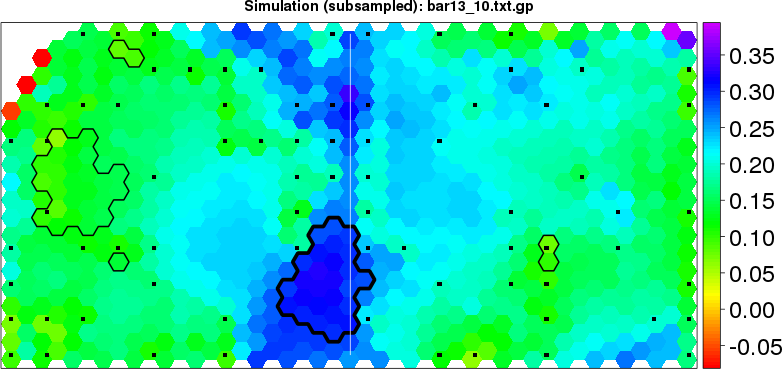

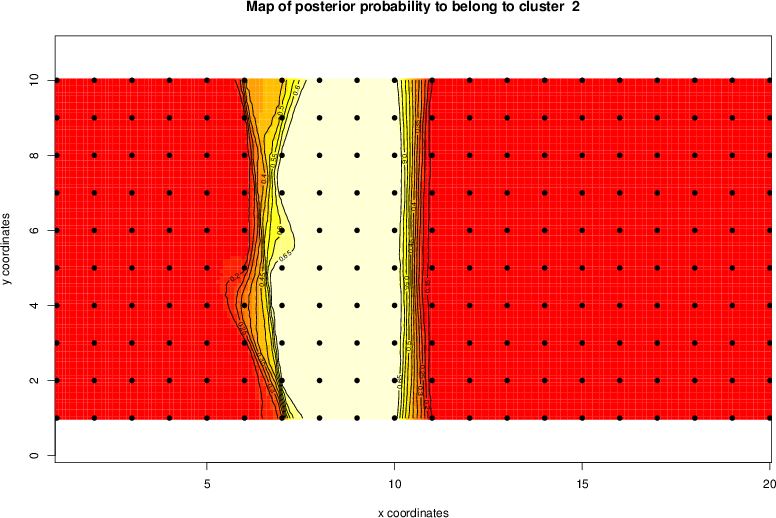

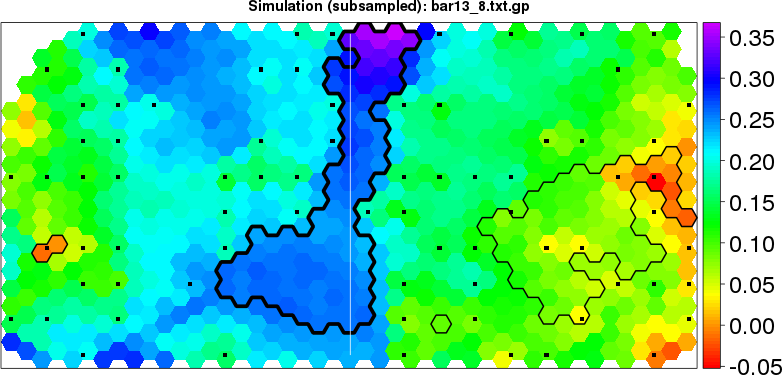

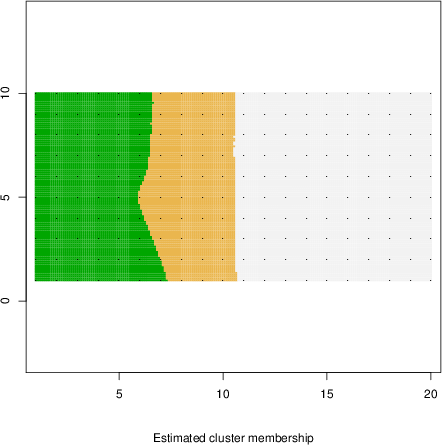

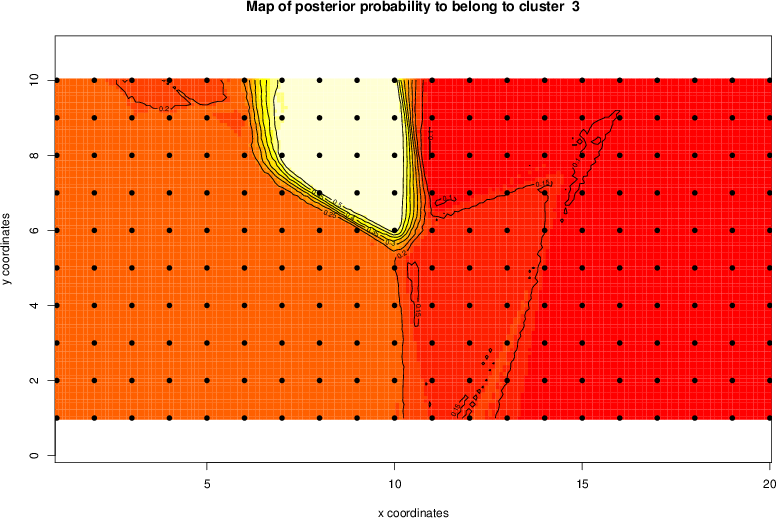

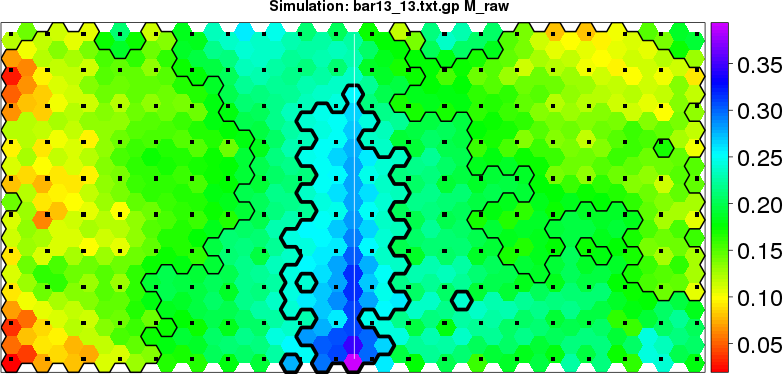

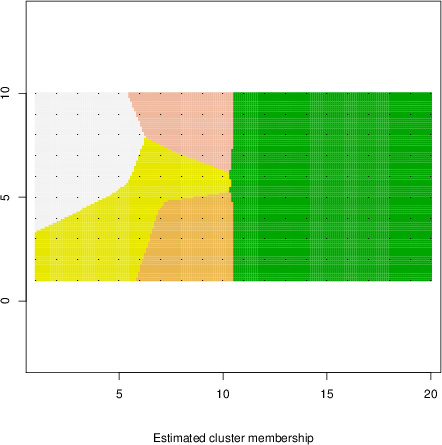

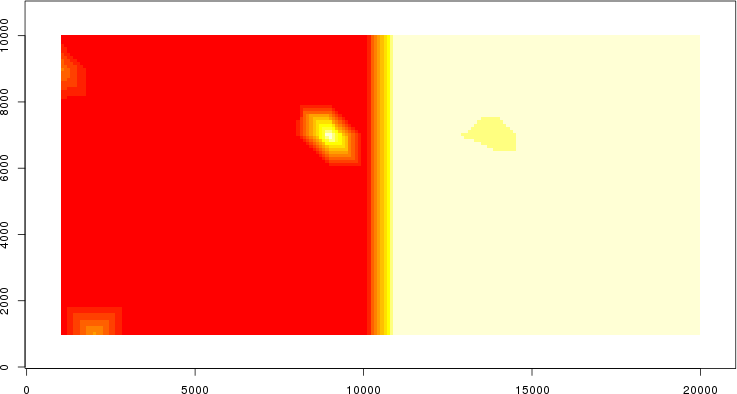

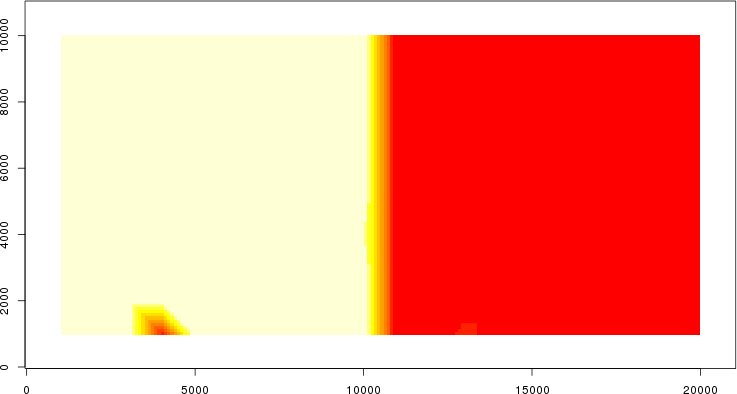

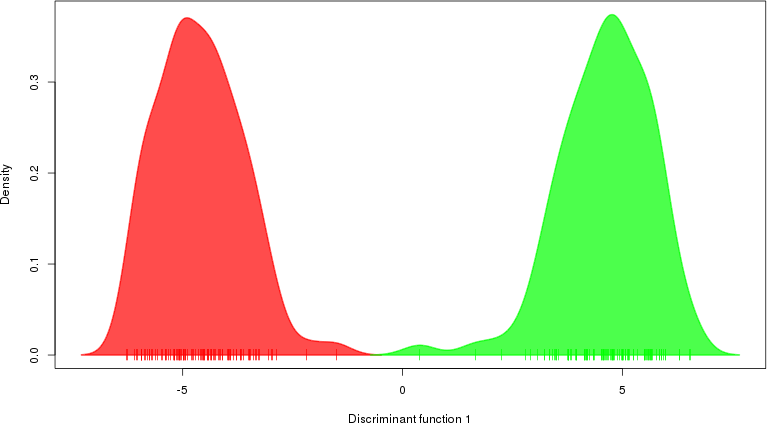

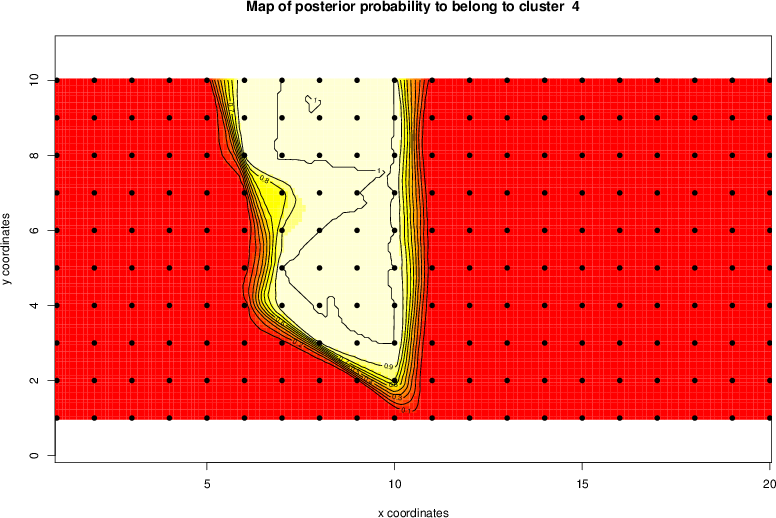

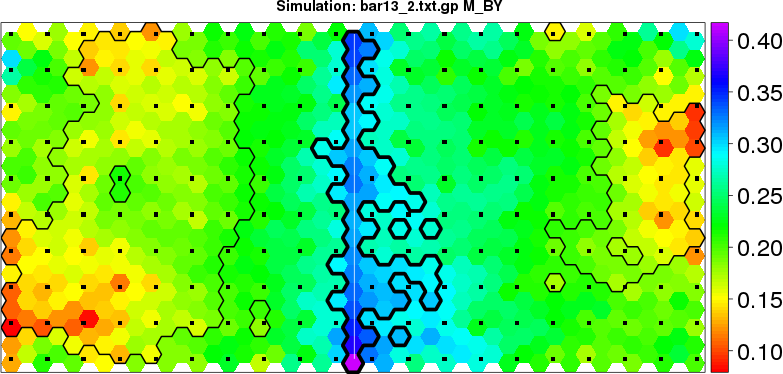

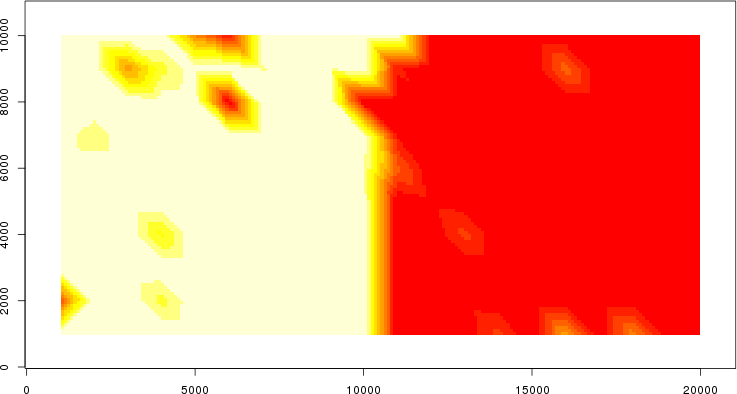

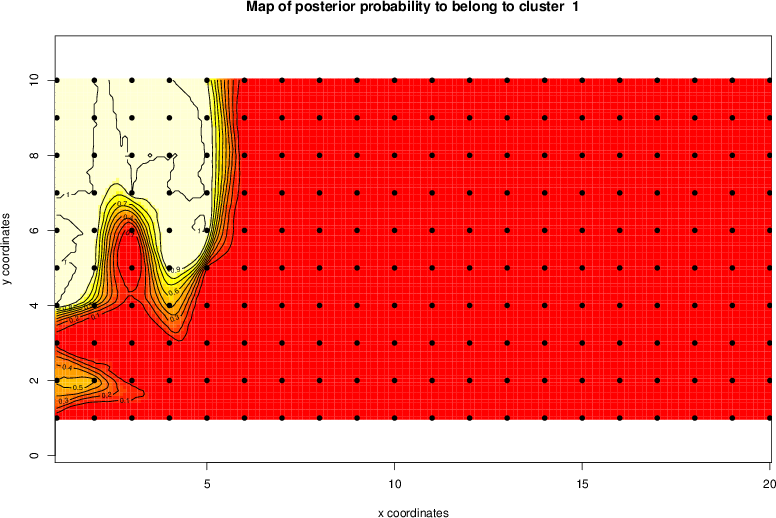

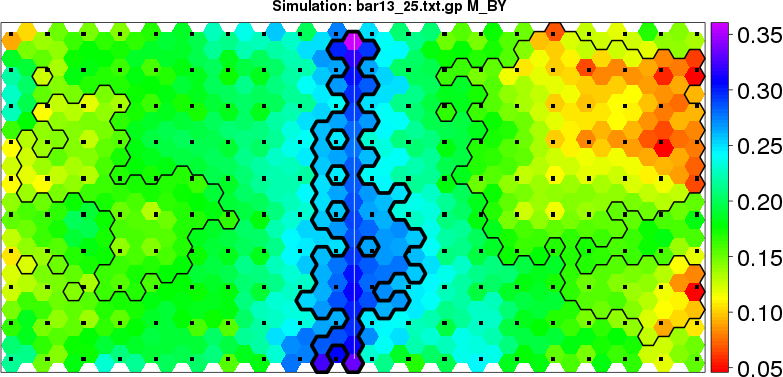

Simulated data	Geographical plots of weighted mean of all ellipse values (i.e., individual genetic distances a_r of Rousset 2000) and significant barrier (cells with differentiation values higher than expected under a random distribution (no FDR applied) are materialized with thick black borders)	Idem, Benjamini-Yekutieli FDR applied	MAPI analysis (no FDR applied) with subsampled (75/200) dataset	MAPI analysis (Benjamini-Yekutieli FDR applied) with subsampled (75/200) dataset	Best probability memberships	Probability memberships for cluster 1	Probability memberships for cluster 2	Probability memberships for cluster 3	Probability memberships for cluster 4	Probability memberships for cluster 5	Best probability memberships	Probability memberships for cluster 1	Probability memberships for cluster 2	Probability memberships for cluster 3	Probability memberships for cluster 4	Probability memberships for cluster 5	Scatter plot showing the first two components of the DAPC (when K>2) or density plot showing the first principal component of the DAPC (when K=2)	Probability memberships for cluster 1	Probability memberships for cluster 2	Probability memberships for cluster 3	Probability memberships for cluster 4	Probability memberships for cluster 5	Scatter plot showing the first two components of the DAPC (when K>2) or density plot showing the first principal component of the DAPC (when K=2)	Probability memberships for cluster 1	Probability memberships for cluster 2	Probability memberships for cluster 3	Probability memberships for cluster 4	Probability memberships for cluster 5
1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29
bar13_1 (full) bar13_1 (sub.)	detected=89.4% / unexpected=0.1%	detected=73.5% / unexpected=0.0%	detected=84.1% / unexpected=0.4%	detected=63.6% / unexpected=0.0%																NA	NA	NA				NA	NA	NA
bar13_2 (full) bar13_2 (sub.)	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.4%	detected=100.0% / unexpected=3.2%	detected=90.1% / unexpected=1.3%																NA	NA	NA				NA	NA	NA
bar13_3 (full) bar13_3 (sub.)	detected=100.0% / unexpected=0.1%	detected=95.4% / unexpected=0.1%	detected=84.1% / unexpected=0.1%	detected=63.6% / unexpected=0.2%																NA	NA	NA				NA	NA	NA
bar13_4 (full) bar13_4 (sub.)	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.1%	detected=79.5% / unexpected=0.1%																NA	NA	NA				NA	NA	NA
bar13_5 (full) bar13_5 (sub.)	detected=100.0% / unexpected=0.1%	detected=53.0% / unexpected=0.0%	detected=79.5% / unexpected=1.9%	detected=10.6% / unexpected=2.8%																NA	NA	NA				NA	NA	NA
bar13_6 (full) bar13_6 (sub.)	detected=100.0% / unexpected=1.2%	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=5.0%	detected=53.0% / unexpected=1.1%																NA	NA	NA				NA	NA	NA
bar13_7 (full) bar13_7 (sub.)	detected=100.0% / unexpected=0.0%	detected=94.7% / unexpected=0.1%	detected=100.0% / unexpected=0.1%	detected=89.4% / unexpected=0.0%																NA	NA	NA				NA	NA	NA

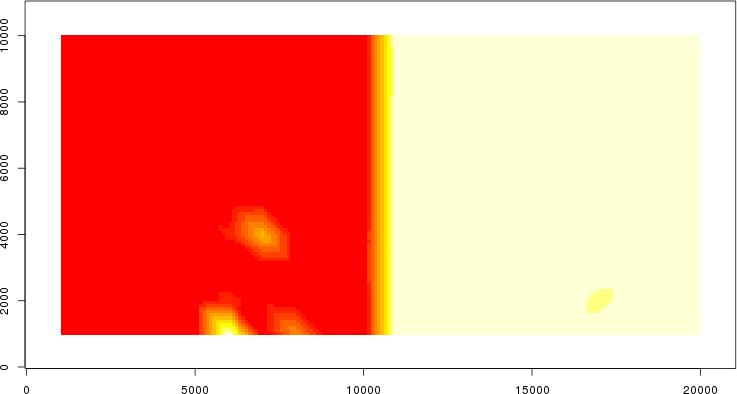

bar13_8 (full) bar13_8 (sub.)	detected=94.7% / unexpected=0.4%	detected=89.4% / unexpected=0.0%	detected=94.7% / unexpected=5.1%	detected=84.1% / unexpected=0.0%																NA	NA	NA				NA	NA	NA

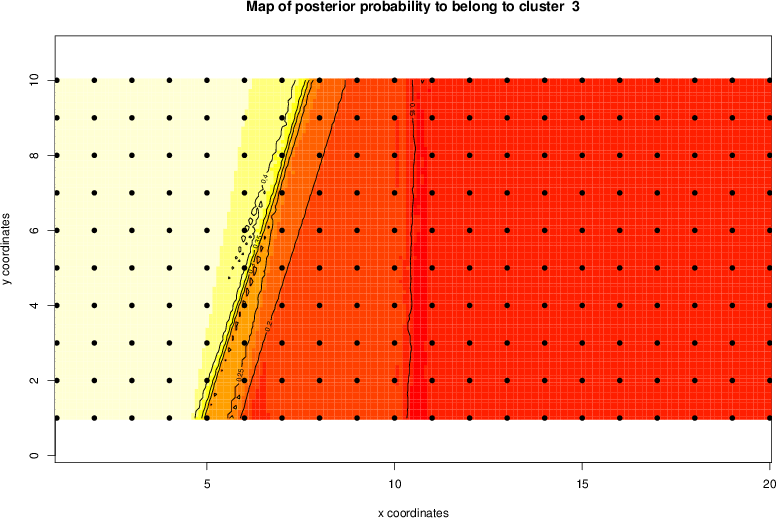

bar13_9 (full) bar13_9 (sub.)	detected=100.0% / unexpected=0.4%	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=1.6%	detected=95.4% / unexpected=0.0%																NA	NA	NA				NA	NA	NA
bar13_10 (full) bar13_10 (sub.)	detected=100.0% / unexpected=0.0%	detected=84.8% / unexpected=0.0%	detected=84.8% / unexpected=0.4%	detected=31.8% / unexpected=0.0%																NA	NA	NA				NA	NA	NA

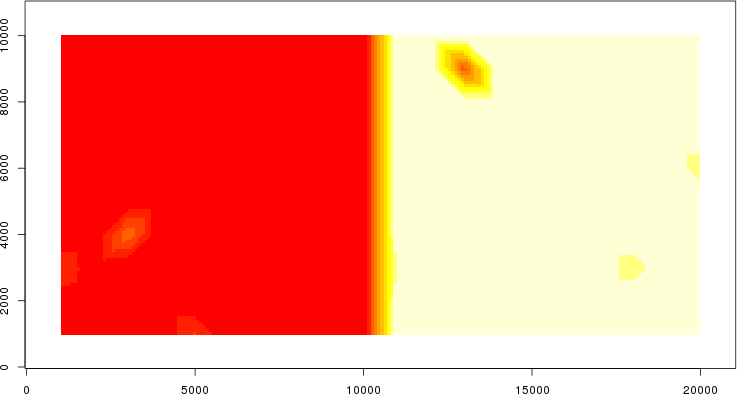

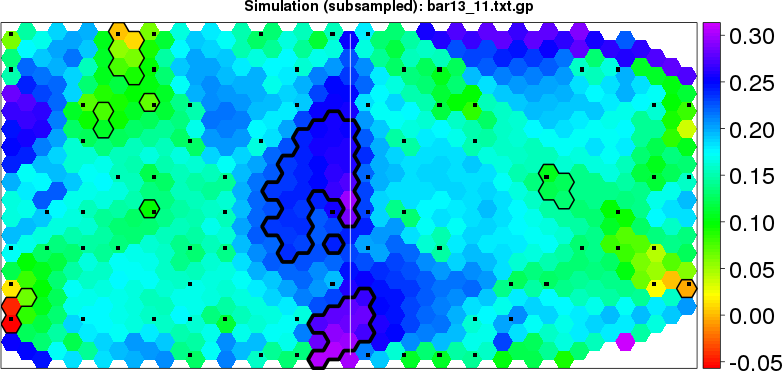

bar13_11 (full) bar13_11 (sub.)	detected=100.0% / unexpected=0.0%	detected=90.1% / unexpected=0.0%	detected=90.1% / unexpected=1.4%	detected=47.7% / unexpected=0.1%																NA	NA	NA				NA	NA	NA
bar13_12 (full) bar13_12 (sub.)	detected=100.0% / unexpected=0.0%	detected=90.1% / unexpected=0.0%	detected=100.0% / unexpected=0.4%	detected=78.8% / unexpected=0.1%																NA	NA	NA				NA	NA	NA
bar13_13 (full) bar13_13 (sub.)	detected=84.8% / unexpected=0.2%	detected=79.5% / unexpected=0.1%	detected=84.8% / unexpected=1.9%	detected=42.4% / unexpected=0.2%																NA	NA	NA				NA	NA	NA

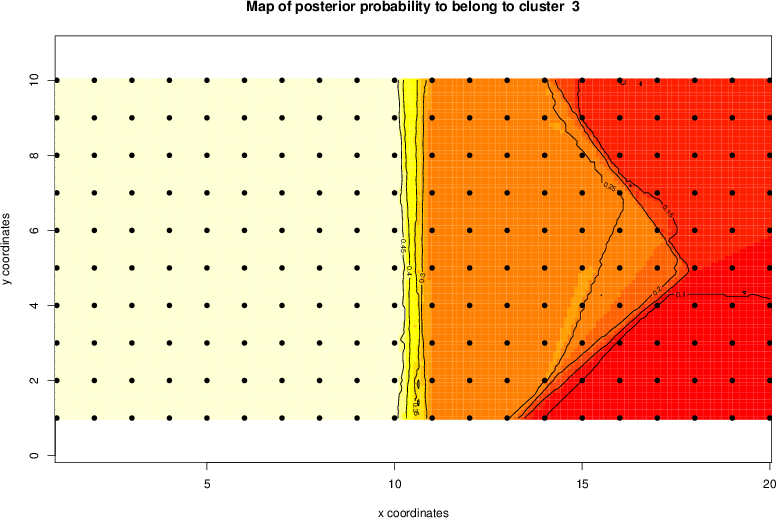

bar13_14 (full) bar13_14 (sub.)	detected=100.0% / unexpected=0.4%	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.9%	detected=78.8% / unexpected=0.1%																NA	NA	NA				NA	NA	NA
bar13_15 (full) bar13_15 (sub.)	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.4%	detected=84.1% / unexpected=0.1%																NA	NA	NA				NA	NA	NA
bar13_16 (full) bar13_16 (sub.)	detected=100.0% / unexpected=0.0%	detected=90.1% / unexpected=0.0%	detected=95.4% / unexpected=0.8%	detected=68.9% / unexpected=0.2%																NA	NA	NA				NA	NA	NA
bar13_17 (full) bar13_17 (sub.)	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.0%	detected=94.7% / unexpected=0.2%	detected=74.2% / unexpected=0.2%																NA	NA	NA				NA	NA	NA
bar13_18 (full) bar13_18 (sub.)	detected=100.0% / unexpected=0.5%	detected=79.5% / unexpected=0.0%	detected=90.1% / unexpected=1.8%	detected=53.0% / unexpected=0.0%																NA	NA	NA				NA	NA	NA
bar13_19 (full) bar13_19 (sub.)	detected=100.0% / unexpected=0.4%	detected=84.8% / unexpected=0.1%	detected=84.1% / unexpected=1.5%	detected=62.9% / unexpected=0.0%																NA	NA	NA				NA	NA	NA
bar13_20 (full) bar13_20 (sub.)	detected=100.0% / unexpected=0.0%	detected=90.1% / unexpected=0.0%	detected=100.0% / unexpected=0.0%	detected=94.7% / unexpected=0.5%																NA	NA	NA				NA	NA	NA

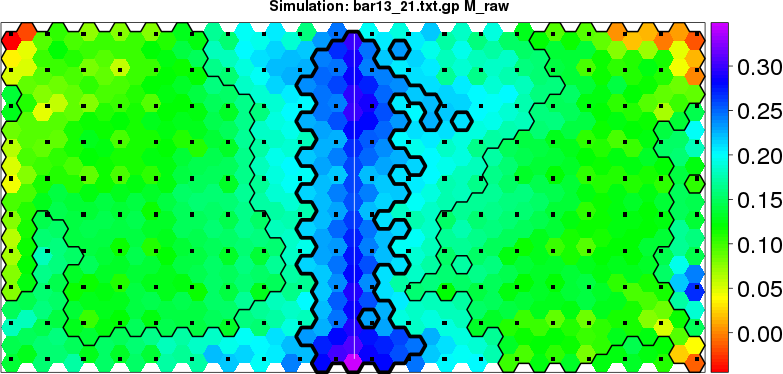

bar13_21 (full) bar13_21 (sub.)	detected=100.0% / unexpected=0.2%	detected=100.0% / unexpected=0.1%	detected=89.4% / unexpected=2.4%	detected=58.3% / unexpected=5.8%																NA	NA	NA				NA	NA	NA
bar13_22 (full) bar13_22 (sub.)	detected=100.0% / unexpected=0.0%	detected=100.0% / unexpected=0.1%	detected=100.0% / unexpected=0.2%	detected=100.0% / unexpected=0.2%																NA	NA	NA				NA	NA	NA
bar13_23 (full) bar13_23 (sub.)	detected=94.7% / unexpected=0.0%	detected=79.5% / unexpected=0.0%	detected=89.4% / unexpected=0.5%	detected=58.3% / unexpected=1.2%																NA	NA	NA				NA	NA	NA
bar13_24 (full) bar13_24 (sub.)	detected=84.8% / unexpected=0.1%	detected=63.6% / unexpected=0.0%	detected=47.7% / unexpected=0.1%	detected=37.1% / unexpected=0.1%																NA	NA	NA				NA	NA	NA

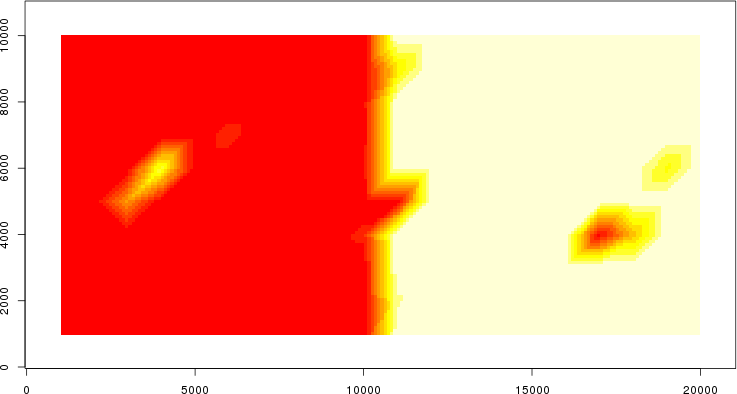

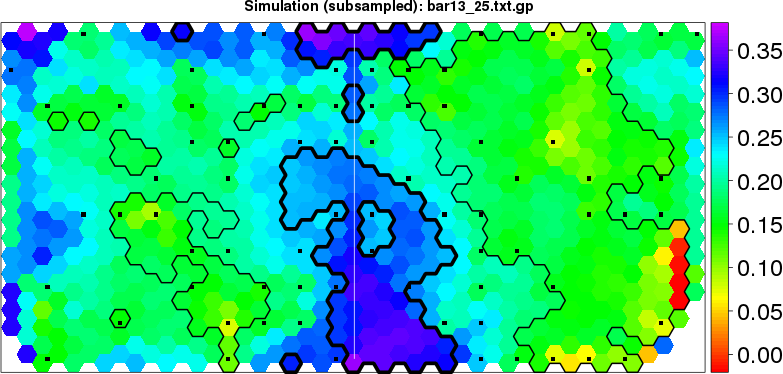

bar13_25 (full) bar13_25 (sub.)	detected=100.0% / unexpected=0.1%	detected=100.0% / unexpected=0.0%	detected=78.8% / unexpected=0.2%	detected=47.0% / unexpected=0.6%																NA	NA	NA				NA	NA	NA
