The first description of the female of the water mite genus Sterkspruitia Cook, 2003 (Acari: Hydrachnidia, Hygrobatidae)

Smit, Harry1

1Naturalis Biodiversity Center, P.O. Box 9517, 2300 RA Leiden, The Netherlands.

2017 - Volume: 57 Issue: 3 pages: 689-691

https://doi.org/10.24349/acarologia/20174188
ZooBank LSID: AEFD34C7-7A7D-487B-99FF-D8340C9EC3A4

Keywords

Systematics Afrotropical region South Africa

Abstract

The first female of the genus Sterkspruitia is described. It differs from males of the genus in the number of dorsal and ventral platelets. Therefore, an emendation of the diagnosis of the genus is given.

Introduction

The water mite genus Sterkspruitia Cook, 2003 is known from one species from South Africa (Cook 2003) and one species from the Comoros (Pešić et al. 2015). All three known specimens were males. In this paper the first female is described. This female differed strongly from the male. Therefore the diagnosis of the genus has to be emended.

Materials and methods

The material is collected by the author. Lengths of palp and leg segments are dorsal lengths. The following abbreviations are used: asl – above sea level; alt. – altitude; cxgl-4 –coxoglandularia 4; I-leg-4 – fourth segment of first leg; P1 – palp segment 1; RMNH – Naturalis Biodiversity Center, Leiden. All measurements are in μm.

Systematics
Family Hygrobatidae Koch, 1842

Genus Sterkspruitia Cook, 2003

Sterkspruitia ovalis Cook, 2003

(Figures 1A-E)

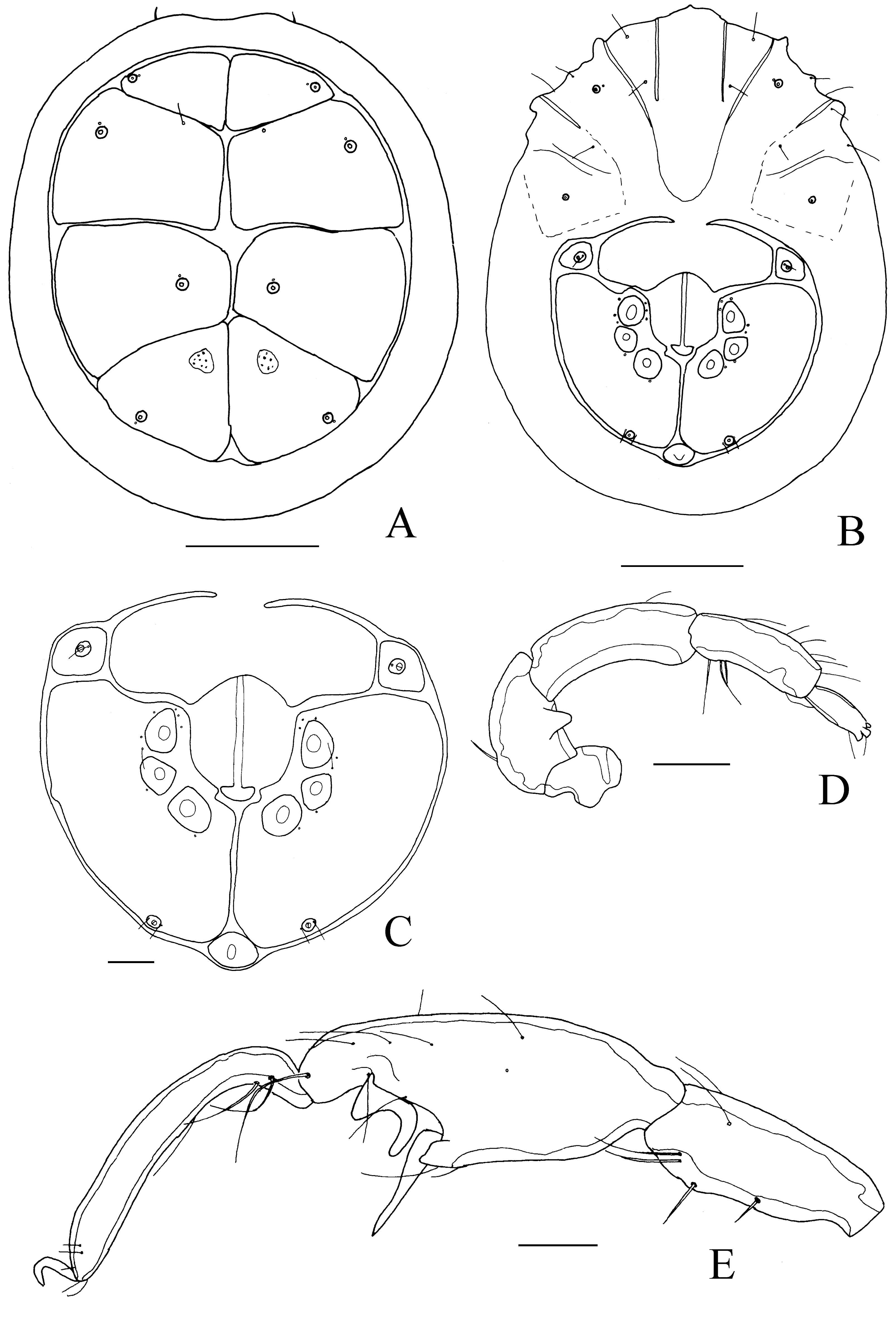

Figure 1. Sperkspruitia ovalis Cook, female: A – dorsum; B – venter; C – genital field; D – palp; E – I-leg-4-6. Scale bars: A-B = 200 μm, C-E = 50 μm.

Material examined — One female, main stream Mount Sheba, S of Pilgrimsrest, Mpumalanga Province, South Africa, 24º 56.446 S 30º 42.194 E, alt. 1630 m asl, 8-xi-2016 (RMNH).

Description — Female: Idiosoma colour orange, dorsally 753 long, ventrally 818 long and 680 wide. Dorsal and ventral shields present. Dorsum (Figure 1A) with eight pairs of platelets, all with one pair of glandularia; postocularia near anterior margin of second pair of dorsal platelets. Eyes in small capsules. Gnathosoma fused with the first coxae. Coxae (Figure 1B) as in male, but cxgl-4 in the middle of fourth coxae. Genital field (Figure 1C) with three pairs of acetabula, each pair fused with a platelet; on these platelets a pair of glandularia. Gonopore 120 long, anteriorly of gonopore a large platelet which is fused with ventral shield, laterally of this platelet a pair of small platelets each with a glandularium. Excretory pore on a small platelet. Palp (Figure 1D) as in male. Lengths of P1-P5: 40, 94, 116, 110, 50. First leg (Figure 1E) as in male, modified. Length of I-leg-4-6: 208, 251, 162 (till tip of segment). Length of IV-leg-4-6: 219, 251, 212 (till tip of segment). Legs II-IV not modified, legs without swimming setae.

Discussion — Because of the similarity of the palp and first leg the female described here is assigned to S. ovalis. The female of S. ovalis is larger than the male, the latter is ventrally 577-580 long and 426-441 wide. Other important differences are the number of dorsal platelets, eight in the female and six in the male. The coxae of the female are similar to the male, only cxgl-4 is located near the middle instead of near the anterior margin. The venter of the male posterior to the coxae differs strongly from that of the female. The male has only one rounded plate with the genital field and one pair of glandularia fused, while laterally to the excretory pore there is a pair of glandularia platelets. In the female the pair laterally of the excretory pore is fused with the large genital plate, the pair anteriorly of the genital field is on a separate platelet. Therefore the diagnosis of the genus has to be emended: Dorsum with six pairs of large platelets in the male, eight pairs in the female. Genital field of male on one platelet, genital field of female on two platelets.

Cook (2003) collected S. ovalis in a tributary of the Sterkspruit River near Lydenburg. Mount Sheba lies some 30 km NE of that location.

References

Cook, D.R. 2003 — Three new genera and species of water mites (Acari: Hydrachnidia: Hygrobatidae) from South Africa — Internat. J. Acarol., 29(3): 237-242. doi:10.1080/01647950308684334

Pešić, V., Smit H. & Mary N. 2015 — Third contribution to the knowledge of water mites from the Comoros, with the description of two new species (Acari: Hydrachnidia) — Zootaxa, 3964(4): 445-459. doi:10.11646/zootaxa.3964.4.4
