Distributions, range extensions and host list update for four phoretic mite genera (Acari: Klinckowstroemiidae) on Passalidae (Coleoptera)

Schuster, Jack 1 ; Gygax, Daniel 2 ; Diaz, Dafna L.3 and Serrano-Peraza, Francisco 4

1Departamento de Biología, Universidad del Valle de Guatemala, 18 Avenida 11-95, 01015, Guatemala.
2✉ Departamento de Biología, Universidad del Valle de Guatemala, 18 Avenida 11-95, 01015, Guatemala.
3Programa Centroamericano de Maestría en Entomología, Universidad de Panamá.
4Programa Centroamericano de Maestría en Entomología, Universidad de Panamá.

2023 - Volume: 63 Issue: 2 pages: 596-604

https://doi.org/10.24349/1zn2-hq18

Original research

Keywords

Antennurella Similantennurella Klinckowstroemiella Klinckoestroemia

Abstract

Mites of the family Klinckowstroemiidae are phoretic on passalid beetles in the New World. The family includes 37 species distributed in 4 genera, Klinckowstroemia (28 spp.), Similantennurella (2 spp.), Klinckowstroemiella (5 spp.) y Antennurella (2 spp.). Little is known about the true distribution and species diversity of these genera, especially the latter 3. We examined specimens of Antennurella, Similantennurella and Klinckowstroemiella collected from passalids from several entomological collections. We added Ecuador, French Guyana, Guatemala and Mexico to the distribution range of Similantennurella, Belize, Bolivia, Ecuador, Guatemala, Trinidad and Venezuela for Antenurella, and Bolivia, Ecuador, Honduras and Peru for Klinckowstroemiella. We report 8 new passalid host species previously unknown for these genera. Our study suggests a broad distribution range of the 3 genera, probably encompassing Mesoamerica and South America except Chile and Patagonia, where passalids are not found. Antennurella, Similantennurella and Klinckowstroemiella apparently occur primarily below 1500m altitude, while Klinckowstroemia has been repeatedly found above this limit. All genera have been found mostly on large passalids (>22 mm, long). We also cite the family for the first time from El Salvador.


Introduction

Passalidae Leach 1815 is a family of mainly tropical xylophagic beetles (Schuster, 1978). Passalids spend virtually their entire life cycle living in tunnels inside decomposing logs (Villegas-Guzmán et al. 2012). They commonly form monogamous pairs and exhibit subsocial behavior and complex acoustic communication systems (Schuster & Schuster, 1985).

Currently, more than 200 species of mites have been reported to be associated with passalid beetles. They are distributed in 68 genera and 21 families in the Mesostigmata, Prostigmata, Astigmata and Oribatida suborders. Mites in 19 of these families, including Klinckowstroemiidae Camin & Gorirossi 1955 are known to form phoretic associations with their passalid host (Villegas-Guzmán et al. 2008). Klinckowstroemiid mites are known only from the New World and only from passalids but little else is currently known about the ecology and life cycle of its members.

The family Klinckowstroemiidae includes 37 species of mites, all associated with passalid beetles (Villegas-Guzmán et al. 2011) from Mexico to South America. Previous studies have shown an absence of host specificity by the mites in these phoretic associations (Villegas-Guzmán et al. 2012). The Klinckowstroemiidae includes 4 genera: Similantennurella Rosario 1988 (2 species), Klinckowstroemiella Türk, 1951 (5 species), Klinckowstroemia Baker & Wharton 1952 (28 species) and Antennurella Berlese 1903 (2 species). Klinckowstroemia (28 species) is widely distributed in Mesoamerica.

Similantennurella spinata Rosario 1988 was previously known from specimens collected in Costa Rica and Panama; S. aspinata Rosario 1988 is only known from the holotype collected in Costa Rica (Rosario, 1988). Klinckowstroemiella includes: K. prima Türk 1951, K. helleri Oudemans 1929, K. blumae Rosario & Hunter 1987, K. sexisetosa Rosario & Hunter 1987 and K. trinidadis Wisniewski & Hirschmann 1994 and is known from Brazil, Costa Rica, Panama, Surinam and Venezuela (Rosario & Hunter 1987). Antennurella includes two species, possibly synonyms: A. trouessarti Berlese 1904 and A. tragardhi Baker & Wharton 1952 (Rosario, 1988). However, the distribution range and passalid host spectra of this family is suspected to be much broader than previously reported.

The study aims to improve knowledge of the distribution and host spectra of klinckowstroemiid mites. We report new localities and host species for Similantenurella, Klinckowstroemiella and Antennurella. and we cite the presence of two species of Klinckowstroemia in El Salvador, the first records of the family from this country.

Material and methods

We checked available literature to construct a database including all currently known countries and passalid host species in which the studied genera occur. We then examined mite species from the Entomology Collection of the Academy of Natural Sciences of Drexel University, Allan Gillogly personal collection, the Arthropod Collection of the Universidad del Valle de Guatemala, William F. Barr Entomological Museum at Idaho College, Florida State Collection of Arthropods, California Academy of Sciences Entomology Collection, as well as from passalids we collected which are deposited in the Arthropod Collection of the Universidad del Valle de Guatemala.

Passalids were also sampled in the Montecristo Trinational Protected Area (MTPA) located in northeastern Santa Ana Province, El Salvador (14° 25′ N, y 89°23′ O) between September and December 2015. This is the region where the borders of Guatemala, Honduras and El Salvador unite. The elevation of the region varies between 420 and 2418m. Passalids were collected by hand from decomposing logs in three altitudinal strata: cloud forest, mixed pine forest and tropical dry forest.

Beetles from each trunk were placed in vials with ethyl alcohol 70% labeled and taken to the Plant Protection Laboratory of the Faculty of Agronomic Sciences of the University of El Salvador. Later we removed the mites from the beetles and identified them to species using the key of Villegas-Guzmán et al. (2011). These specimens were deposited in the Entomology Collection of the University of El Salvador. Mites still attached to the host were removed with either fine tweezers or a fine brush. Mites were deposited in a smaller separate vial with ethyl alcohol 70%. For observation, mites were temporarily laid on a Petri dish or a microscope slide.

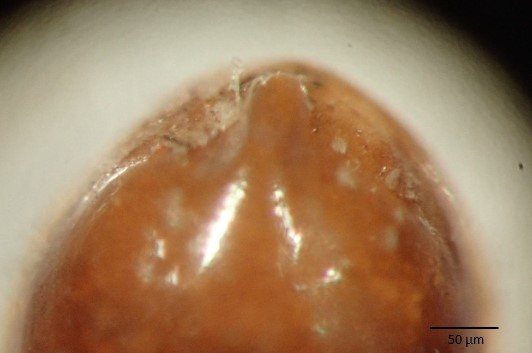

Figure 1. Close view of diagnostic protuberances of possible Similantennurella specimen (Photo by JCS).

Figure 2. Dorsal shield of Antennurella specimen. Note the posterior portion of dorsal shield with 3 pronounced protuberances. (Photo by K. Shnepp).

Figure 3. Klinckoswstroemiellaventral male: A – Region lacking abdominal suture; B – Hyaline hood not surrounding posterior body.

The diagnosis of genera is a summary based on Rosario (1988). Antenurella: Hyaline hood surrounding idiosoma; posterior portion of dorsal shield with 3 pronounced protuberances (Figures 1, 2, 3). Similantennurella: Hyaline hood forming crescent over gnathosoma and extending to or beyond level of anterior margin of anal shield, never surrounding entire idiosoma; posterior portion of dorsal shield with 3 protuberances, central protuberance much more pronounced than the other two (Figures 4, 5, 6). Klinckostroemiella: Hyaline hood less visible, forming a small cap anteriorly; anal shield fused to ventral shield; posterior part of shield without a protuberance (Figure 7). For identification of Klinckowstreomia specimens chaetotaxy was based on a taxonomic key published by Villegas-Guzmán et al. (2011).

Results

We collected 13 species of Passalidae in the MTPA, 6 species in cloud forest, four species in mixed pine forest and five species in the dry forest. Of 116 passalid individuals 21 had klinckowstroemiids (Table 1). Interestingly, klinckowstroemiid mites were found only in passalids collected from the mixed pine forest part of the MTPA, between 1059 and 2161 meters above sea level (14°24′9.72″N 89°22′52.82″O y 14°23′2.41″N 89°23′37.23″O).

Table 1. Species of Klinckowstroemiidae and associated Passalid host collected in the MTPA in this study.

Klinckowstroemia atramaculata Rosario & Hunter, 1988

This species was associated with 15 individuals of Heliscus eclipticus Truqui and 4 of Oileus sargi Kaup collected in rotting trunks of Pinus and Quercus. Until now it has been reported only from Puntarenas, Costa Rica. Klinckowstroemia atramaculata presents the mesogynal shield (MgS) anteriorly rounded (Figure 4A); sternal seta 2 is smooth and sternal seta 1 is barbed. (Villegas-Guzmán et al., 2011).

Figure 4. Antennurella ventral male: A – Suture separating abdomen from rest of the body; B – Hyaline hood surrounding whole body. (Photos by JCS).

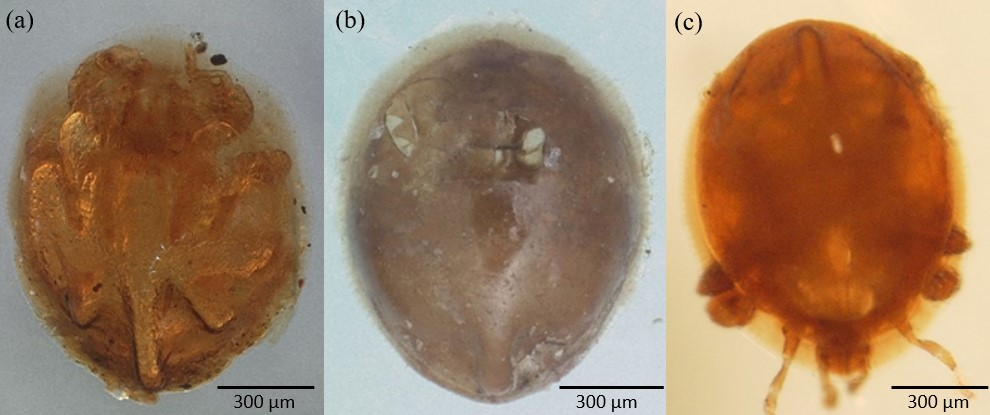

Figure 5. Dorsal shield of 3 possible Similantennurella specimens. The top photo may be Antennurella. Note the wide hyaline hood that completely surrounds the body characteristic of Antennurella. Note the 3 protuberances, with the central protuberance much more pronounced than the other two as in Similantennurella. Also note the differences in form, size and position of the lateral protuberances between specimens. (Left and top photos by K. Shnepp, other by JCS) (Size line at lower right not valid).

Figure 6. Dorsal shield of Klinckowstroemiella. Note the posterior part of shield without a protuberance and the presence of a deep marginal groove around the dorsal shield latero posteriorly (arrow) (Photo by K. Shnepp).

Figure 7. Close view of diagnostic protuberances of Antennurella (Photo by JCS).

Klinckowstroemia victoriae Rosario & Hunter, 1988

This species we found associated with two individuals of Arrox agassizi Kaup collected in trunks of Quercus sp. It has been reported from Xicotepec de Juárez (Puebla, México), Quetzaltenango Dept. y Puerta Parada in Guatemala. Klinckowstroemia victoriae presents sternal seta 4 short sternal seta 3 of medium length, one pair of setae a and sternal seta 1 is serrate latigynal shields united mesally with a wavy border (Figure 4B) (Villegas-Guzmán et al., 2011). K. victoriae is also the most common klinckwostroemiid species in some areas of the city and is associated to several passalid hosts (Table 2) (obs. pers.)

Table 2. Passalid hosts reported for K. victoriae in Guatemala.

Several new localities and hosts were found for Similantennurella, Antennurella, Klinckowstroemiella. Five of the Similantennurella specimens examined (Table 3) were collected in previously unreported localities, including Ecuador, Mexico, French Guyana and Guatemala. All were found on Passalus punctiger Lepeletier & Serville. Six of the Antennurella specimens examined (Table 3) belong to 6 new localities: Bolivia, Belize, Ecuador, Venezuela, Trinidad and Guatemala. Two males were found on P. punctatostriatus and a female was found on Verres furcilabris, both previously unreported hosts (Table 3). Four of the Klinckowstroemiella specimens (Table 3) examined were from previously unreported localities: Bolivia, Peru, Honduras and Ecuador. Some specimens were collected from previously unreported hosts for the genus (Table 4).

Table 3. Similantennurella, Antennurella, Klinckowstroemiella, specimens with new locality/host records.

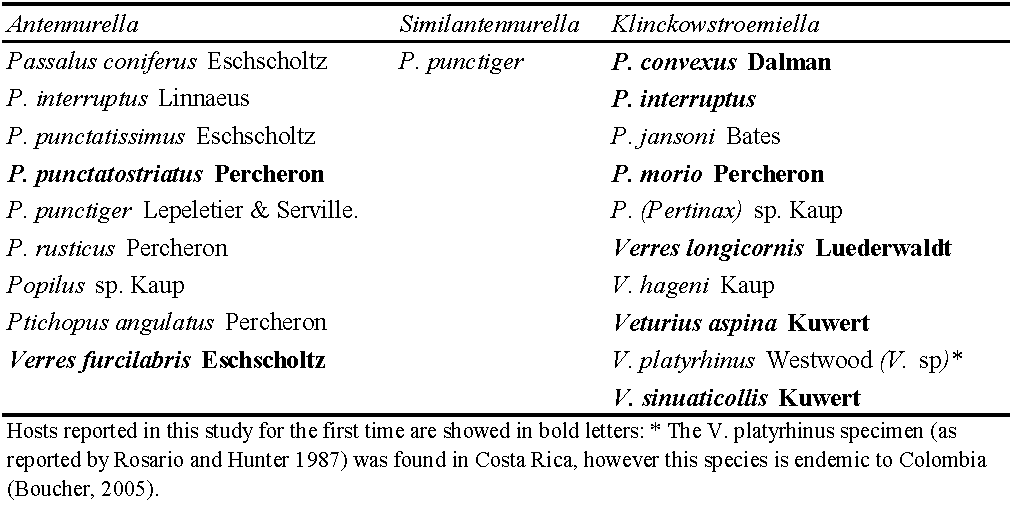

Table 4. Passalid host species reported for Antennurella, Similantennurella and Klinckowstroemiella.

Discussion

Of the Passalid beetles examined, approximately 180 were pinned individuals of which only 8 yielded Klinckowstroemiidae. Many mites fall off after submerging the host in alcohol or in collecting jars so this probably does not reflect true prevalence of the mites on these hosts. Klinckowstroemiids were found mostly on large passalid species such as P. punctiger (30-35 mm), P. interruptus (35-45 mm) and Verres spp. (30-50 mm) (Table 4). The smallest hosts reported are P. morio (25-30 mm) and P. punctatostriatus (22-30 mm) as well as unidentified species of Passalus (Pertinax) (20mm). No Klinckowstroemiella, Antennurella or Semilantennurella specimens have been found on small passalids (less than 20 mm in length).

Our study shows a broader distribution range for these three genera than previously known. Our findings suggest a distribution encompassing Mesoamerica and South America except Chile and Patagonia, where passalids are not found. Furthermore, all the localities of the specimens of three of these genera (Klinckowstroemiella, Antennurella or Semilantennurella) examined were found below 1500 m above sea level. In contrast, Klinckowstroemia has been repeatedly found above this limit.

As a final note, the diagnosis of genera is based on Rosario (1988), including the posterior portion of dorsal shield with 3 protuberances with the central protuberance much more pronounced than the other two as diagnostic feature of Similantennurella. Figure 4 shows this feature in 3 different klinckowstroemiids. However, a marked variation in shape, size and position of the protuberances is present, suggesting 3 different (possibly undescribed) species.

Acknowledgements

JCS would like to thank the late Preston Hunter for the stimulus to study these mites and for some species determinations and literature. We thank Barry OConnor for literature and access to the University of Michigan collection. Also, to Alan Gillogly for access to his passalid collection and to Jon Gelhaus and the Philadelphia Academy of Sciences and the Universidad del Valle de Guatemala for access to their respective passalid collections. We also thank various students and other people who have brought us passalid specimens or helped in mite studies, and especially thanks to Ruben Morales, Ed Fuller, Elinor Stevens, Paul Skelley and Kyle Schepp for collecting passalids, mites and/or photos of mites. We appreciate Jerry Krantz, Barry OConnor, Margarita Palmieri and Paula Muñoz for reviewing the manuscript.



References

  1. Boucher S. 2005. Évolution et phylogénie des Coléoptères Passalidae (Scarabaeoidea). Annales de la Société entomologique de France, 41(3-5): 237-604. https://doi.org/10.1080/00379271.2005.10697444
  2. Rosario R.-M.-T., Hunter P.-E. 1987. The family Klinckowstroemiidae Trägårdh with descriptions of two new species of Klinckowstroemiella (Acarina: Mesostigmata: Trigynaspida). Acarología, 28: 307-317.
  3. Rosario R.-M.-T. 1988. The genus Antennurella Berlese and descriptions of two new species of Similantennurella gen. nov. (Acarina: Trigynaspida: Klinckowstroemiidae). Acarologia, 29: 329-337.
  4. Schuster, J.-C. 1978. Biogegographical and ecological limits of New World Passalidae (Coleoptera). The Coleopterists Bulletin, 32(1): 21-28.
  5. Schuster, J.-C., Schuster, L.-B. 1985. Social behavior in passalid beetles (Coleoptera: Passalidae): Cooperative brood care. Florida Entomologist, 68(2): 266-272. https://doi.org/10.2307/3494359
  6. Villegas-Guzmán G.-A., Pérez T.-M., Reyes-Castillo P. 2008. Ácaros asociados al coleóptero Passalus cognatus (Coleoptera: Passalidae) de Los Tuxtlas, Veracruz, México. Revista de Biología Tropical, 56 (3): 1261-1268. https://doi.org/10.15517/rbt.v56i3.5708
  7. Villegas-Guzmán G.-A., Pérez T.-M., Reyes-Castillo P. 2009. New species of the genus Klinckowstroemia Baker & Wharton from Mexico (Acari: Mesostigmata: Trigynaspida: Klinckowstroemiidae). Zootaxa, 2248: 1-46. https://doi.org/10.11646/zootaxa.2248.1.1
  8. Villegas-Guzmán G.-A., Pérez T.-M., Reyes-Castillo P. 2011. New species of Klinckowstroemia Baker & Wharton, 1952 (Acari: Klinckowstroemiidae), associated with passalid beetles from Mexico and Panama. Zootaxa, 2747: 19-36. https://doi.org/10.11646/zootaxa.2747.1.2
  9. Villegas-Guzmán G.-A., Francke O.-F., Pérez T.-M., Reyes-Castillo P. 2012. Coadaptación entre los ácaros (Arachnida: Klinckowstroemiidae) y coleópteros Passalidae (Insecta: Coleoptera). Revista de Biología Tropical 60: 599-609. https://doi.org/10.15517/rbt.v60i2.3941
  10. Womersley, H. 1959. Klinckowstroemiella helleri (Ouds., 1929) Nov. Comb. For Fedrizzia helleri Ouds., 1929 (Acarina-Klinckowstroemiidae). Zoologische Mededelingen, 36(19): 281-288.
