Seniczak, Anna ¹ ; Seniczak, Stanisław ² ; Hagen, Snorre B.³ and Klütsch, Cornelya F. C.⁴

¹✉ Department of Natural History, University Museum of Bergen, University of Bergen, Bergen, Norway.
²Department of Evolutionary Biology, Faculty of Biological Sciences, Kazimierz Wielki University, Bydgoszcz, Poland.
³Norwegian Institute of Bioeconomy Research, NIBIO - Division of Environment and Natural Resources, Svanhovd, Norway.
⁴Norwegian Institute of Bioeconomy Research, NIBIO - Division of Environment and Natural Resources, Svanhovd, Norway.

2023 - Volume: 63 Issue: 1 pages: 41-57

ZooBank LSID: 9351C829-16CD-4084-A12E-1C98889982CD

Original research

Keywords

Abstract

Introduction

Zachvatkinibates Shaldybina, 1973 sensu stricto, with the type species Z. nemoralis Shaldybina, 1973, is a medium sized genus that comprises 18 species, according to Subías (2004, 2022). However, this author included Minunthozetes selgae Pérez-Íñigo, 1976 in this genus, which is not consistent with diagnosis of Behan-Pelletier & Eamer (2008). In the later species, the posterior notogastral tectum is complete, whereas in Zachvatkinibates it is medially broken.

The diagnosis of the adult of Zachvatkinibates was proposed by Shaldybina (1973), but Behan-Pelletier (1988) and Behan-Pelletier & Eamer (2005) consecutively modified it, and in the latter paper it was as follows: notogaster with rounded, convex medial process on anterior tectum and pair of thickened bands bordering medial process, posterior notogastral tectum incomplete medially, indicated by wide margination or narrow slit bordered by overlapping tectal lobes; lenticulus absent, octotaxic system expressing sexually dimorphism in some species, postanal porose area and axillary saccule of subcapitulum present, and mental tectum of subcapitulum absent.

The main aim of this paper is to describe and illustrate the morphology and ecology of Z. svanhovdi, and to compare it with congeners. Another aim is to update information on Punctoribatidae in Fennoscandia, and add Z. svanhovdi and Mycobates carli (Schweizer, 1922) to the list of species in this region.

Material and methods

Study site

The sample was collected at the river outlet (Figure 1) of the Jacob's River in north-eastern Finnmark, Sør-Varanger municipality, Norway. The region is characterized by an oceanic-continental climate with a mean annual temperature of 0.1 °C and a mean annual precipitation of approximately 620 mm (Bjørklund et al. 2015). The Jacob's River (Grense Jakobselv; area 237 km²) is a river that runs along the Norwegian-Russian border and discharges into the Varanger Fjord, a bay located in the Barents Sea. The river is part of the Norwegian Protection Plan II3 and hence cannot be used for hydropower purposes. Generally, the vegetation can be characterized as northern boreal in a transition zone between oceanic and continental vegetation sections (Moen 1998, Bjørklund et al. 2015) in north-eastern Finnmark. The landscape along the river consists of hills with sparse heath vegetation near the coast, hilly landscapes and plateaus further inland. Along the river, the vegetation is commonly characterized by different vegetation types: closest to the river is often a well-developed sandy beach with key plants like the oyster plant (Mertensia maritima L.), followed by a transition zone with oyster plant and sea pea (Lathyrus japonicus Willd.), white sandy dunes with sand ryegrass [Leymus arenarius (L.) Hochst.] and sea pea, grey sandy dunes with sand ryegrass and red fescue (Festuca rubra L.), and dry, species-poor dune grass heath with strong hints of fringed pink (Dianthus superbus L.; https://elvedelta.miljodirektoratet.no/delta-322.htm , https://www.biodiversity.no/NiN2.0/T21-C-2 ). At the river outlet, where the sample was taken, there is also a semi-limestone beach meadow (Elven & Johansen 1983), which is characterized by freshwater-affected salt weed (Salicornia sp.) communities (P.E. Aspholm, NIBIO, Svanhovd; pers. comm.). The sampling location was in an area that is considered brackish water area (https://elvedelta.miljodirektoratet.no/delta-322.htm ).

Sampling and studying of mites

The adults of Z. svanhovdi A. Seniczak et S. Seniczak sp. nov. used in this study were collected by A. Fjellberg on 26.08.2021 from Troms and Finnmark county, Northern Norway, Sør-Varanger community and Gr. Jakobselv locality, at river outlet (69.71258° N, 30.87123° E, 0.5 m a. s. l.). One collective sample was taken on the shore of Jacob's River, in the transect from the river edge to more distant part from it (about 10 m long, Figure 1). This sample was extracted in Berlese funnel for one week. We investigated the density, sex ratio, number of gravid females and carried eggs, and body length and width, based on 30 randomly selected specimens. We measured a total body length (tip of rostrum to posterior edge of notogaster) in lateral aspect and body width (widest part of notogaster) in dorsal aspect, and size of anal and genital openings and setae perpendicularly to their length in µm.

The illustrations are limited to the dorsal, lateral and ventral aspect and some leg segments of adult, and palp and chelicera. Illustrations were prepared from individuals mounted temporarily in lactic acid. In the text and figures we used the following abbreviations: rostral (ro), lamellar (le), interlamellar (in) and exobothridial (ex) setae, lamella (La), translamella (Tr), bothridium (bo), bothridial seta (bs), tutorium (Tut), pteromorph (Ptm), notogastral setae (c₂, l-, h-, p-series), porose areas (Aa, A1, A2, A3), lyrifissures (ia, im, ih, ip, ips, iad), circumpedal carina (cp), opisthonotal gland opening (gla), subcapitular setae (a, m, h), pedotectum (Pd), custodium (cus), discidium (Dis), genal tooth (gt), cheliceral setae (cha, chb), Trägårdh organ (Tg), palp setae (sup, inf, l, d, cm, acm, lt, vt, ul, su) and solenidion ω, epimeral setae (1a–c, 2a, 3a–c, 4a–c), genital (g) and aggenital (ag) setae, adanal and anal setae (ad-, an-series), leg solenidia (σ, φ, ω), famulus (ε) and setae (bv, ev, d, l, ft, tc, it, p, u, a, s, pv, pl, v). Terminology used follows that of Grandjean (1949, 1953) and Norton and Behan-Pelletier (2009). The species nomenclature follows Subías (2004).

For scanning electron microscopy (SEM), four mites were air-dried and coated with Au/Pd in a Polaron SC502 sputter coater and placed on Al-stubs with double-sided sticky carbontape. Observations and micrographs were made with a ZEISS Supra 55VP scanning electron microscope.

DNA barcoding

Five specimens of Z. svanhovdi were used for DNA barcoding. Each specimen was photographed, and the photos are available at Barcode of Life Data System (BOLD, http://boldsystems.org ). The specimens were subsequently placed in a well containing 50 ml of 90% ethanol in a 96-well microplate and send to the Canadian Centre for DNA Barcoding (CCDB 2021). Mites were sequenced for the barcode region of the COI gene according to standard protocols at CCDB (http://www.ccdb.ca ), using either LepF1/LepR1 (Hebert et al. 2003) or LCO1490/HCO2198 (Folmer et al. 1994) primer pairs. The DNA extracts were placed in archival storage at -80 °C at the Canadian Centre for DNA Barcoding. The sequences are available in GenBank (accession numbers in the section on the Type material). The voucher specimens are stored in the Entomological Collections at the Department of Natural History, University Museum of Bergen, University of Bergen, Bergen, Norway (ZMBN).

Obtained COI sequences were blasted against GenBank to detect and exclude possible contaminations and ensure high quality. Sequence variation within Z. svanhovdi specimens was calculated in BOLD using Kimura 2 Parameter distance model, pairwise deletion, and BOLD Aligner (Amino Acid based HMM).

Results

Zachvatkinibates svanhovdi A. Seniczak et S. Seniczak sp. nov.

ZOOBANK: A6272084-12BA-4FAC-BA43-7582C1D30CEB

(Figures 2–11)

Diagnosis

Adult of medium size (449–507), with generic characters of Zachvatkinibates given by Behan-Pelletier & Eamer (2005). Prodorsal seta in long, translamella narrow, notogastral setae short and distally pliable, notogastral porose areas usually oval and of medium size, but Aa can be larger, especially in males. Postanal porose area Ap absent, dorsal crest on tarsus I present.

Description of adults

Measurements — Holotype (female) length 494, and width 299. Mean length (and range) of females 490.3±7.1 (481–507, n = 15) and males 468.9±12.2 (449–481, n = 15), mean maximum width (and range) of females 299.0±6.2 (293–319) and males 276.7±8.3 (254–293).

Integument — Brown and microporose.

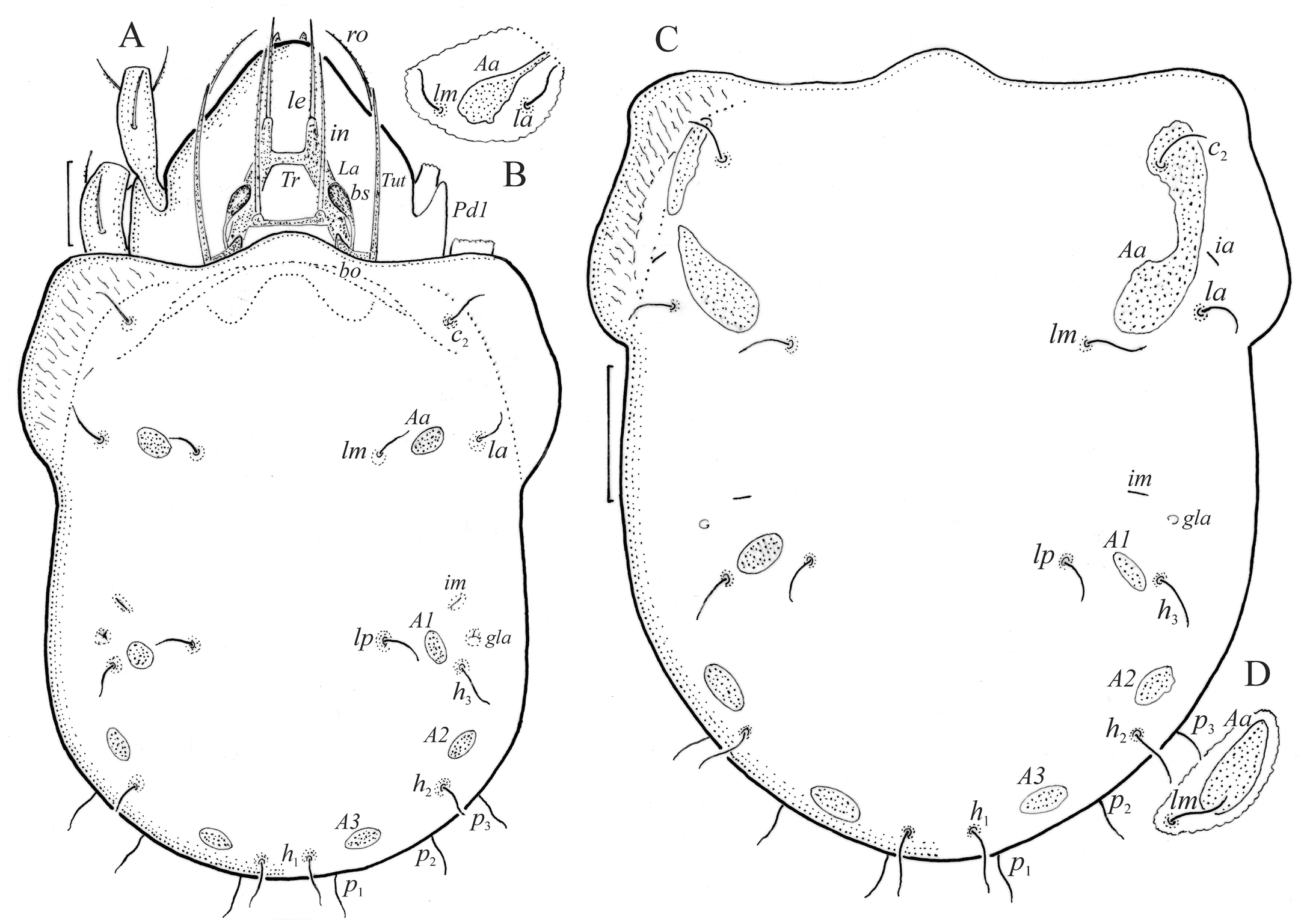

Prodorsum — Sub-triangular, rostrum rounded. Seta ro relatively long (47–52), laterally barbed and in lateral position (Figures 2A, 3A, 3B, 5A, 5D, 6A–C, 8C, 8D, 9A, 10A), seta le longer (62–66), and seta in longest (77–80), both finely barbed; all acuminate; seta ex short (17) and smooth. Lamella long (77–110), narrow at base and wider in place of connection with translamella, translamella of medium size (29–31), narrow, lamellar cusp (length 15) rounded. Bothridium with well-developed medial scale, bothridial seta of medium size (43–46), clavate with smooth stalk and barbed head (Figures 2A, 3B, 5A, 5B, 5D, 6A, 6B, 6D, 7B, 7C, 9C).

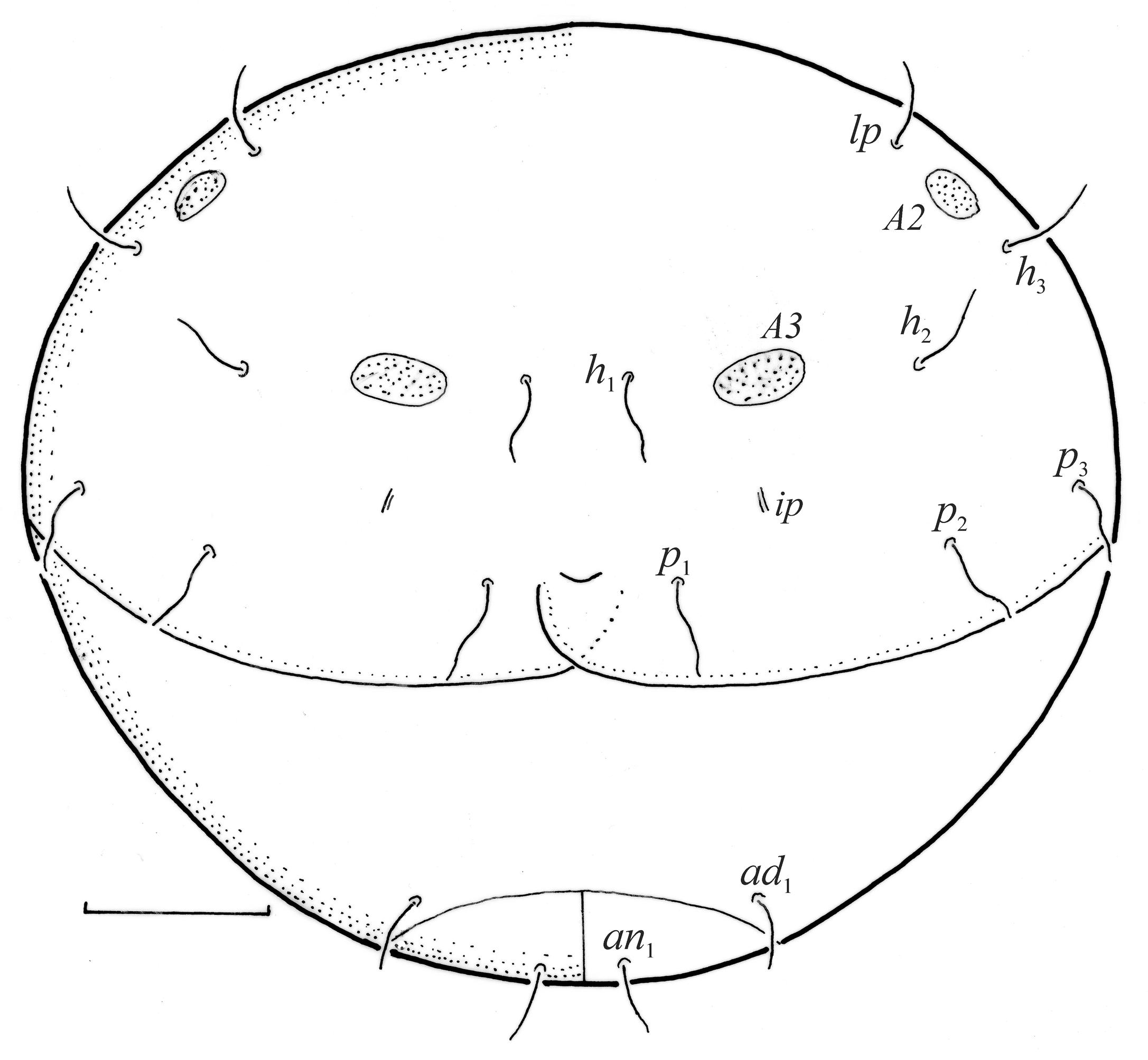

Notogaster — Longer (females 380–398, males 357–378) than wide (females 293–319, males 254–293) with well-developed movable pteromorphs. Notogastral setae (10 pairs, including c₂) short (15–26), and smooth (Figures. 2–3B, 4, 5, 6A, 6D, 7A–C, 8A, 9C, 9D). Lyrifissure ia posterolateral to seta c₂, im anterior to seta h₃, ip anterolateral to seta p₁, ips anterior to seta p₃, ih posterior to seta la, and opisthonotal gland opening gla anterolateral to seta h₃ (Figures 2A, 8D). Shape of porose areas (4 pairs) differs between females and males. In females, porose areas oval, Aa slightly larger than other porose areas (Figures 2, 3B), in some individuals Aa can be elongated. In 15 males investigated, porose areas clearly larger (Figure 2C, 2D) than in females, and in some individuals Aa can be elongated, and of crescent shape or divided in two parts. Generally, in both sexual forms shape of other porose areas slightly varies within individuals, and postanal porose area is absent. Posterior tectum of notogaster is broken in middle and rounded ends overlap (Figure 4).

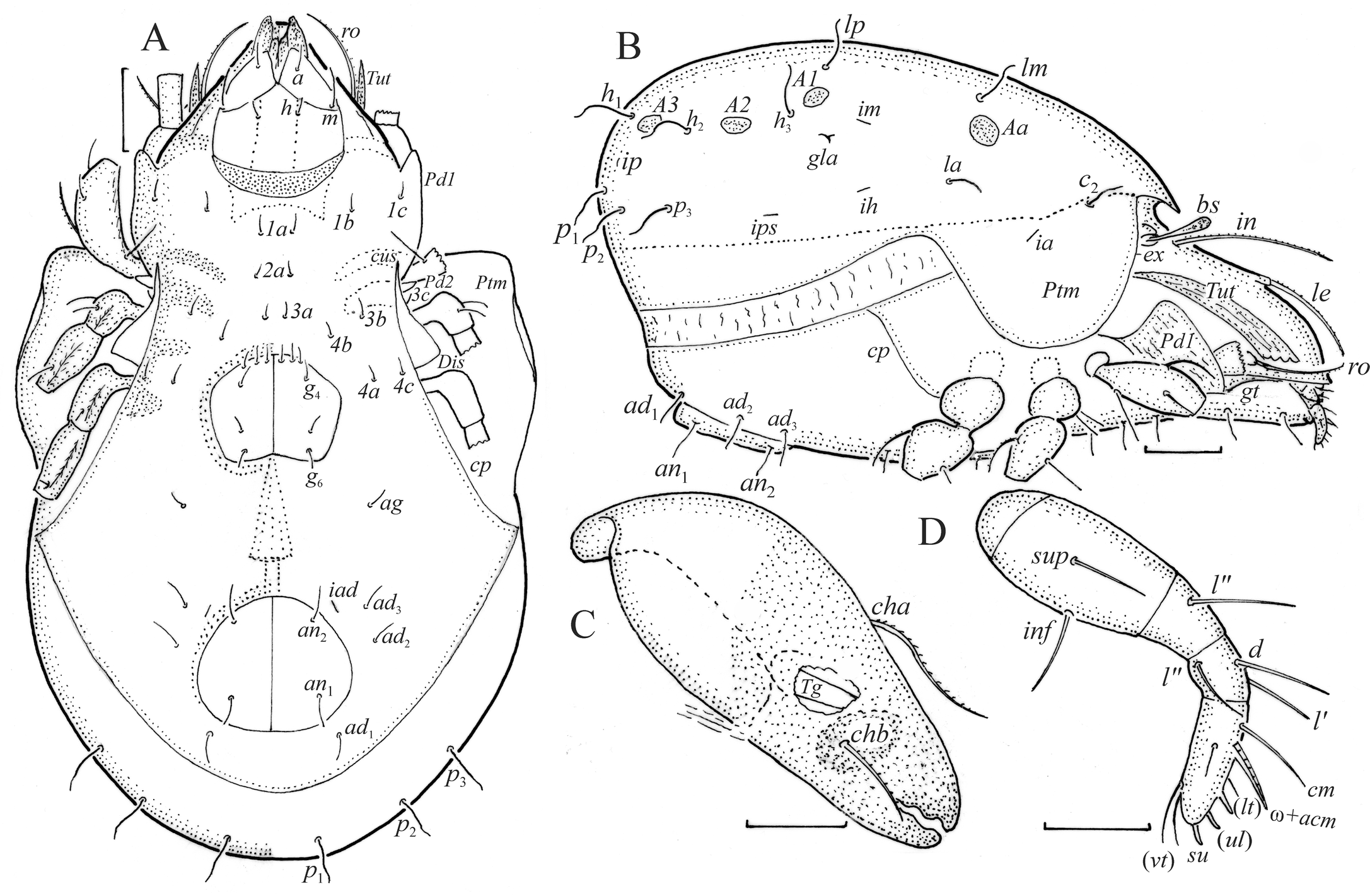

Gnathosoma — Subcapitular setae h, m and a short (18–24) and smooth (Figures 3A, 3B, 5C, 7B–D, 8C, 8D). Palp short (75), setae relatively short and smooth (Figures 3D, 5D, 9A, 10A), formula of palp setae [trochanter to tarsus (+ solenidion ω)]: 0-2-1-3-9(1). Chelicera longer (96), seta cha longer than chb, both barbed (Figures 3C, 9A, 10A). Axillary saccule short (12).

Ventral and lateral regions — Most epimeral setae short and smooth (10–13, Figures 3A, 5C, 8B, 8C). Genital setae (six pairs) as short as epimeral setae, g_1-3 in anterior position. Aggenital setae (one pair) also short, adanal setae longer (three pairs, 22–29) and anal setae longest (two pairs, 29–32), all smooth (Figures 3A, 3B, 4, 5B, 5C, 8A, 8B). Lyrifissure iad short, located lateral to anterior part of anal plates. Discidium large, triangular; custodium long (40–42), narrow and pointed; tutorium long (122–126), narrow at base and distally wider and pointed (Figures 3B, 7B–D, 9A, 9B, 10, 11). Pedotectum I large (73 x 30), narrow at base and concave dorsally (Figure 3B), and with longitudinal striae, genal tooth of medium size (30–22). Circumpedal carina well formed. Humerosejugal porose areas Am and Ah oval.

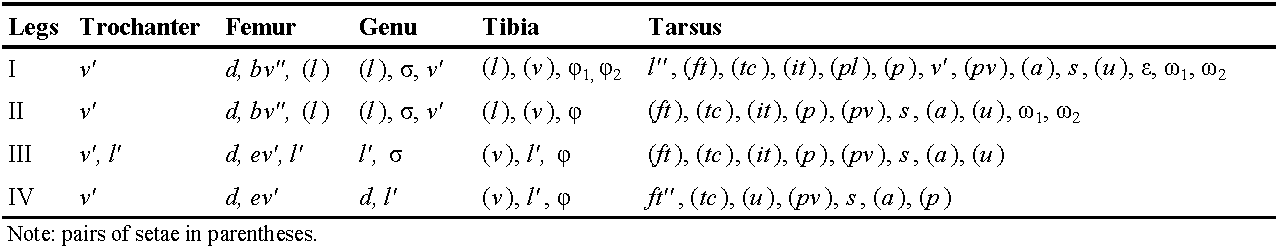

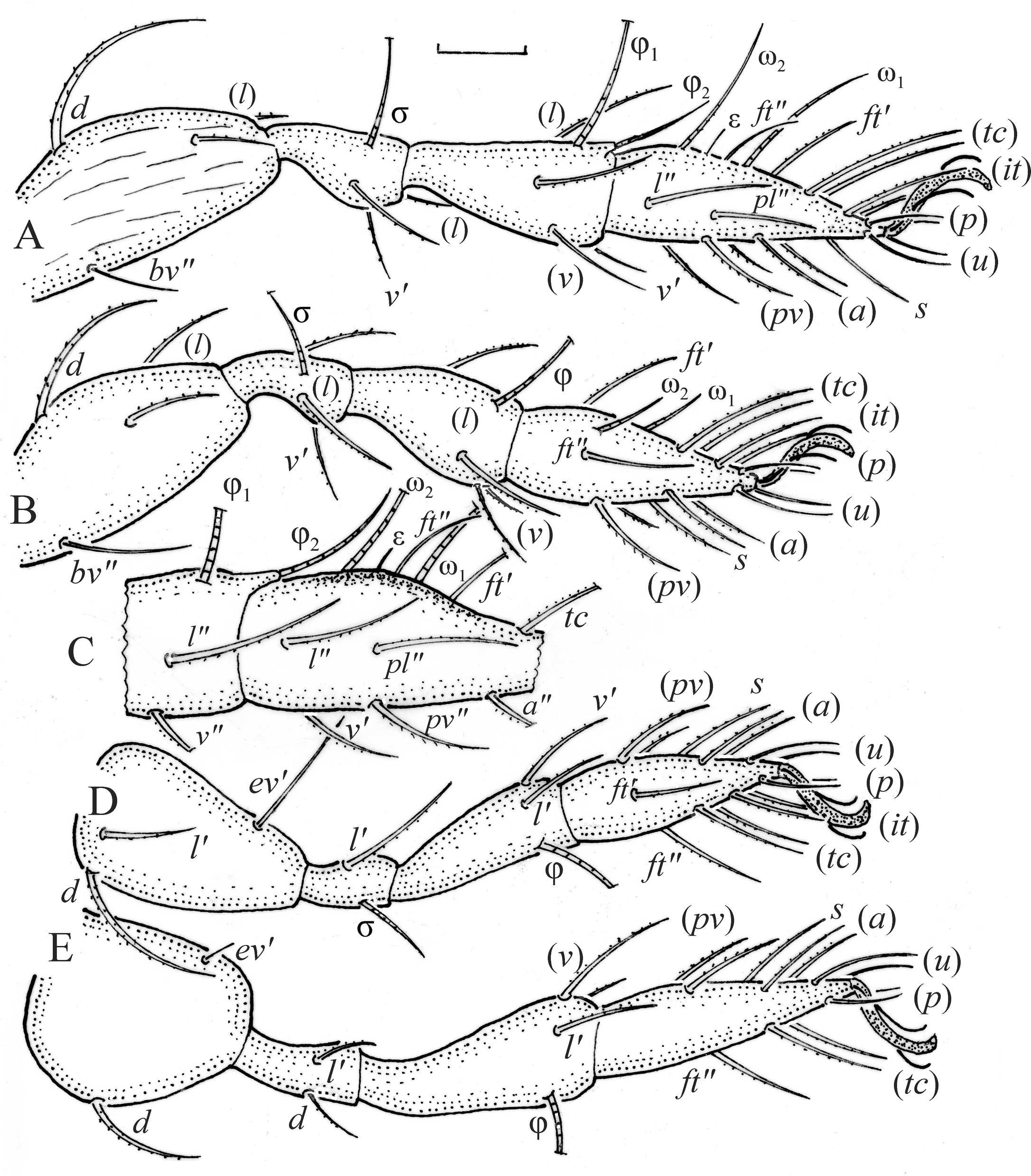

Legs — Trochanters III and IV and all femora flattened with ventral carina. Porose areas on paraxial side of trochanters III and IV and femora I–IV. Femur I with longitudinal striae, most leg setae barbed (Figures 5, 6, 7, 8B–D, 9A–C). Seta ft″ on tarsus I relatively long, solenidia ω₁ and ω₂ of similar length, famulus short; solenidia ω₁ and ω₂ and famulus ε located on small dorsal crest. Solenidia ω₁ and ω₂ on tarsus II relatively long and of similar size. Formulae of leg setae [trochanter to tarsus (+ solenidia)]: I – 1-4-3(1)-4(2)-20(2); II – 1-4-3(1)-4(1)-15(2); III – 2-3-1(1)-3(1)-15; IV – 1-2-2-3(1)-12. Tarsi heterotridactlylous. Homology of leg setae and solenidia given in Table 1.

Results of DNA barcoding

The barcode based on the cytochrome oxidase I (COI) mitochondrial DNA region (length: 658 bp) of five specimens of the new species is provided under GeneBank accession numbers: OP824977 (SUB2896631 SOITS201-22), OP824978 (SUB2896631 SOITS202-22), OP824979 (SUB2896631 SOITS203-22), OP824980 (SUB2896631 SOITS205-22), OP824981 (SUB2896631 SOITS204-22). The maximum variation within the species was 2.41% (p-dist) that is expected intraspecific variation of COI in oribatids. (e.g., Pfingstl et al. 2019, Seniczak et al. 2019). These are the first public COI sequences to be reported for the genus Zachvatkinibates and therefore, genetic distances to other species could not be calculated.

Distribution, ecology and biology

Zachvatkinibates svanhovdi was found in Troms and Finnmark county, Northern Norway, in a collective sample, taken in the transect on the shore of the river, so it is not possible to give precisely the species microhabitat. Among the 30 individuals investigated, collected at the end of August, the sex ratio (females to males) was 1:1, and no females were gravid and carried eggs.

Type material

The holotype (female) and four paratypes (2 females and 2 males) are deposited in the University Museum of Bergen, University of Bergen, Bergen, Norway (ZMBN).

Etymology

The species is named in honour of the biological station NIBIO Svanhovd, which is located in eastern Finnmark in the Pasvik valley, where the project leading to the collection and description of this new species was carried out.

Comparison of morphology of Zachvatkinibates svanhovdi with congeners and remarks

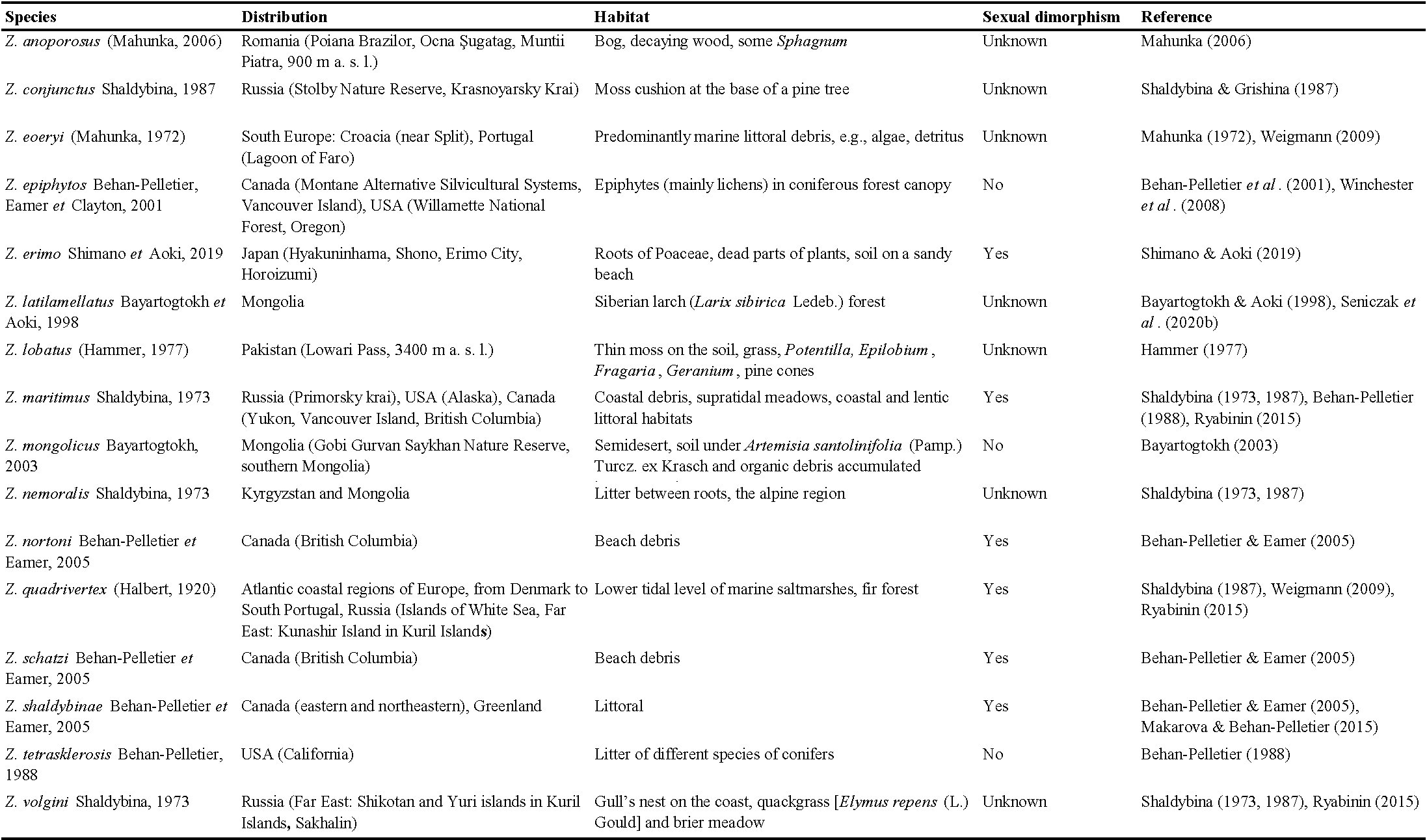

Seniczak et al. (2020d) compared selected morphological characters of adults of 15 Zachvatkinibates species and stated that the largest among them is Z. nortoni Behan-Pelletier et Eamer, 2005, and smallest is Z. anoporosus (Mahunka, 2006), and the body length of several species overlaps. These authors also compared the length of prodorsal seta in and notogastral setae, shape of translamella and some porose areas. To this list Z. erimo Shimano et Aoki, 2019 should be added. Based on this list of species, Z. svanhovdi A. Seniczak et S. Seniczak sp. nov. is the most similar to Z. quadrivertex (Halbert, 1920), but differs from it mainly by the shape of notogastral setae, posterior tectum of notogaster and lack of postanal porose area Ap, which in Z. quadrivertex is present. In Z. svanhovdi, most notogastral setae are distally pliable, whereas in Z. quadrivertex they are not. In both species, the posterior tectum of notogaster is broken in the middle, the ends are rounded, but in Z. svanhovdi they overlap, whereas in Z. quadrivertex they are separated by a certain distance. In Z. svanhovdi, lyrifissures ips and ih are placed at larger distances from seta p than in Z. quadrivertex. Moreover, in female of Z. svanhovdi porose area Aa is located between setae la and lm (vs. anteromedial to seta la in Z. quadrivertex), and porose areas A2 and A3 are as large as A1, whereas in Z. quadrivertex they are smaller than A1. In some males of Z. svanhovdi, the porose areas Aa are larger than in Z. quadrivertex. In the diagnosis for Zachvatkinibates by Behan-Pelletier & Eamer (2005), postanal porose area Ap is present, but Z. svanhovdi has no porose area, so the diagnosis for this genus should be changed to ''postanal porose area Ap present or absent''.

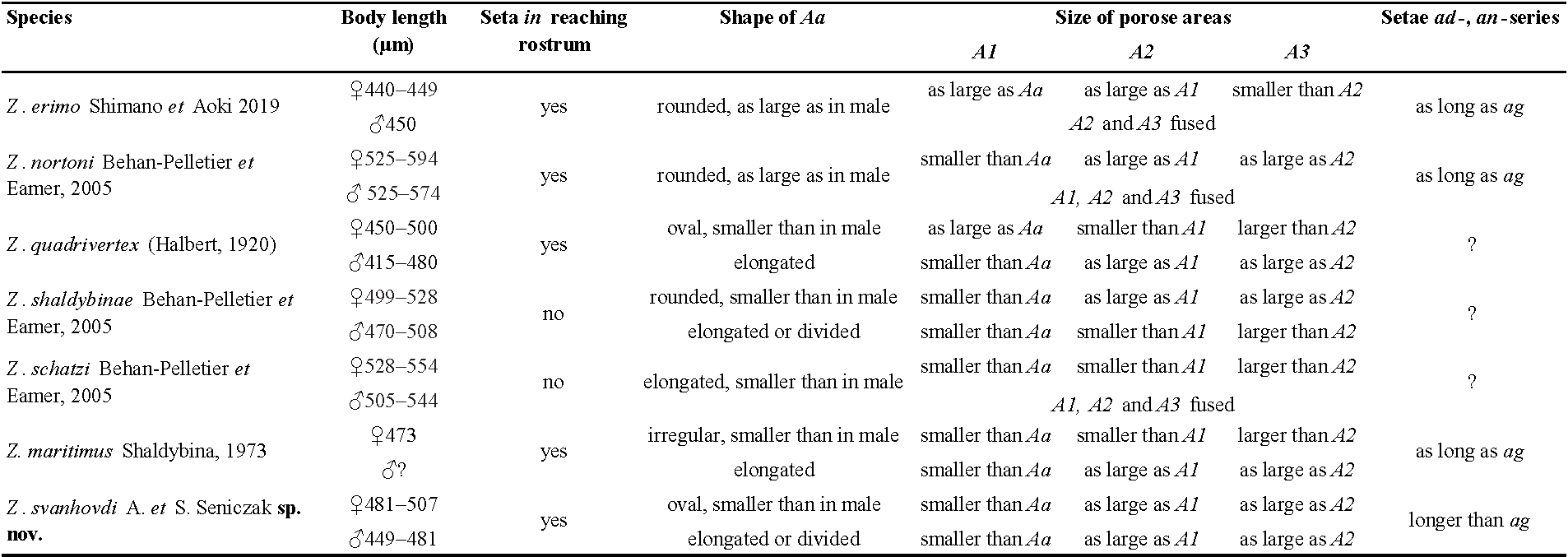

In Z. svanhovdi, sexual dimorphism is observed in the body size and octotaxic system (Table 2). Males are slightly smaller than females, have larger porose areas, and Aa can be divided in two parts (vs. in females it is uniform). In six other species of Zachvatkinibates, sexual dimorphism is more distinct than in Z. svanhovdi (Table 2). Interestingly, the species listed in Table 2 seem to be correlated with littoral habitats of cold climate zones (Behan-Pelletier & Eamer 2010, Behan-Pelletier 2015).

The adult of Z. svanhovdi has the dorsal crest on tarsus I, as other species of Zachvatkinibates (Shaldybina & Grishina 1987, Behan-Pelletier 1988, Bayartogtokh & Aoki 1998, Behan-Pelletier & Eamer 2005, Seniczak et al. 2020d). In Minunthozetes Hull, 1916, the leg crests are better developed than in Zachvatkinibates and occur on part of tibiae and tarsi I, II and IV (Seniczak & Seniczak 2018, Seniczak et al. 2018) and may suggest close relationship of Zachvatkinibates with Minunthozetes. In other genera of Punctoribatidae such as Mycobates Hull, 1916 and Punctoribates Berlese, 1908, the leg crests on tibiae and tarsi are absent (Seniczak & Seniczak 2008, Seniczak et al. 2015, 2020c). The latter two genera have dorsal projection on tibia II, which in Zachvatkinibates and Minunthozetes is absent.

Based on the checklists of Oribatida of Norway (Mehl 1979), Sweden (Lundqvist 1987), and Finland (Niemi et al. 1997), and other publications listed in Seniczak and Seniczak (2020) and Seniczak et al. (2020a,b, 2021), Z. svanhovdi represents the first finding of Zachvatkinibates in Norway and Fennoscandia. Species of Zachvatkinibates are known from Central and Eastern Asia, Northern America, and only few from Europe (Table 4). Their ecology varies a lot. For example, six species inhabit littoral zone and beach debris, other were found in bogs, forests, including forest canopy, and even in the debris in the alpine zone (Table 4).

Comments on Punctoribatidae in Fennoscandia and new record of Mycobates carli

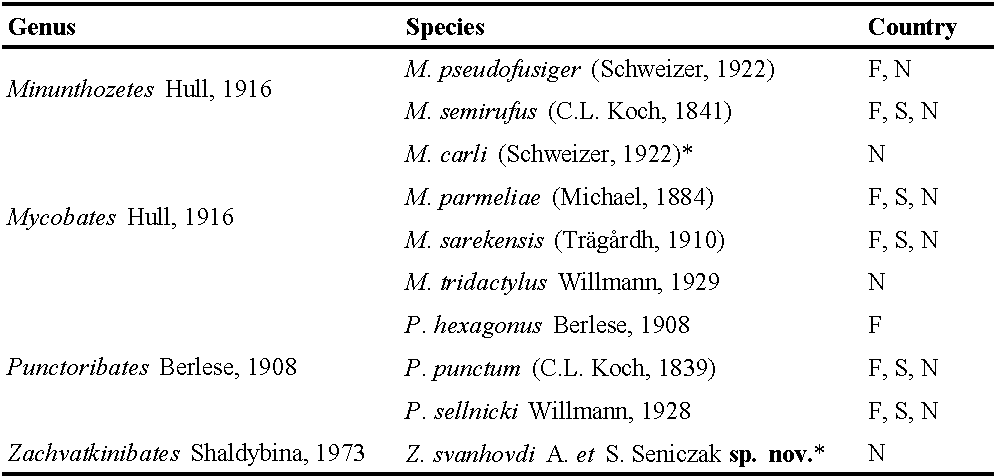

The family Punctoribatidae to which Zachvatkinibates belongs to is represented in Fennoscandia by four genera and ten nominative species, including Mycobates carli (Schweizer, 1922) which is reported here as new to Norway and Scandinavian part of Fennoscandia (Table 3). It was found in alpine tundra in Finse (Vestland, Western Norway, 60°35′14.0″N 7°30′50.2″E, 1228 m a. s. l., 06.08.2022, leg. Anna Seniczak), on forest floor with mosses and lichens. The description of climatic conditions in Finse was given earlier (Seniczak & Seniczak 2021). This species was represented in the sample only by few adults, (density 10 individuals per 500 cm³), and co-occurred with more abundant M. sarekensis (Trägårdh, 1910).

Mycobates carli has been mostly considered a southern European (Subías 2004, 2022), European (Weigmann 2006) or Eurosiberian species (Honciuc 1993), known especially from the Central, Southern, Eastern, and South-Eastern parts of Europe. It has been reported from numerous localities in the Alps (Fischer & Schatz 2020, Schatz & Bruckner 2021), the Giant Mountains (Materna 2000, Starý 2006, Miko 2013), Carpathian Mts. (Nae & Băncilă 2017, Skubała & Maslak 2009), and is also known from Caucasus Mts. (Schatz & Bruckner 2021).

In the north of Europe it has only been reported from plain tundra of the Kola Peninsula (Leonov & Rakhleeva 2015). It is considered subalpine and alpine (Weigmann 2006, Fischer & Schatz 2007), predominantly lichenocolous (Materna 2000), and muscicolous (Schatz & Bruckner 2021). It has been found in a peatland, 870 m a. s. l. (Starý 2006), at dry limestone plateau, 550 m a. s. l. (Lazarus & Krisper 2014), and in soils polluted with heavy metals in Romania, where it was associated with Cu, As and Mn (Manu et al. 2019). Most often it has been collected from soil or ground vegetation, but has been also reported from the unique microhabitat of the intermediate layer between the base of the soil and the bedrock, called ''mesovoid shallow substratum'' (Nae & Băncilă 2017) and from decaying wood (Skubała & Maslak 2009).

Acknowledgements

We thank the anonymous reviewers for helpful comments and suggestions that improved the quality of this paper. We also express our gratitude to Dr. Arne Fjellberg for collection of the sample that contained the specimens. Further, we would like to thank Juho Vuolteenaho for assistance with field work. The study was supported by the grant to NIBIO from the Norwegian Taxonomy Initiative (Grant No. 9-21, 70184244). The DNA sequencing was financed by Norwegian Barcode of Life (NorBOL).
