Contribution to the knowledge of oribatid mites of the genus Austrocarabodes (Acari, Oribatida, Carabodidae) of Madagascar

Ermilov, Sergey G.1 and Starý, Josef2

1✉ Institute of Environmental and Agricultural Biology (X-BIO), Tyumen State University, Tyumen, Russia.
2Biology Centre v.v.i., Czech Academy of Sciences, Institute of Soil Biology, České Budějovice, Czech Republic.

2020 - Volume: 60 Issue: 2 pages: 353-370

DOI: 10.24349/acarologia/20204373
ZooBank LSID: EE774540-B219-471F-9B45-90741B34D35D

Original research

Keywords

carabodid mites systematics morphology Ethiopian region

Abstract

This work includes taxonomic and faunistic data on carabodid mites (Oribatida, Carabodidae) collected from the Montagne d'Ambre National Park, North Madagascar. A new species of the genus Austrocarabodes is described; A. madagascarensis n. sp. differs from A. similis and A. spathulatus by the presence of foveolae on the body surface. Supplementary descriptions of Austrocarabodes parapustulatus Mahunka, 2009 and A. planisetus Mahunka and Mahunka-Papp, 2011 which were originally described from Madagascar, are presented. The species Austrocarabodes spathulatus Mahunka, 1978 is recorded in Madagascar for the first time.


Introduction

This work is based on oribatid mite (Acari, Oribatida) material, which was collected from the Montagne d'Ambre National Park (Madagascar), and includes data on the family Carabodidae. In the course of taxonomic identification we found four carabodid species, all representatives belonging to the genus Austrocarabodes Hammer, 1966 (the nominative subgenus); of these, one species is new to science. The primary goal of our paper is to describe and illustrate a new species under the name Austrocarabodes madagascarensis n. sp. and to present supplementary descriptions of two other Madagascar species, Austrocarabodes parapustulatus Mahunka, 2009 and A. planisetus Mahunka and Mahunka-Papp, 2011, adding new figures, SEM micrographs and information about some morphological structures and their measurements, identification of leg setae and solenidia and gnathosoma, which will assist with identification of these species in future.

Austrocarabodes was proposed by Hammer (1966) with Carabodes ensifer Sellnick, 1931 as type species. The genus comprises five subgenera and 96 species, which have a cosmopolitan distribution (Subías 2020). The nominative subgenus is largest, including 78 species (Subías 2020). The main subgeneric traits of A. (Austrocarabodes) were summarized by Hammer (1966), Mahunka (1986), Hugo (2008), and Hugo-Coetzee (2011). Identification keys for selective species of Austrocarabodes were presented by Balogh and Balogh (1988, 2002), Mahunka (2009), Hugo-Coetzee (2011), and Ermilov and Tolstikov (2015).

At present, 10 species of A. (Austrocarabodes) have been recorded in Madagascar (Balogh 1960, 1962; Mahunka 1993, 1996, 2009, 2011; Mahunka and Mahunka-Papp 2011): A. albidus (Balogh, 1960), A. blancharti Mahunka, 2009, A. cellularis (Balogh, 1962), A. lateoalveolatus Mahunka, 2009, A. lunaris (Balogh, 1962), A. mixtus Mahunka, 1996, A. parapustulatus, A. planisetus, A. pustuloreticulatus Mahunka, 2009, and A. semilunatus Mahunka, 2011. All listed species are known only from this island (possibly, they are endemics).

Materials and methods

The studied carabodid mites were collected in the Montagne d'Ambre National Park, North Madagascar during long-term official cooperation between the Moravian Museum in Brno (Czech Republic) and Université d'Antananarivo (Madagascar) in 2010–2014.

Specimens (all were studied and measured) were mounted in lactic acid on temporary cavity slides for measurement and illustration. Body length was measured in lateral view, from the tip of the rostrum to the posterior edge of the notogaster. Notogastral width refers to the maximum width of the notogaster in dorsal view. Lengths of body setae were measured in lateral aspect. All body measurements are presented in micrometers. Formulas for leg setation are given in parentheses according to the sequence trochanter-femur-genu-tibia-tarsus (famulus included). Formulas for leg solenidia are given in square brackets according to the sequence genu-tibia-tarsus.

Drawings were made with a camera lucida using a Leica transmission light microscope ''Leica DM 2500''. SEM micrographs were made with the aid of a JEOL–JSM-6510LV SEM microscope.

Morphological terminology used in this paper follows that of F. Grandjean: see Travé & Vachon (1975) for references, Norton (1977) for leg setal nomenclature, and Norton & Behan-Pelletier (2009), for overview.

The following abbreviations are used: lam = lamella; tlam = translamella; tu = tutorium; ro, le, in, bs, ex = rostral, lamellar, interlamellar, bothridial and exobothridial setae, respectively; bo = bothridium; hp = humeral process; c, da, dm, dp, la, lm, lp, h, p = notogastral setae; ia, im, ip, ih, ips = notogastral lyrifissures; gla = opisthonotal gland opening; a, m, h = subcapitular setae; v, l, d, cm, acm, ul, sul, vt, lt = palp setae; ω = palp and leg solenidion; cha, chb = cheliceral setae; Tg = Trägårdh's organ; PdI, PdII = pedotecta I and II, respectively; dis = discidium; cvr = circumventral ridge; 1a, 1b, 1c, 2a, 3a, 3b, 3c, 4a, 4b, 4c = epimeral setae; AP = anal plate; g, ag, an, ad = genital, aggenital, anal and adanal setae, respectively; iad = adanal lyrifissure; po = preanal organ; Tr, Fe, Ge, Ti, Ta = leg trochanter, femur, genu, tibia and tarsus, respectively; pa = porose area; σ, φ = leg solenidia; ɛ = leg famulus; v, ev, bv, l, d, ft, tc, it, p, u, a, s, pv = leg setae.

Systematics

Superfamily Carabodoidea

Family Carabodidae

Genus Austrocarabodes Hammer, 1966

Type species Carabodes ensifer Sellnick, 1931

Austrocarabodes (Austrocarabodes) madagascarensis n. sp.

ZOOBANK: 7D4632FA-7DF3-411C-B137-ABE2DE2DE0DF

(Figures 1–4)

Figure 1. Austrocarabodes madagascarensis n. sp., adult: a – dorsal view; b – ventral view (legs omitted); c – lateral view (gnathosoma and legs omitted). Scale bar 100 μm.

Diagnosis — Body size: 381–448 × 215–265. Body with dense cerotegumental microridges. Notogaster sparsely foveolate, specific rows and congestions of foveolae also presented on prodorsum and in anogenital region. Translamella absent. Tutoria with tip curved medially. Rostral setae phylliform, dilated mediodistally, erect, lamellar setae narrowly phylliform, with spines and barbs, interlamellar setae narrowly phylliform, barbed; all setae comparatively long, barbed, in longest. Bothridial setae unilaterally dilated and spinose. Notogastral setae comparatively long (posterior setae shorter), narrowly phylliform, with short attenuate tips, barbed. Epimeral setae 1a, 1c, 2a and 3a minute, others longer, setiform, slightly barbed. Genital, aggenital and adanal setae setiform, slightly barbed. Anal setae short, setiform, erect, roughened. Lateral phylliform seta l'' presented only on genua I, II.

Description — Measurements – Species of medium size. Body length: 448 (holotype: female), 381–448 (15 paratypes, all females); notogaster width: 265 (holotype), 215–265 (15 paratypes). Body ratio (length/width): 1.6–1.8.

Integument (Figs 1a-c, 2a-d, 3a, 3c, 3d, 4a-d) – Body color brown to dark brown. Body covered by thick layer of gel-like cerotegument and cerotegumental microridges and some microgranules. Body surface partially microtuberculate. In addition, notogaster sparsely foveolate, foveolae (their diameter up to 8) also partially presented on prodorsum (in basal part and as one pair of longitudinal rows in inner parts of lamellae), on lateral sides of prodorsum (between lamellae and tutoria and on tutoria), in anterolateral parts of ventral plate (pedotecta I and regions close to subcapitular mentum), in anogenital region (posterior and lateral to genital aperture, anterior and lateral to anal aperture, and as one row close to circumventral ridge), and on antiaxial sides of all leg femora and of trochanters III, IV. Epimeral region with some muscle sigillae.

Figure 2. Austrocarabodes madagascarensis n. sp., adult: a – leg I, left, paraxial view; b – femur, genu and tibia of leg II, right, antiaxial view; c – leg III, without tarsus, left, antiaxial view; d – leg IV, left, antiaxial view; e – subcapitulum, ventral view; f – palp, right, antiaxial view; g – chelicera, right, antiaxial view. Scale bar 20 μm (a–e; g), scale bar 10 μm (f).

Prodorsum (Figs 1a-c, 3a, 3c, 3d, 4a, 4c, 4d, 4g) – Rostrum broadly rounded. Lamellae long (slightly shorter than prodorsum), with distal triangular projection. Translamella not observed. Tutoria long, ridge-like, with tip clearly curved medially. With elongate depression (separated by transverse ridge) between lamellae and tutoria, and one depression ventrally to tutoria. Rostral setae (32–36) phylliform, dilated mediodistally, erect, barbed, inserted on tubercles. Lamellar setae (36–41) narrowly phylliform, with strong spines and small barbs, directed anteromedial. Interlamellar setae (65–77) narrowly phylliform, barbed, directed lateral. Bothridial setae (32–41) with elongate, unilaterally dilated and heavily spinose heads (sometimes setae appear clavate in dorsal view). Bothridia slightly interrupted ventrally, with inner tooth. Exobothridial setae vestigial.

Figure 3. Austrocarabodes madagascarensis n. sp., adult, SEM micrographs: a – dorsal view; b – ventral view; c – lateral view; d – rostral and lamellar setae and distal part of lamella, dorsoanterior view. Scale bar 100 μm (a–c), scale bar 20 μm (d).

Notogaster (Figs 1a, 1c, 3a, 3c, 4a, 4b, 4d, 4h) – Anterior notogastral margin slightly convex medially. Humeral processes poorly developed. Fourteen pairs of notogastral setae (p1p3, h3, 28–30; others 49–61) narrowly phylliform, with short attenuate tips, barbed. Lyrifissures and opisthonotal gland openings distinct.

Gnathosoma (Figs 2e-g, 4f, 4g) – Subcapitulum longer than wide (90–98 × 73–77). Subcapitular setae (12) setiform, roughened. Postpalpal setae (8) bacilliform, slightly barbed mediodistally. Palps (49–53) with setation 0–2–1–3–9(+ω). Solenidion of palptarsi long, bacilliform. Chelicerae (98–106) with two setiform, barbed setae (cha, 36; chb, 12). Trägårdh's organ of chelicerae elongate triangular.

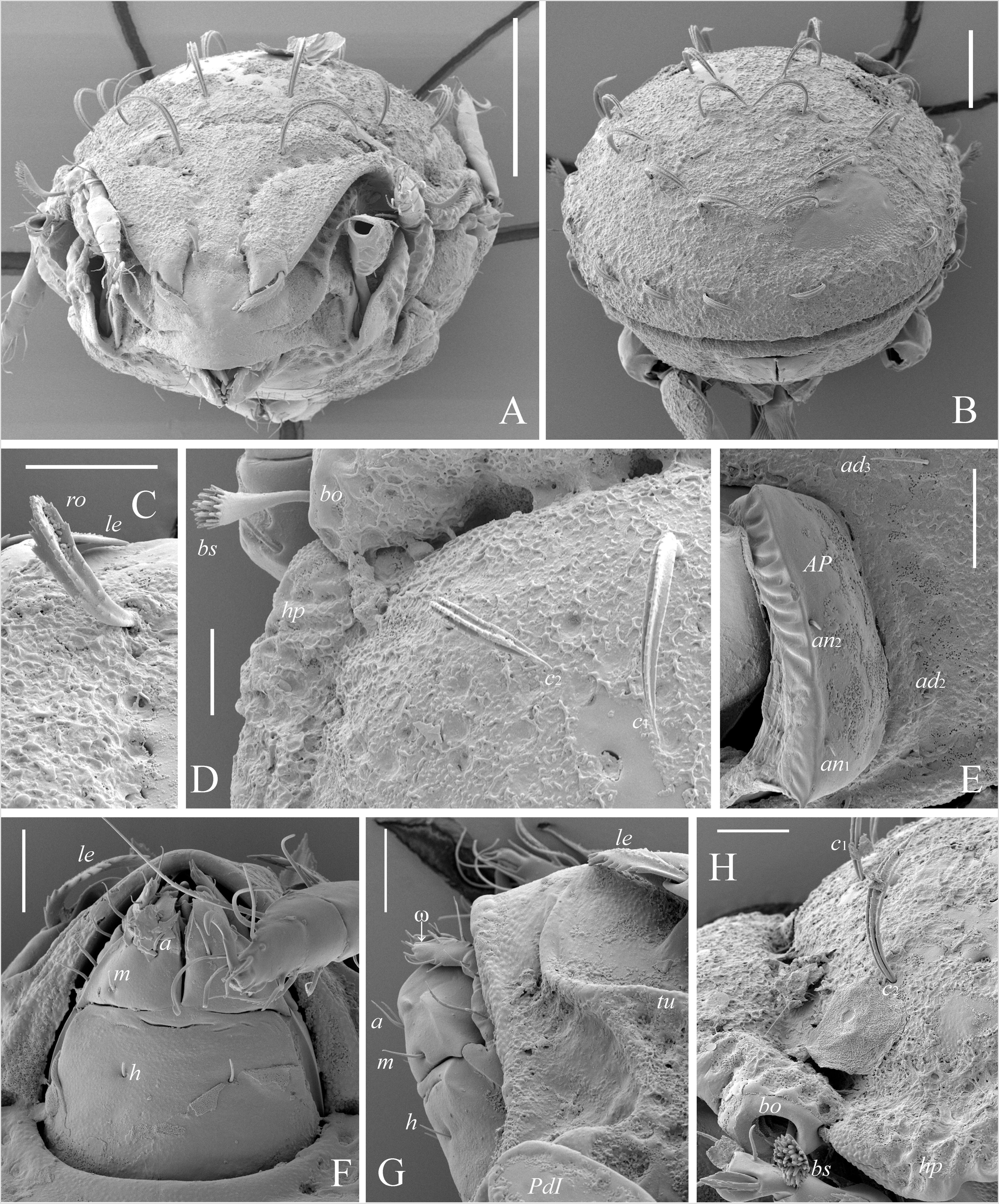

Figure 4. Austrocarabodes madagascarensis n. sp., adult, SEM micrographs: a – anterior view; b – posterior view; c – rostral seta; d – bothridial seta, humeral process, some notogastral setae and part of sejugal region, dorsal view; e – part of anoadanal region; f – gnathosoma, ventral view; g – gnathosoma and anterolateral part of prodorsum, lateral view; h – bothridial seta, bothridium, humeral process, some notogastral setae and sejugal region, lateral view. Scale bar 100 μm (a), scale bar 50 μm (b), scale bar 20 μm (c–h).

Lateral podosomal and epimeral regions (Figs 1b, 1с, 3b, 3c, 4g) – Pedotecta II trapezoid in ventral view. Discidia triangular, rounded distally. With typical epimeral setation 3–1–3–3. Epimeral setae 1a, 1c, 2a and 3a short (4–6), setiform, smooth, 1b, 3b, 3c, 4a, 4b and 4b (28–32) setiform, slightly barbed.

Anogenital region (Figs 1b, 1c, 3b, 3c, 4b, 4f) – With one pair of short, longitudinal ridges lateral to genital aperture and posterior to epimere IV. Four pairs of genital (14–16), one pair of aggenital (14–18) and three pairs of adanal (14–18) setae setiform, slightly barbed. Two pairs of anal setae (6–8) setiform, erect, roughened. Adanal lyrifissures visible, removed from anal aperture and located anterolateral to adanal setae ad3. Circumventral ridge developed.

Legs (Figs 2a-d, 3b, 3c) – Claw of each leg strong, sparsely barbed dorsally and with tooth ventrobasally. One porose area on all femora distinct, porose areas on trochanters III, IV not observed. Formulas of leg setation and solenidia: I (1–4–3–4–16) [1–2–2], II (1–4–3–3–15) [1–1–2], III (2–3–1–2–15) [1–1–0], IV (1–2–2–2–11) [0–1–0]; homology of setae and solenidia indicated in Table 1. Famulus of tarsi I short, erect, blunt-ended. Solenidion φ1 on tibiae I very long, setiform; other solenidia shorter, thickened, blunt-ended to bacilliform. Seta l'' on femora I, II and l' on femora III and genua III thickened, seta l'' on genua I, II phylliform.

Table 1. Leg setation and solenidia of adult Austrocarabodes madagascarensis n. sp., A. parapustulatus Mahunka, 2009 and A. planisetus Mahunka and Mahunka-Papp, 2011.

Material examined — Holotype (female) and 15 paratypes (15 females): North Madagascar, Montagne d'Ambre National Park, circuit Ampijoroana, evergreen rain forest, 12°31'28'`S, 49°09'52''E, 950 m a.s.l., sifting of leaf litter sample under big unidentified tree, Winkler apparatus extraction, 13.I.2014 (R. Ravebolun and L. Rabotenoson).

Type deposition — The holotype and three paratypes are deposited in the collection of the Senckenberg Institute, Görlitz, Germany. Twelve paratypes are deposited in the collection of the Tyumen State University Museum of Zoology, Tyumen, Russia. All specimens are preserved in ethanol with a drop of glycerol.

Etymology — The name of the new species, madagascarensis, refers to the place of origin, Madagascar.

Remarks — In the presence of dilated mediodistally rostral setae and long, narrowly phylliform (with short attenuate tips) notogastral setae, Austrocarabodes madagascarensis n. sp. is morphologically most similar to Austrocarabodes similis Mahunka, 1978 from Mauritius and A. spathulatus Mahunka, 1978 from Réunion, but differs from both by the presence of foveolae on the body surface (versus foveolae completely absent).

Austrocarabodes (Austrocarabodes) parapustulatus Mahunka, 2009

(Figures 5–7)

Supplementary description — Measurements – Species of medium size. Body length: 464–531 (10 specimens, all females); notogaster width: 215–249 (10 specimens). Species distinctly elongated, body ratio (length/width): 2.0–2.3.

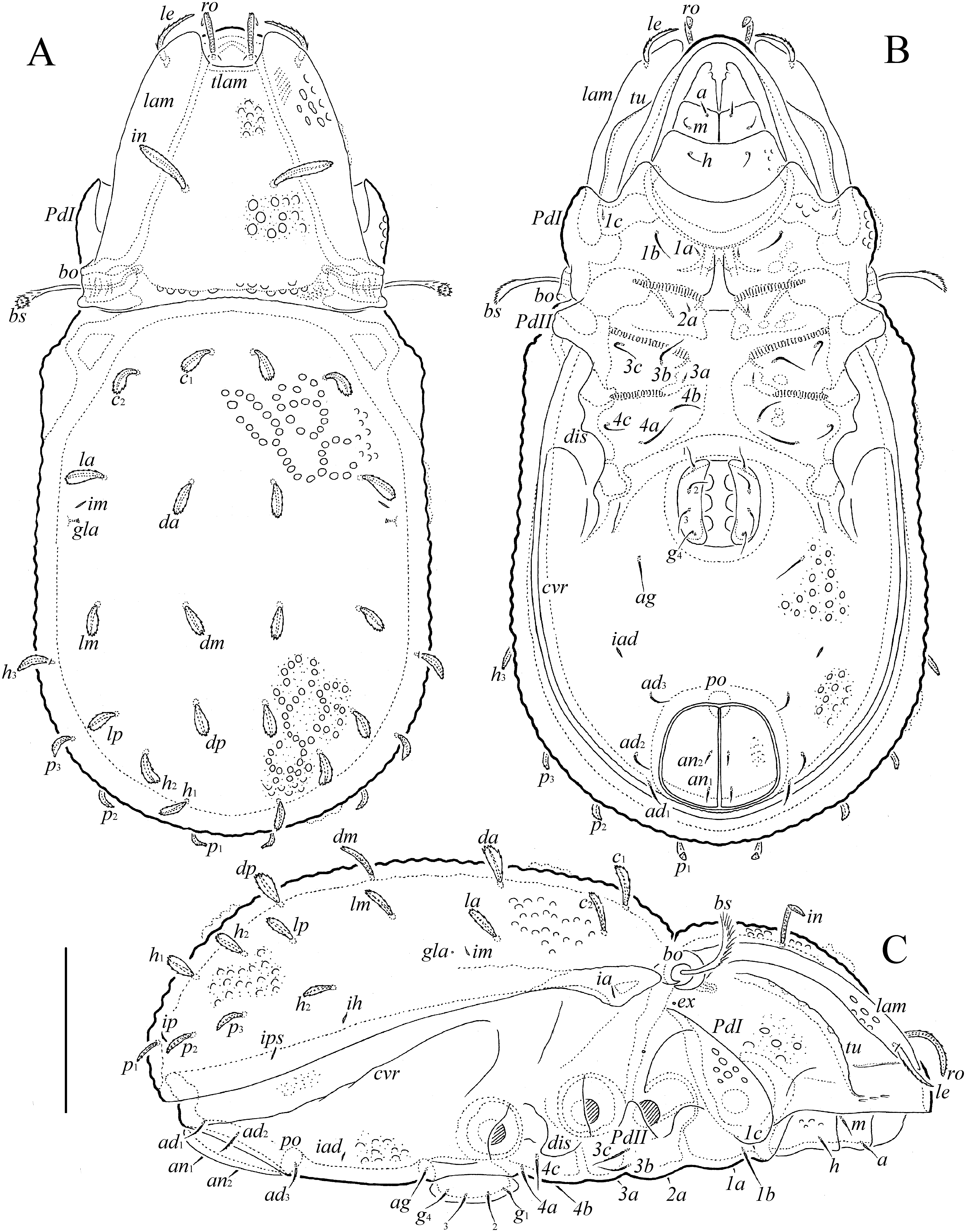

Figure 5. Austrocarabodes parapustulatus Mahunka, 2009, adult: a – dorsal view; b – ventral view (legs omitted); c – lateral view (legs omitted). Scale bar 100 μm.

Integument (Figs 5a-c, 6a-d, 7a-e) – Body color light brown to brown. Body covered by thick layer of gel-like cerotegument and cerotegumental microgranules. Body surface partially punctate. In addition, prodorsum (between lamellae) and notogaster tuberculate, tubercles (their diameter up to 8) partially forming polygonal ornamentation on the notogaster; anogenital region (except median part), subcapitular mentum, dorsolateral (bothridia, lateral parts of lamellae) and lateral (between lamellae and tutoria and on tutoria) sides of prodorsum, anterolateral parts of ventral plate (pedotecta I and regions close to subcapitular mentum), and antiaxial sides of all leg femora and of trochanters III, IV foveolate (diameter of foveolae up to 8). Epimeral region with some muscle sigillae.

Figure 6. Austrocarabodes parapustulatus Mahunka, 2009, adult, SEM micrographs: a – dorsal view; b – ventral view; c – lateral view; d – rostral and lamellar setae and distal part of lamella, dorsoanterior view. Scale bar 100 μm (a–c), scale bar 20 μm (d).

Prodorsum (Figs 5a-c, 6a-d, 7a, 7c, 7e) – Rostrum broadly rounded. Lamellae long (slightly shorter than prodorsum), rounded distally. Translamella developed. Tutoria long, ridge-like. With elongate depression (separated by transverse ridge) between lamellae and tutoria, and one depression ventrally to tutoria. Rostral (41–45) and interlamellar (41–45) setae narrowly phylliform, barbed; ro inserted on tubercles located anterior to translamella, directed forward, in directed lateral. Lamellar setae (41–45) narrowly phylliform, with strong spines and small barbs, directed anteromedial. Bothridial setae (45–53) with elongate, unilaterally dilated and heavily spinose heads (sometimes setae appear clavate in dorsal view). Bothridia slightly interrupted ventrally, with inner tooth. Exobothridial setae represented by alveoli.

Figure 7. Austrocarabodes parapustulatus Mahunka, 2009, adult, SEM micrographs: a – dorsoanterior view; b – dorsoposterior view; c – bothridial seta and humeral process, dorsal view; d – some notogastral setae, dorsal view; e – bothridial seta, bothridium, humeral process, some notogastral setae and sejugal region, lateral view. Scale bar 100 μm (a, b), scale bar 20 μm (c–e).

Notogaster (Figs 5a, 5c, 6a, 6c, 7a-e) – Anterior notogastral margin straight. Humeral processes poorly developed. Fourteen pairs of notogastral setae (p1p3, h3, 16–20; others 20–28) phylliform, dilated mediodistally, barbed. Lyrifissures and opisthonotal gland openings distinct.

Gnathosoma (Figs 5b, 5c, 6b, 6c) – Generally, similar to Austrocarabodes madagascarensis n. sp. Subcapitulum longer than wide (94–102 × 82–86). Subcapitular setae (12) setiform, roughened. Postpalpal setae (8) bacilliform, slightly barbed mediodistally. Palps (53–57) with setation 0–2–1–3–9(+ω). Solenidion of palptarsi long, bacilliform. Chelicerae (106–114) with two setiform, barbed setae (cha, 36–41; chb, 12–16). Trägårdh's organ of chelicerae elongate triangular.

Lateral podosomal and epimeral regions (Figs 5b, 5с, 6b, 6c) – Pedotecta II trapezoid in ventral view. Discidia triangular, rounded distally. With typical epimeral setation 3–1–3–3. Epimeral setae 1a, 1c, 2a and 3a short (4–6), setiform, smooth, 1b, 3b, 3c, 4a, 4b and 4b (28–36) setiform, slightly barbed.

Anogenital region (Figs 5b, 5c, 6b, 6c, 7b) – With one pair of short, longitudinal ridges lateral to genital aperture and posterior to epimere IV. Four pairs of genital (20), one pair of aggenital (20) and three pairs of adanal (14–16) setae setiform, slightly barbed. Two pairs of anal setae (8–12) setiform, erect, roughened. Adanal lyrifissures visible, removed from anal aperture and located anterolateral to adanal setae ad3. Circumventral ridge developed.

Legs (Figs 6b, 6c) – Generally, similar to Austrocarabodes madagascarensis n. sp. (Table 1), but seta l'' on femora I, II and genua I, II, and seta l' on femora III and genua III, IV phylliform.

Material examined — Ten specimens (10 females): North Madagascar, Montagne d'Ambre National Park, circuit Ampijoroana, evergreen rain forest, 12°31'28'`S, 49°09'52''E, 950 m a.s.l., sifting of leaf litter sample under big unidentified tree, Winkler apparatus extraction, 13.I.2014 (R. Ravebolun and L. Rabotenoson).

Material deposition — All specimens (preserved in ethanol with a drop of glycerol) are deposited in the collection of the Tyumen State University Museum of Zoology, Tyumen, Russia.

Remarks — Our specimens of A. parapustulatus from Madagascar are similar in general appearance to those according to the original description (Mahunka 2009). However, we observed the following:

• 1) Region between lamellae completely tuberculate in our specimens (versus tubercles presented only mediobasally in the original description). We believe this difference represent intraspecific variability.

• 2) Mahunka (2009) noted, that ''...ventral plate smooth...'' (p. 105), but his Figure 31 (p. 106) shows the presence of rounded structures in the anogenital region. We confirm that the anogenital region of the species is indeed foveolate (not smooth).

Thus, based on the supplementary description and original description (Mahunka 2009), the diagnosis for A. parapustulatus is as follows:

Body size: 439–531 × 208–249, species distinctly elongated. Prodorsum and notogaster (partially forming polygonal ornamentation) tuberculate, anogenital region foveolate. Translamella present. Rostral and interlamellar setae narrowly phylliform, barbed, lamellar setae narrowly phylliform, with spines and barbs; all setae comparatively long, similar in length, barbed, ro inserted anterior to translamella. Bothridial setae unilaterally dilated and spinose. Notogastral setae comparatively short (posterior setae shortest), phylliform, dilated mediodistally, barbed. Epimeral setae 1a, 1c, 2a and 3a minute, others longer, setiform, slightly barbed. Genital, aggenital and adanal setae setiform, slightly barbed. Anal setae short, setiform, erect, roughened. Lateral phylliform seta l'' presented on femora I, II and genua I, II, l' on femora III and genua III, IV.

Austrocarabodes (Austrocarabodes) planisetus Mahunka and Mahunka-Papp, 2011

(Figures 8–10)

Supplementary description — Measurements – Species of medium size. Body length: 464–514 (seven specimens, two males and five females); notogaster width: 249–298 (seven specimens). Body ratio (length/width): 1.7–1.8.

Figure 8. Austrocarabodes planisetus Mahunka and Mahunka-Papp, 2011, adult: a – dorsal view; b – ventral view (legs omitted); c – lateral view (legs omitted). Scale bar 100 μm.

Integument (Figs 8a-c, 9a-d, 10a, 10b, 10d, 10f) – Body color light brown to brown. Body covered by thick layer of gel-like cerotegument and cerotegumental microridges and some microgranules. Prodorsum (between lamellae), notogaster, epimeres (poorly visible under light microscope) and anogenital region densely tuberculate (diameter of tubercles up to 8); subcapitular mentum, lateral sides of prodorsum (between lamellae and tutoria and on tutoria), anterolateral parts of ventral plate (pedotecta I and regions close to subcapitular mentum), and antiaxial sides of all leg femora and of trochanters III, IV foveolate (diameter of foveolae up to 8). Epimeral region with some muscle sigillae.

Figure 9. Austrocarabodes planisetus Mahunka and Mahunka-Papp, 2011, adult, SEM micrographs: a – dorsal view; b – ventral view; c – lateral view; d – rostral, lamellar and interlamellar setae, dorsal view. Scale bar 100 μm (a–c), scale bar 50 μm (d).

Prodorsum (Figs 8a-c, 9a-d, 10a-d) – Rostrum broadly rounded. Lamellae long (slightly shorter than prodorsum), rounded distally. Translamella slightly developed. Tutoria long, ridge-like. With elongate depression (separated by transverse ridge) between lamellae and tutoria, and one depression ventrally to tutoria. Rostral setae (49–53) weakly phylliform, erect, barbed, inserted on tubercles located on translamella. Lamellar setae (49–53) narrowly phylliform, with strong spines and small barbs, directed anteromedial. Interlamellar setae (49–53) narrowly phylliform, barbed, in directed lateral. Bothridial setae (49–53) with elongate, unilaterally dilated and heavily spinose heads (sometimes setae appear clavate in dorsal view). Bothridia slightly interrupted ventrally, with inner tooth. Exobothridial setae represented by alveoli.

Figure 10. Austrocarabodes planisetus Mahunka and Mahunka-Papp, 2011, adult, SEM micrographs: a – dorsoanterior view; b – interlamellar and bothridial and some notogastral setae, dorsoanterior view; c – bothridial seta and notogastral seta, dorsal view; d – anterior part of body, ventral view; e – gnathosoma and medioanterior part of leg tarsus I, lateral view; f – part of anoadanal region. Scale bar 100 μm (a), scale bar 50 μm (d), scale bar 20 μm (b, c, e, f).

Notogaster (Figs 8a, 8c, 9a, 9c, 10a-c) – Anterior notogastral margin slightly convex medially. Humeral processes poorly developed. Fourteen pairs of notogastral setae (p1p3, h1h3, 24–32; others 36–45) narrowly phylliform, barbed. Lyrifissures and opisthonotal gland openings distinct.

Gnathosoma (Figs 8b, 8c, 9b, 9c) – Generally, similar to Austrocarabodes madagascarensis n. sp. Subcapitulum longer than wide (106–114 × 82–86). Subcapitular setae (12–16) setiform, roughened. Postpalpal setae (10) bacilliform, slightly barbed mediodistally. Palps (57–61) with setation 0–2–1–3–9(+ω). Solenidion of palptarsi long, bacilliform. Chelicerae (131–143) with two setiform, barbed setae (cha, 45; chb, 20). Trägårdh's organ of chelicerae elongate triangular.

Lateral podosomal and epimeral regions (Figs 8b, 8с, 9b, 9c, 10d) – Pedotecta II trapezoid in ventral view. Discidia triangular, rounded distally. With typical epimeral setation 3–1–3–3. Epimeral setae 1a, 1c, 2a and 3a (16–20) shorter than 3b, 3c and 4a (24–28) and 1b, 4b and 4b (32–36), all setiform, slightly barbed.

Anogenital region (Figs 8b, 8c, 9b, 9c, 10f) – With one pair of short, longitudinal ridges lateral to genital aperture and posterior to epimere IV. Four pairs of genital (24–28) and one pair of aggenital (28) setae setiform, slightly barbed. Three pairs of adanal setae (24–36) weakly phylliform, barbed. Two pairs of anal setae (20–24) setiform, erect, slightly barbed. Adanal lyrifissures visible, removed from anal aperture and located anterolateral to adanal setae ad3. Circumventral ridge developed.

Legs (Figs 9b, 9c, 10a) – Generally, similar to Austrocarabodes madagascarensis n. sp. (Table 1).

Material examined — Seven specimens (two males and five females): North Madagascar, Montagne d'Ambre National Park, circuit Ampijoroana, evergreen rain forest, 12°31'28'`S, 49°09'52''E, 950 m a.s.l., sifting of leaf litter sample under big unidentified tree, Winkler apparatus extraction, 13.I.2014 (R. Ravebolun and L. Rabotenoson).

Material deposition — All specimens (preserved in ethanol with a drop of glycerol) are deposited in the collection of the Tyumen State University Museum of Zoology, Tyumen, Russia.

Remarks – Our specimens of A. planisetus from Madagascar are similar in general appearance to those according to the original description (Mahunka and Mahunka-Papp, 2011). However, some differences were observed:

• 1) Mahunka and Mahunka-Papp (2011) noted, that ''...epimeral surface smooth...'' (p. 130). We studied our specimens under a light microscope and also found no tubercles (only some unclear tubercles were poorly visible in lateral view). However, the SEM of mites showed that epimeres are in fact densely tuberculate (Fig 9b).

• 2) Mahunka and Mahunka-Papp (2011) did not discuss surface of the anogenital region. In our specimens this region has tubercles.

Thus, based on the supplementary description and original description (Mahunka and Mahunka-Papp, 2011), the diagnosis for A. planisetus is as follows:

Body size: 421-540 × 249–346. Prodorsum, notogaster, epimeres and anogenital region densely tuberculate. Translamella present. Rostral setae weakly phylliform, erect, lamellar setae narrowly phylliform, with spines and barbs, interlamellar setae narrowly phylliform, barbed; all setae comparatively long, similar in length, barbed, ro inserted on translamella. Bothridial setae unilaterally dilated and spinose. Notogastral setae comparatively short (posterior setae shortest), narrowly phylliform, barbed. Epimeral setae 1a, 1c, 2a and 3a shortest, 4a and 4b longest, all setiform, slightly barbed. Genital and aggenital setae setiform, slightly barbed. Adanal setae weakly phylliform, barbed. Anal setae setiform, erect, slightly barbed. Lateral phylliform seta l'' present only on genua I, II.

New record

Austrocarabodes (Austrocarabodes) spathulatus Mahunka, 1978: 1 ex. (with same locality data as for above listed species). Previous known distribution: Réunion.

Acknowledgements

We thank to R. Ravebolun and L. Rabotenoson who collected soil and litter samples in Madagascar; and the Moravian Museum in Brno, Czech Republic, which kindly provided material for our study. Also, we would like to thank Dr. Lala Harivelo Ravaomanarivo Raveloson (University of Antananarivo, Faculty of Sciences, Department of Entomology), Dr. Mamy A. Rakotoarijaona (Directeur des Opérations, Madagascar National Parks, Antananarivo) and Dr. Dimby Raharinjanahary (Chargé des Bases de données de suivibiodiversité et recherche, Madagascar National Parks, Antananarivo) for supporting joint Czech-Madagascan research project (2009–2014); Alexey A. Gubin (Tyumen State University, Tyumen, Russia) for SEM micrographs; and Dr. Julia Baumann (University of Graz, Graz, Austria) and two anonymous reviewers for valuable comments. Samples collected in Madagascar were based on collection permit no. 314/13/MEF/SG/DGF/DCB.SAP/SCB by the Moravian Museum in Brno, Czech Republic; sample exportation to Czech Republic was based on permit no. 028N-EA02/MG14. The presented research was supported by Czech Academy of Sciences (Research Plan No. RVO: 60077344).

References

Balogh J. 1960. Oribates (Acari) nouveaux de Madagascar (1re série). Mém. Inst. Sci. Madagascar, Série A, 14: 7-37.

Balogh J. 1962. New oribatids from Madagascar (Acari). Ann. Hist. Nat. Mus. Nat. Hung., 54: 419-427.

Balogh J., Balogh P. 1988. Oribatid mites of the Neotropical region. I. Budapest: Elsevier Science Publishers, Amsterdam, The Netherlands and Akadémiai Kiadó. pp. 335.

Balogh J., Balogh P. 2002. Identification keys to the oribatid mites of the Extra-Holarctic regions. Vol. I. Miskolc: Well-Press Publishing Limited. pp. 453.

Ermilov S.G. and Tolstikov A.V. 2015. A new species of Austrocarabodes (Austrocarabodes) from Brazil, including keys to known species of the subgenus from the Neotropical Region and to the agressor-group (Acari, Oribatida, Carabodidae). Neot. Ent., 44(3): 264-269. doi:10.1007/s13744-015-0283-8

Hammer M. 1966. Investigations on the oribatid fauna of New Zealand. Part I. Det Kong. Dansk. Vidensk. Selsk. Biol. Skr., 15(2): 1-108.

Hugo E.A. 2008. Three new species of Austrocarabodes (Oribatida: Carabodidae) from South Africa. Zootaxa, 1844: 25-36. doi:10.11646/zootaxa.1844.1.2

Hugo-Coetzee E.A. 2011. Three new species of Austrocarabodes (Oribatida: Carabodidae) and notes on Austrocarabodes pinnatus Mahunka, 1986, from South Africa. Zootaxa, 3011: 1-15. doi:10.11646/zootaxa.3011.1.1

Mahunka S. 1978. Neue und interessante Milben aus dem Genfer Museum XXVII. A first survey of the oribatid (Acari) fauna of Mauritius, Reunion and the Seychelles I. Rev. suisse Zool., 85(1): 177-236. doi:10.5962/bhl.part.82228

Mahunka S. 1986. A survey of the family Carabodidae C.L. Koch, 1836 (Acari: Oribatida). Acta Zool. Hung., 32(1-2): 73-135.

Mahunka S. 1993. Oribatids from Madagascar I. (Acari: Oribatida). New and interesting mites from Geneva Museum LXXVI. Rev. suisse Zool., 100(2): 289-315. doi:10.5962/bhl.part.79862

Mahunka S. 1996. Oribatid mites (Acari: Oribatida) from Madagascar. II: Descriptions of six new species. Folia Ent. Hung., 57: 109-123.

Mahunka S. 2009. Oribatid mites from the Vohimana Reserve (Madagascar) (Acari: Oribatida). I. Acta Zool. Acad. Sci. Hung., 55(2): 89-122.

Mahunka S. 2011. New and little known oribatid mites from Madagascar (Acari: Oribatida), III. Opusc. Zool. Budapest, 42(1): 43-66.

Mahunka S., Mahunka-Papp L. 2011. New and little known oribatid mites from Madagascar (Acari: Oribatida), IV. Opusc. Zool. Budapest, 42(2): 125-145.

Norton R.A. 1977. A review of F. Grandjean's system of leg chaetotaxy in the Oribatei (Acari) and its application to the family Damaeidae. In: Dindal D.L. (Ed.). Biology of oribatid mites. Syracuse: SUNY College of Environmental Science and Forestry. pp. 33-61.

Norton R.A., Behan-Pelletier V.M. 2009. Oribatida. Chapter 15. In: Krantz G.W., Walter D.E. (Eds.). A Manual of Acarology. Lubbock: Texas Tech University Press. pp. 430-564.

Sellnick M. 1931. Zoologische Forschungsreise nach den Jonischen Inseln und dem Peloponnes von M. Beier, Teil 16. Acari. Sitzungsberichte der Akademie der Wissenschaften, Mathematisch-Naturwissenschaftliche Klasse, Abteilung I, Wien, 140(9-10): 693-776.

Subías L.S. 2020. Listado sistemático, sinonímico y biogeográfico de los Ácaros Oribátidos (Acariformes: Oribatida) del mundo (excepto fósiles), 15ª actualización. 527 pp. Available from: http://escalera.bio.ucm.es/usuarios/bba/cont/docs/RO_1.pdf (accessed January 2020).

Travé J., Vachon M. 1975. François Grandjean. 1882-1975 (Notice biographique et bibliographique). Acarologia, 17(1): 1-19.
